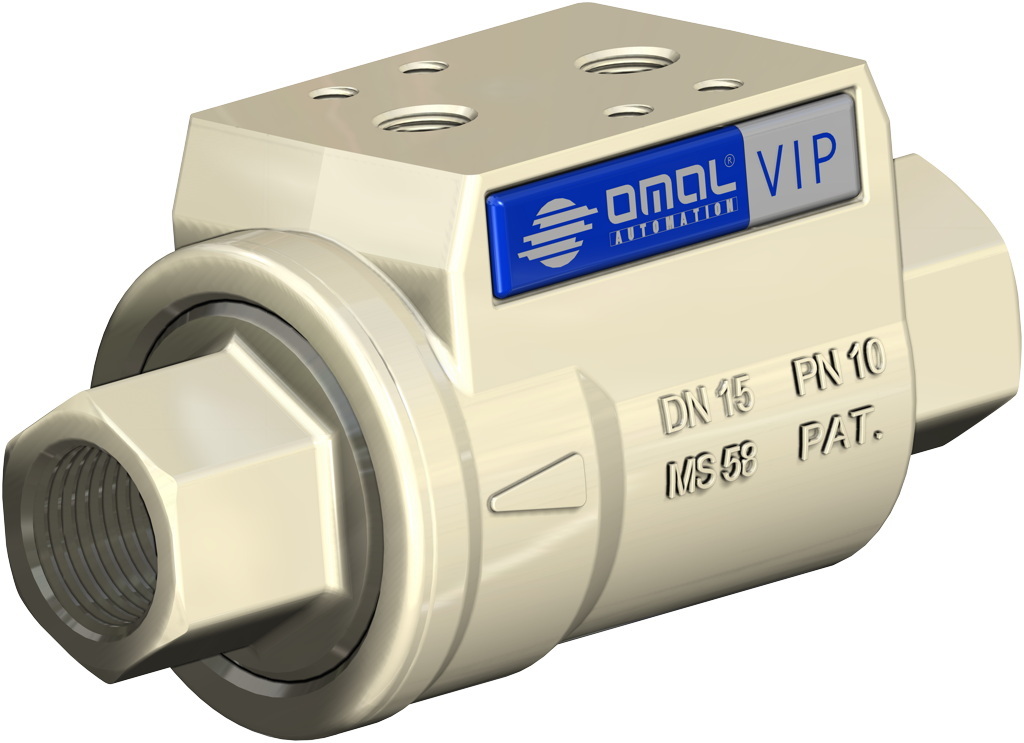

VIP - Pneumatic Coaxial Valve

Spring return N.C.

Macro Pneumatic valves

Drive Spring return N.C.

Brass

Article	Size	Nominal pressure	Weight [kg]	Liner	Spare part kit
VNC10003	DN 10 3/8''	PN 10	0.85	NBR	KGVN0103
VNC10004	DN 15 1/2''	PN 10	1.05	NBR	KGVN0104
VNC10005	DN 20 3/4''	PN 10	1.69	NBR	KGVN0105
VNC10006	DN 25 1''	PN 10	1.88	NBR	KGVN0106
VNC10007	DN 32 1” 1/4	PN 10	3.41	NBR	KGVN0107
VNC10008	DN 40 1'' 1/2	PN 10	3.7	NBR	KGVN0108
VNC10009	DN 50 2''	PN 10	5.8	NBR	KGVN0109
VNC20003	DN 10 3/8''	PN 10	0.85	FKM	KGVV0103
VNC20004	DN 15 1/2''	PN 10	1.05	FKM	KGVV0104
VNC20005	DN 20 3/4''	PN 10	1.69	FKM	KGVV0105
VNC20006	DN 25 1''	PN 10	1.88	FKM	KGVV0106
VNC20007	DN 32 1” 1/4	PN 10	3.41	FKM	KGVV0107
VNC20008	DN 40 1'' 1/2	PN 10	3.7	FKM	KGVV0108
VNC20009	DN 50 2''	PN 10	5.8	FKM	KGVV0109
VNC30003	DN 10 3/8''	PN 10	0.85	EPDM	KGVE0103
VNC30004	DN 15 1/2''	PN 10	1.05	EPDM	KGVE0104
VNC30005	DN 20 3/4''	PN 10	1.69	EPDM	KGVE0105
VNC30006	DN 25 1''	PN 10	1.88	EPDM	KGVE0106
VNC30007	DN 32 1” 1/4	PN 10	3.41	EPDM	KGVE0107
VNC30008	DN 40 1'' 1/2	PN 10	3.7	EPDM	KGVE0108
VNC30009	DN 50 2''	PN 10	5.8	EPDM	KGVE0109
