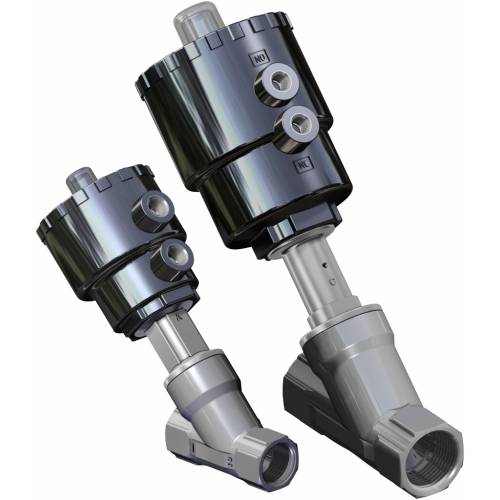

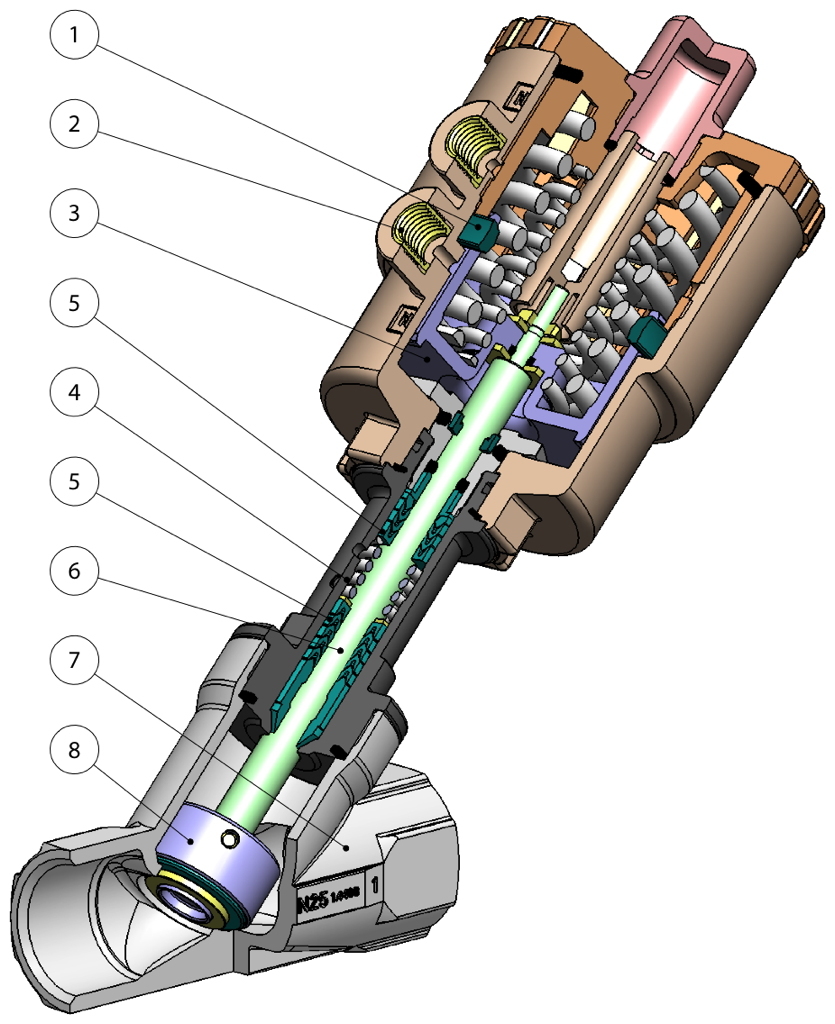

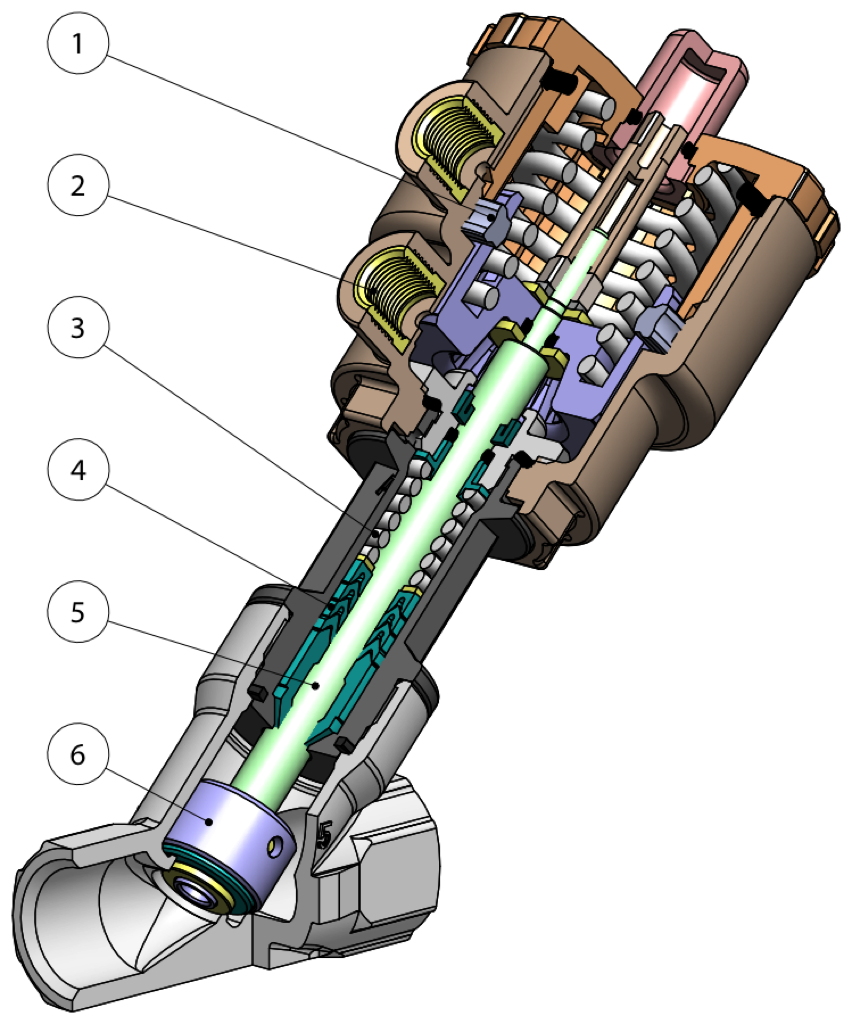

1. Seal placed in the cylinder rather than on the piston. Longer stroke of the actuator and shutter will be achieved, granting higher flow rate (less flow loss). Less wear of the seal.
2. Piloting head inserts in 303 S.S. Increases considerably the corrosion resistance caused by external agents.
3. Starting from DN63 metal piston with CHEMICAL NICKEL coating (10-15 micron). Reduces the wear of the piston due to the achievement of a greater surface hardness (700-750 HV). 4. Seals pre-loaded by spring. Guarantee of the recovery of the gap due to the wear caused by the sliding of the shaft avoiding leakage towards the outside part. Allow to maintain energized the "chevron" seals (V) compensating the dimensional changes even in case of huge temperature excursions. 5. CHEVRON seals (V shape) with 5 seals in the lower part of the spring and 3 seals in the upper part. It ensures a perfect tightness even after a high number of cycles
6. Rolled shaft. Less wear of the seals due to the low roughness (0,1 micron Ra) which facilitate the sliding of the shaft. 7. Longer face to face. Better fluidodynamic with reduction of the turbulences. 8. Oscillating / self-aligning shutter. It fits perfectly to the valve body ensuring the maximum tightness.
ATEX Certificate. Installation is allowed in a potential explosive environment.
PED Certificate. Full compliance with European Safety Standards for Pressure Equipment.
ATENA

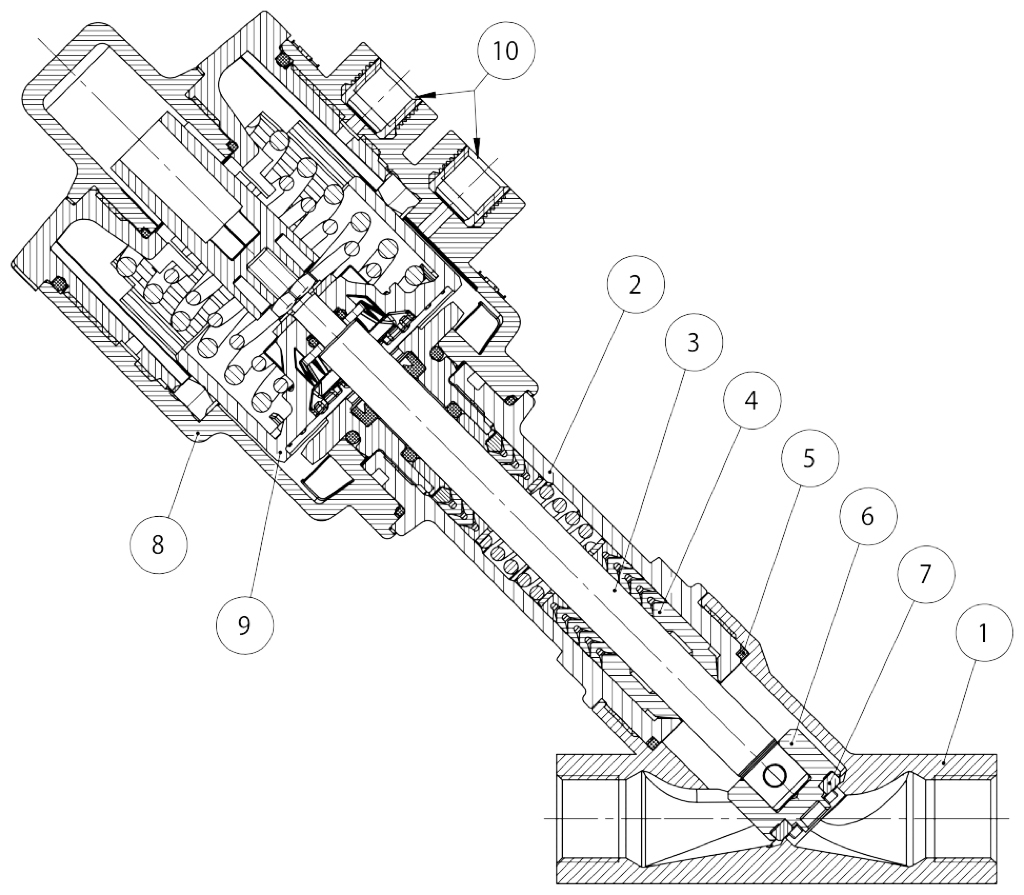

1. Seal placed in the cylinder rather than on the piston. Longer stroke of the actuator and shutter will be achieved, granting higher flow rate (less flow loss). Less wear of the seal.
2. Piloting head inserts in 303 S.S. Increases considerably the corrosion resistance caused by external agents.
3. Seals pre-loaded by spring. Guarantee of the recovery of the gap due to the wear caused by the sliding of the shaft avoiding leakage towards the outside part. Allow to maintain energized the "chevron" seals (V) compensating the dimensional changes even in case of huge temperature excursions.
4. CHEVRON seals (V shape) with 5 seals in the lower part of the spring and 3 seals in the upper part. It ensures a perfect tightness even after a high number of cycles
5. Rolled shaft. Less wear of the seals due to the low roughness (0,1 micron Ra) which facilitate the sliding of the shaft.
6. Oscillating / self-aligning shutter. It fits perfectly to the valve body ensuring the maximum tightness.
ATEX Certificate. Installation is allowed in a potential explosive environment.

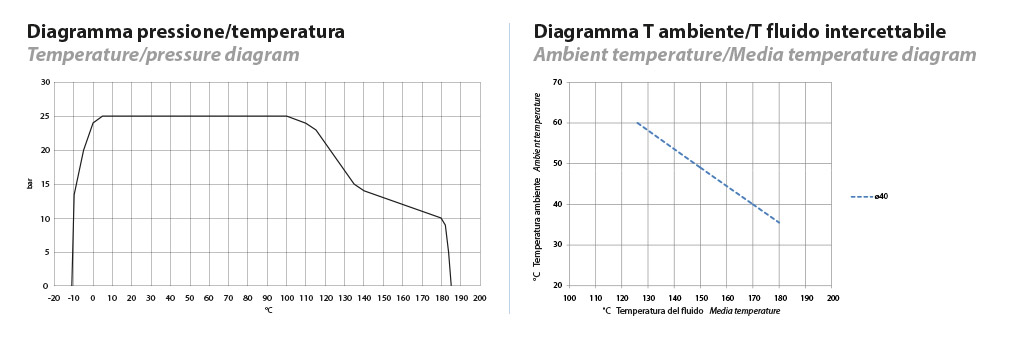

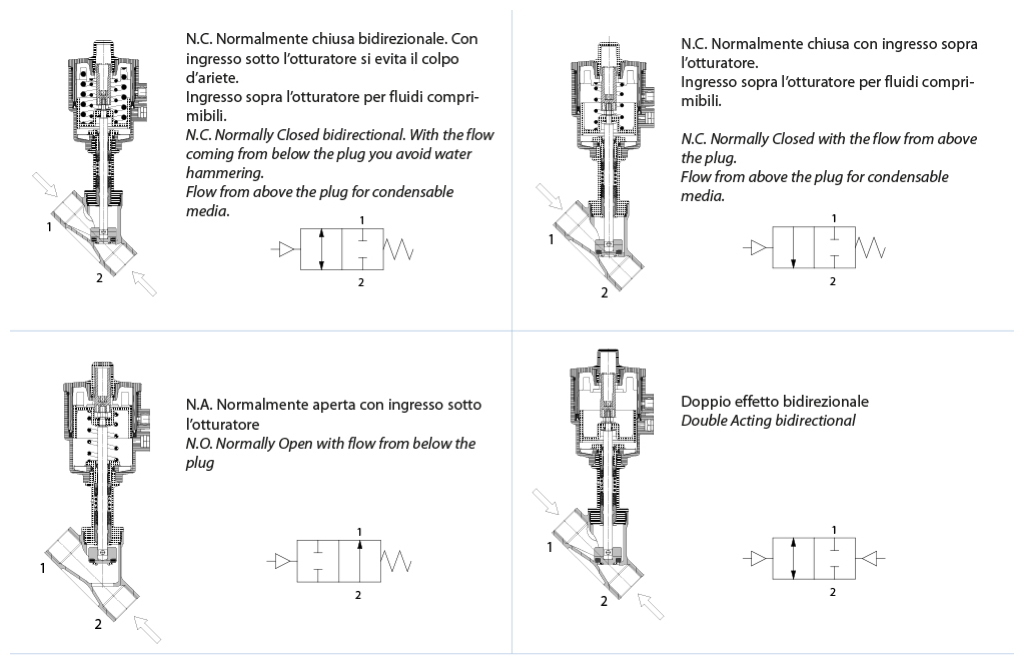

GENERAL FEATURES: Threaded valve ends, as per EN 10226-1 Rp (ex ISO 7/1) for Ares valves; ISO 228/1 for Zeus valves. Other types available on request. Assembling is possible in all positions: upright, flat or angled. Range available from 3/8” to 2” in the Double Acting versions, Spring Return N.C. from above and below the plug, Spring Return N.O. from below the plug. According to 2014/68/EU “PED”. 2014/34/EU ATEX configuration to request at time of order. The variations in the actioning of the valve, the several combinations and the possibility to intercept the fluid from above or below the plug, originate multiple versions of the automatic valve. In the table below are indicated the standard versions with the main parameters. On the basis of the kind of valve and the variations of pressure ΔP that must be intercepted, the necessary control pressure can be individuated, and consequently, the code for the corresponding valve. On request: versions for vacuum and oxygen service.
CONTROL MEDIA: Driving media: compressed air, lubricated or dry, gas or neutral media. Ambient temperature: -10°C to +60°C

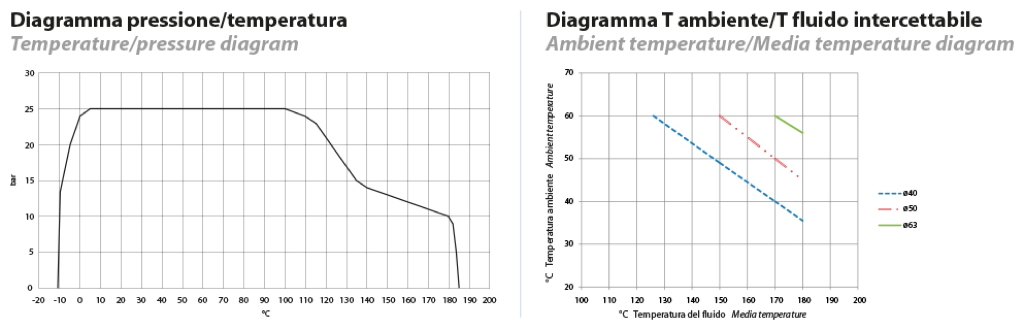

OPERATING MEDIA: Air,water, alcohol, oil, petroleum products, saline solutions, steam, etc. (as long as compatible with A 351 CF8M O CuSn5Zn5Pb5-B). Pressure from 0 to 16 / 25 bar (steam from 180°C, from 0 to 10 bar) depending on the size and model chosen (see following pages). Temperature from –10°C to 180°C. Max. viscosity 600 cst (mm2/s).
ARES

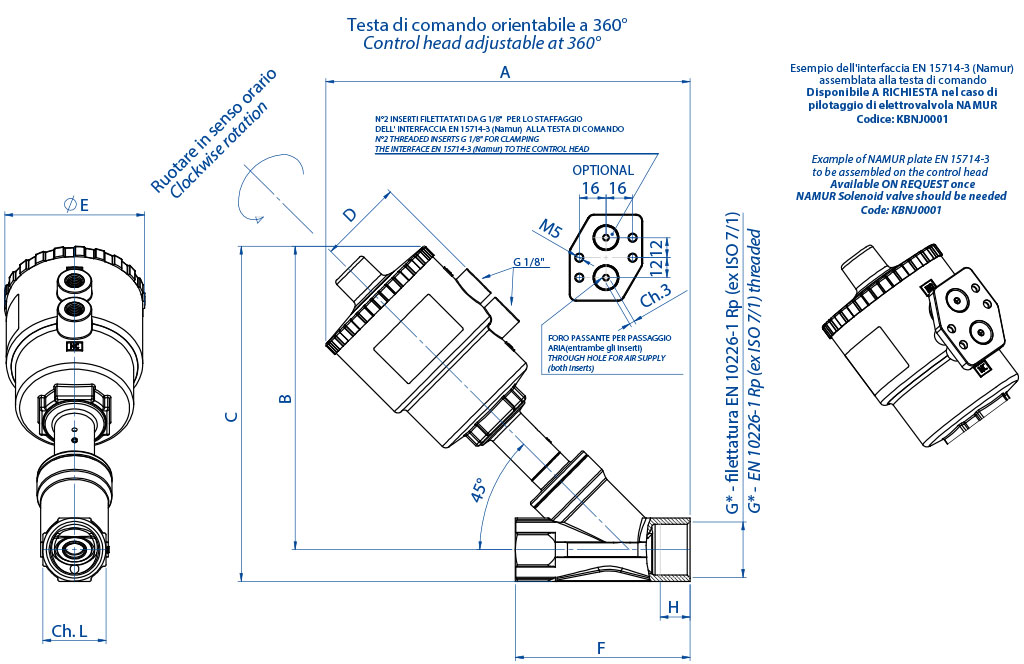

ARES DIMENSIONS
DN [mm]
G * [inch]
ACTUATOR
A
B
C
D
øE
F
ch. L
H
15
3/8”
Ø 50
190
156,5
169
44
70
85
25
12
15
1/2”
Ø 50
190
156,5
169
44
70
85
25
15
20
3/4”
Ø 50
195
160,5
176
44
70
95
31
16,3
20
3/4”
Ø 63
213
178,5
194,4
50,5
84,4
95
31
16,3
25
1”
Ø 50
200
164
183
44
70
105
38
19,5
25
1”
Ø 63
219
183
202
50,5
84,4
105
38
19,5
25
1”
Ø 90
259
223
242
66,2
116,4
105
38
19
32
1”1/4
Ø 50
208
167,5
191
44
70
120
47
19
32
1”1/4
Ø 63
226
185,5
209
50,5
84,4
120
47
19
32
1”1/4
Ø 90
266
225,5
249
66,2
116,4
120
47
18
32
1”1/4
Ø 110
302
261,5
285
77,4
140,6
120
47
18
40
1”1/2
Ø 63
231
191
218
50,5
84,4
130
54
18
40
1”1/2
Ø 90
271
231
258
66,2
116,4
130
54
20
40
1”1/2
Ø 110
307
266
294
77,4
140,6
130
54
20
50
2”
Ø 63
245
200
233
50,5
84,4
150
66
20
50
2”
Ø 90
285
241
274
66,2
116,4
150
66
20
50
2”
Ø 110
321
276
310
77,4
140,6
150
66
20
*On request NPT-threading
ATENA HEAD Ø40

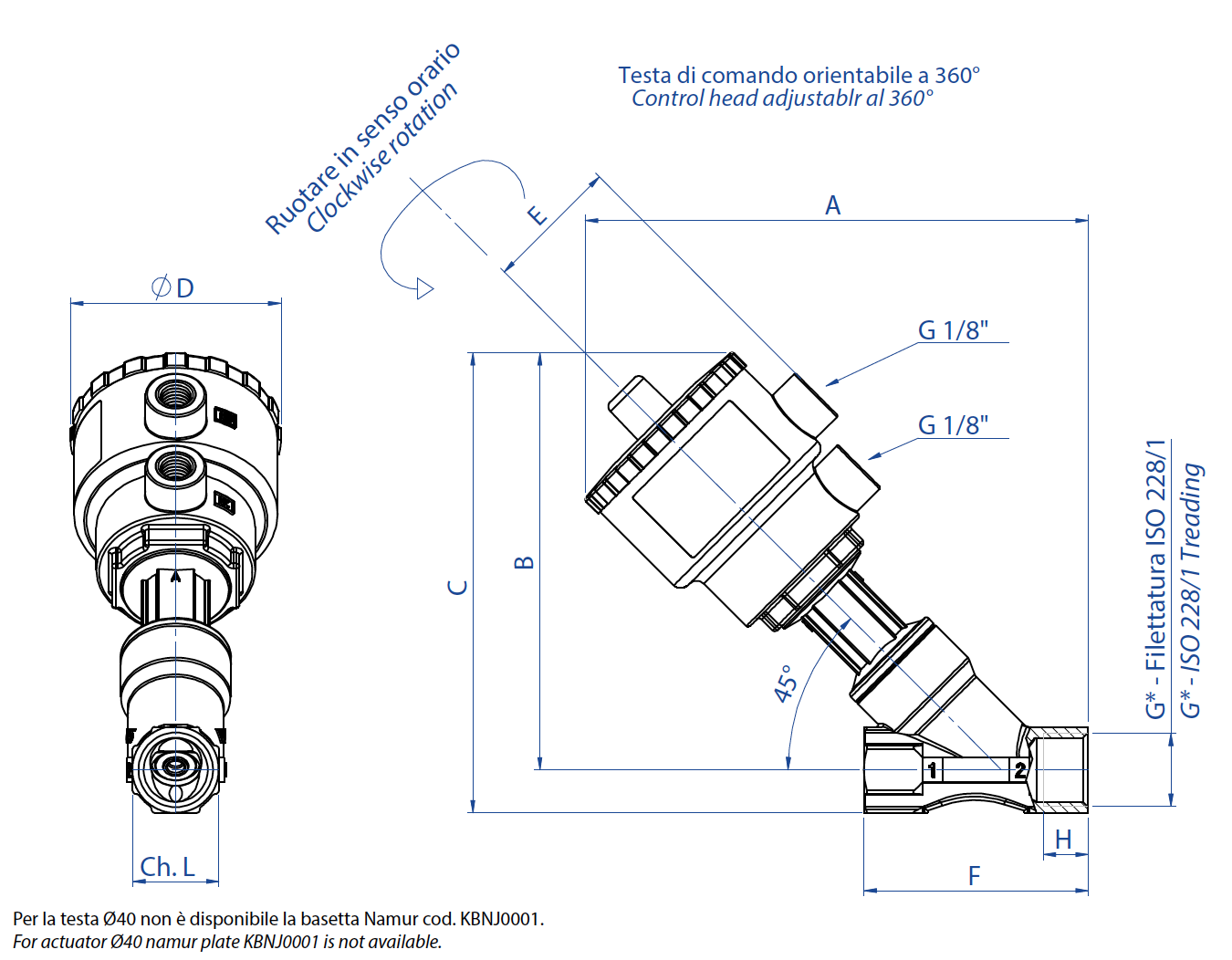

ATENA DIMENSIONS
CF8M version
DN [mm]
G *[inch]
ACTUATOR
A
B
C
øD
E
F
H
ch. L
15
3/8”
Ø 40
144
121
134
61
39
65
12
25
15
1/2”
Ø 40
144
121
134
61
39
65
11
25
20
3/4”
Ø 40
151
128
143
61
39
75
14
31
*On request NPT-threading
ARES
N°
ARES MATERIALS
1
Valve body
A351-CF8M (316 S.S.)
2
Sleeve
A351-CF8M (316 S.S.)
3
Stem
316L S.S.
4*
Stem seals
PTFE-CF
5*
Body seal
GRAPHITE
6
Plug
316L S.S.
7
Plug seal
PTFE
8
Actuator cylinder
Poliammide PA 66 + GF 30%
9
Piston
Brass chem-nickel (PBT + GF 20% head ø40 - ø50)
10
Threading inserts
303 S.S.
Namur plate (OPTIONAL)
PA66 +GF30%, brass inserts
* For high purity application are allowable stem seals in virgin PTFE and body seals in Peek

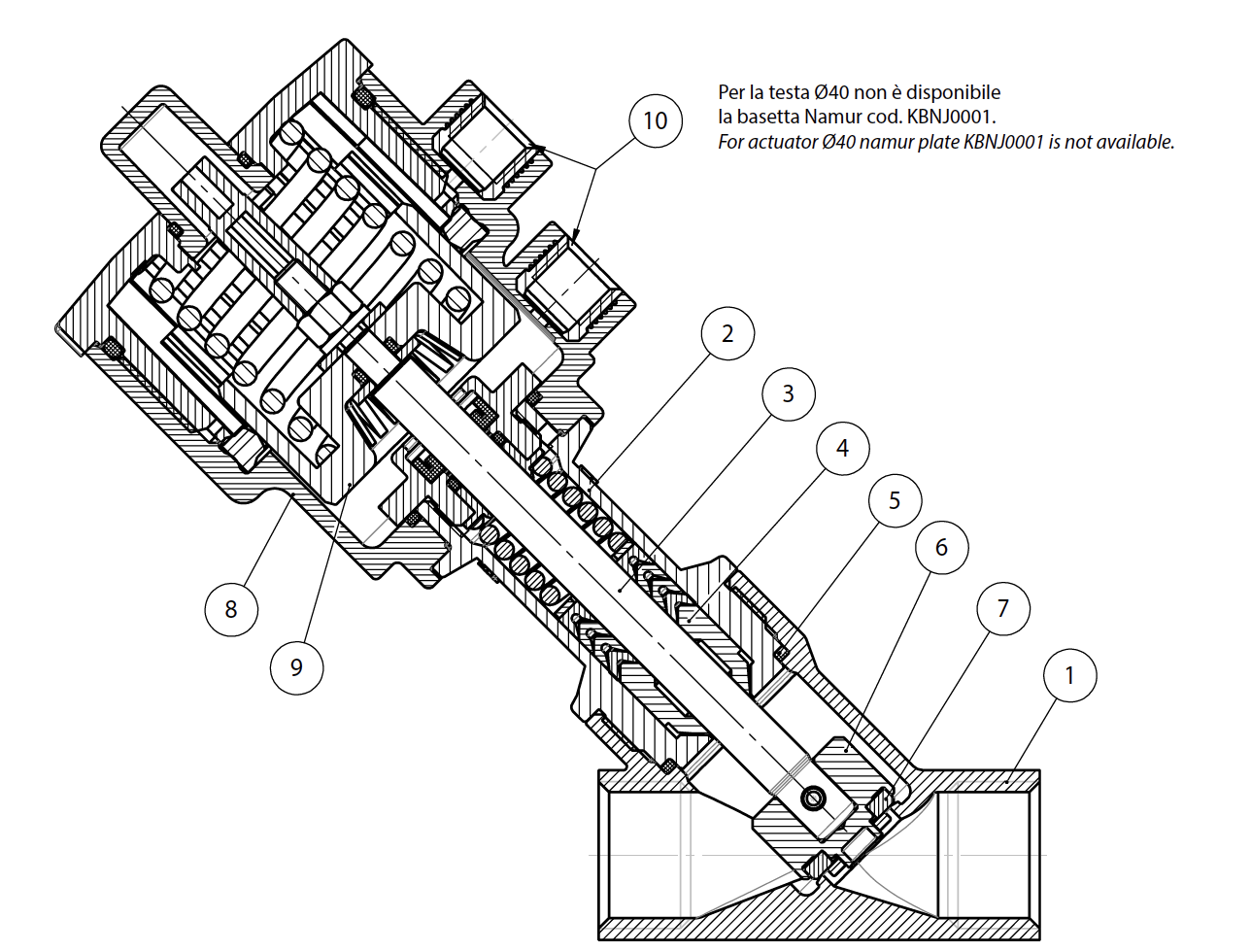

ATENA
N°
ATENA MATERIALS
1
Valve body
A351-CF8M (316 S.S.)
2
Sleeve
A351-CF8M (316 S.S.)
3
Stem
316L S.S.
4*
Stem seals
PTFE-CF
5*
Body seal
GRAPHITE
6
Plug
316L S.S.
7
Plug seal
PTFE
8
Actuator cylinder
Poliammide PA 66 + GF 30%
9
Piston
PBT + GF 20%
10
Threading inserts
303 S.S.
* For high purity application are allowable stem seals in virgin PTFE and body seals in Peek
ARES
ATENA
METHODS OF USE

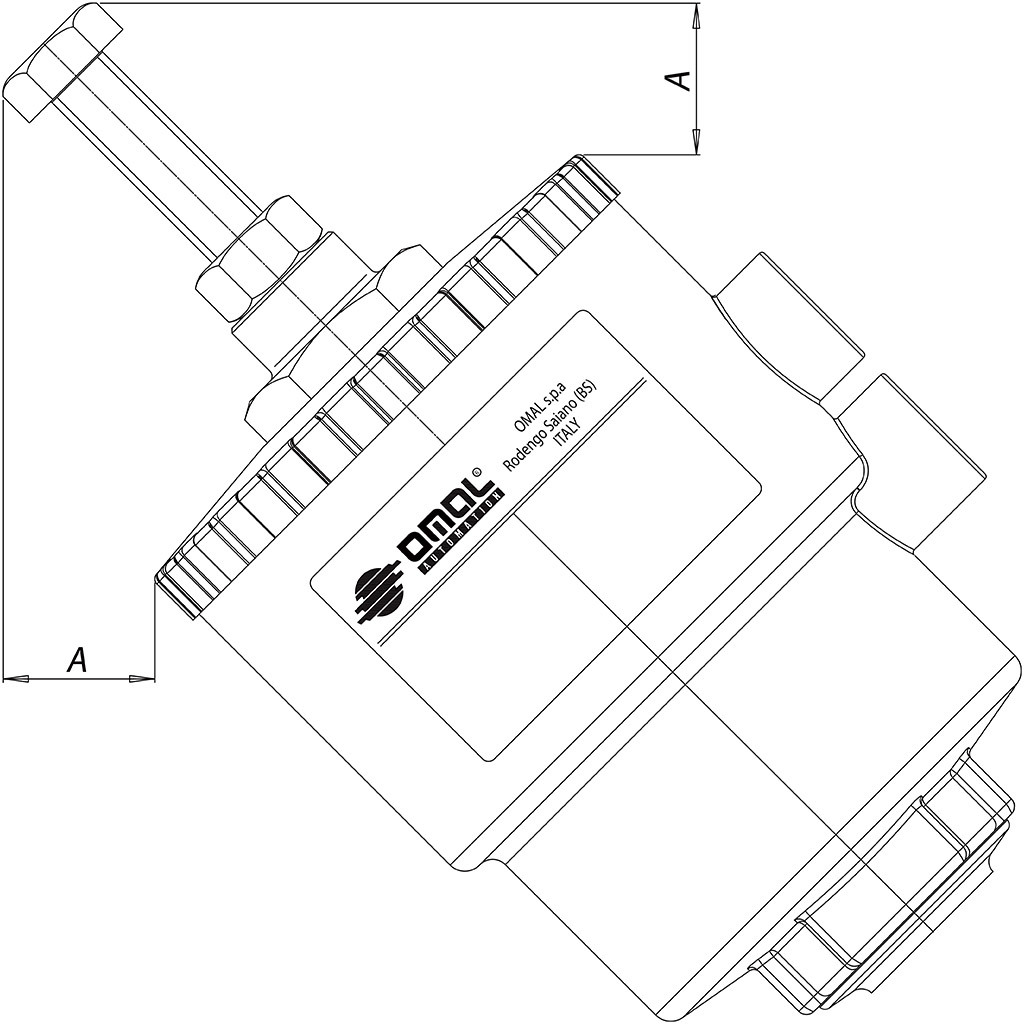

Stroke limiter It allows to limit the plug run in opening phase, therefore it regulates the flow. Available on all versions. In spring return normally open version it can be used as an emergency control.
Control
A mm
Code
∅ 50
25,5
KLJL0016
∅ 63
21,5
KLJL0018
∅ 90
5,2
KLJL0021
∅ 110
5,9
KLJL0023
Not available with ∅ 40 head.

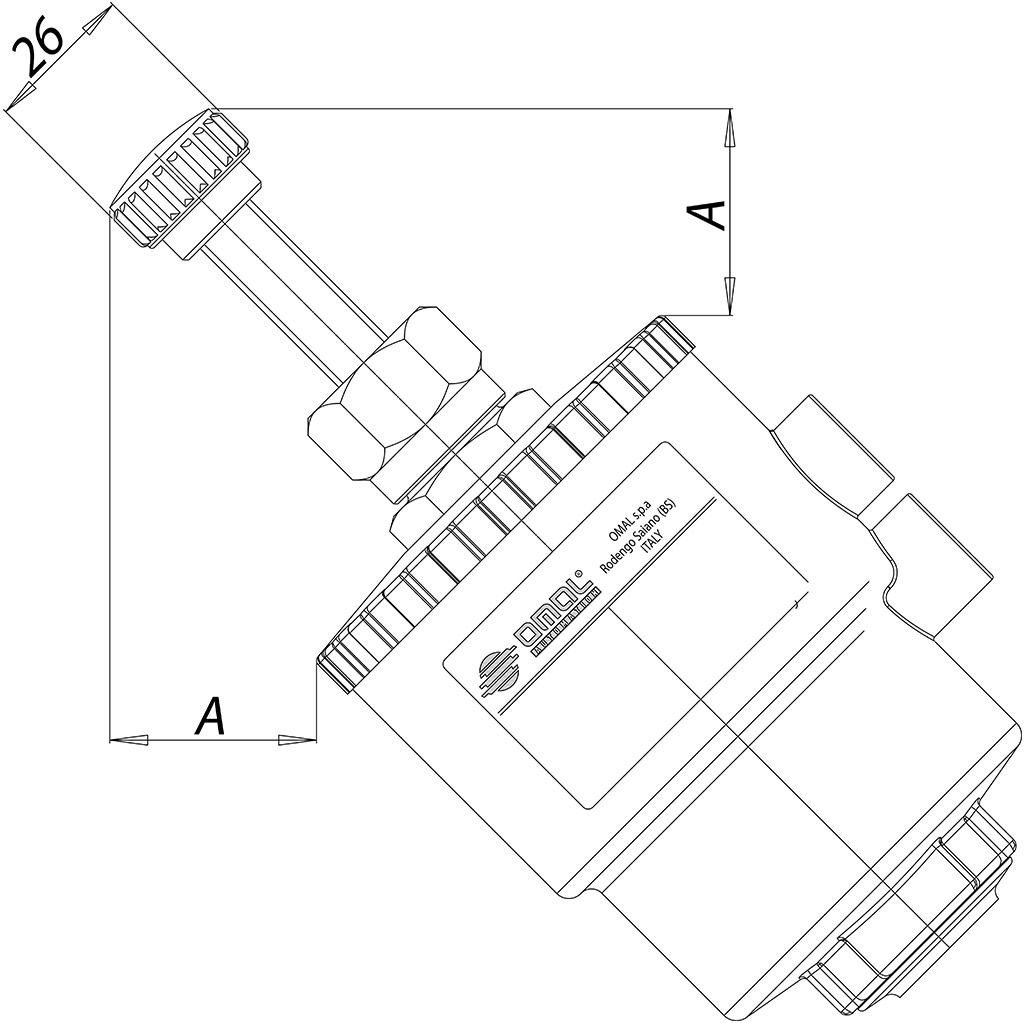

Emergency manual override It allows to open the valve in emergency cases (lack of pilot fluid, machinery damaged, lack of piloting signal). It is available on all normally closed valves.
Control
A mm
Code
∅ 50
35,8
KLJA0016
∅ 63
35,8
KLJA0018
∅ 90
29,5
KLJA0021
∅ 110
29,5
KLJA0023
Not available with ∅ 40 head

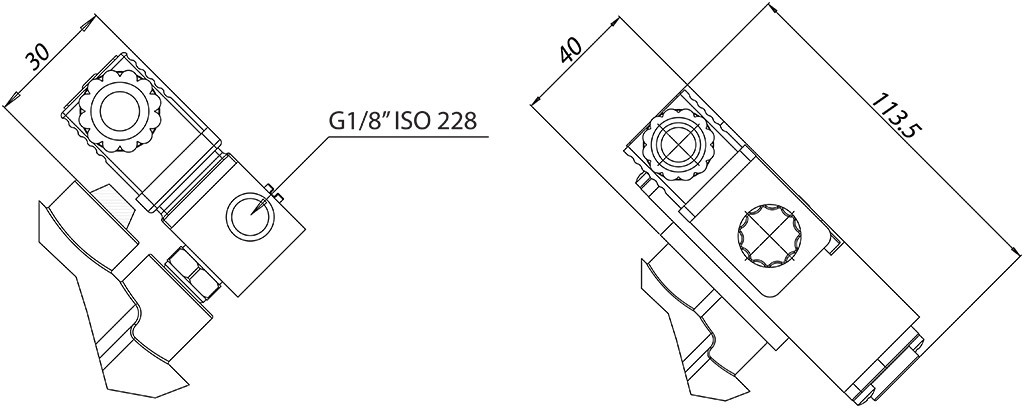

Electro-pilot 3/2 - Solenoid valve 3/2 - 5/2
Control solenoid valve Electro-pilot 3/2 for direct assembling. Body and reel positionable at 360°. Standard manual control. Solenoid valve (NAMUR) sets for selection between function 5/2 or 3/2, achievable by mounting the corresponding plate (both supplied). Room temperature: from –10°c to +50°C.
Voltage
24 Vac
115 Vac
230 Vac
24 Vdc
Electro-pilot
EP415024
EP415110
EP415220
EP412024
Voltage
24 Vac
115 Vac
230 Vac
24 Vdc
NAMUR Solenoid valve*
ER8188A2
ER8188A4
ER8188A5
ER8188C2
NAMUR interface
KBNJ0001
* To be usedy with NAMUR interface only

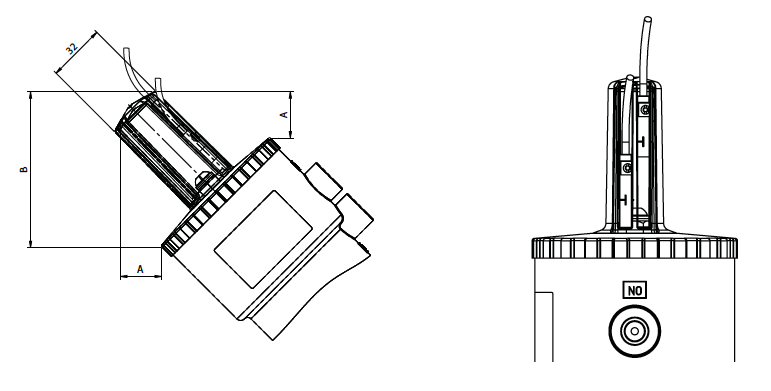

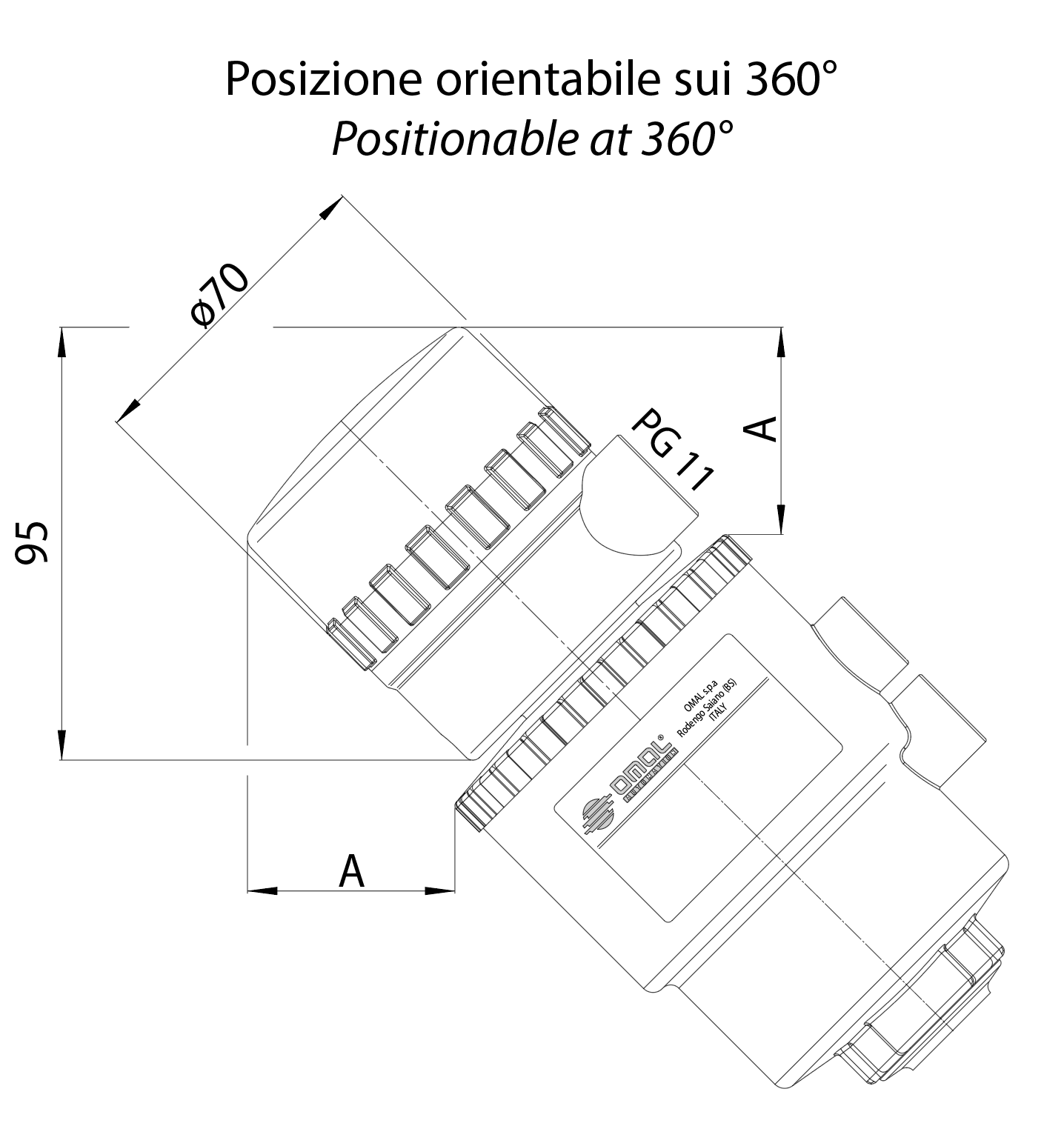

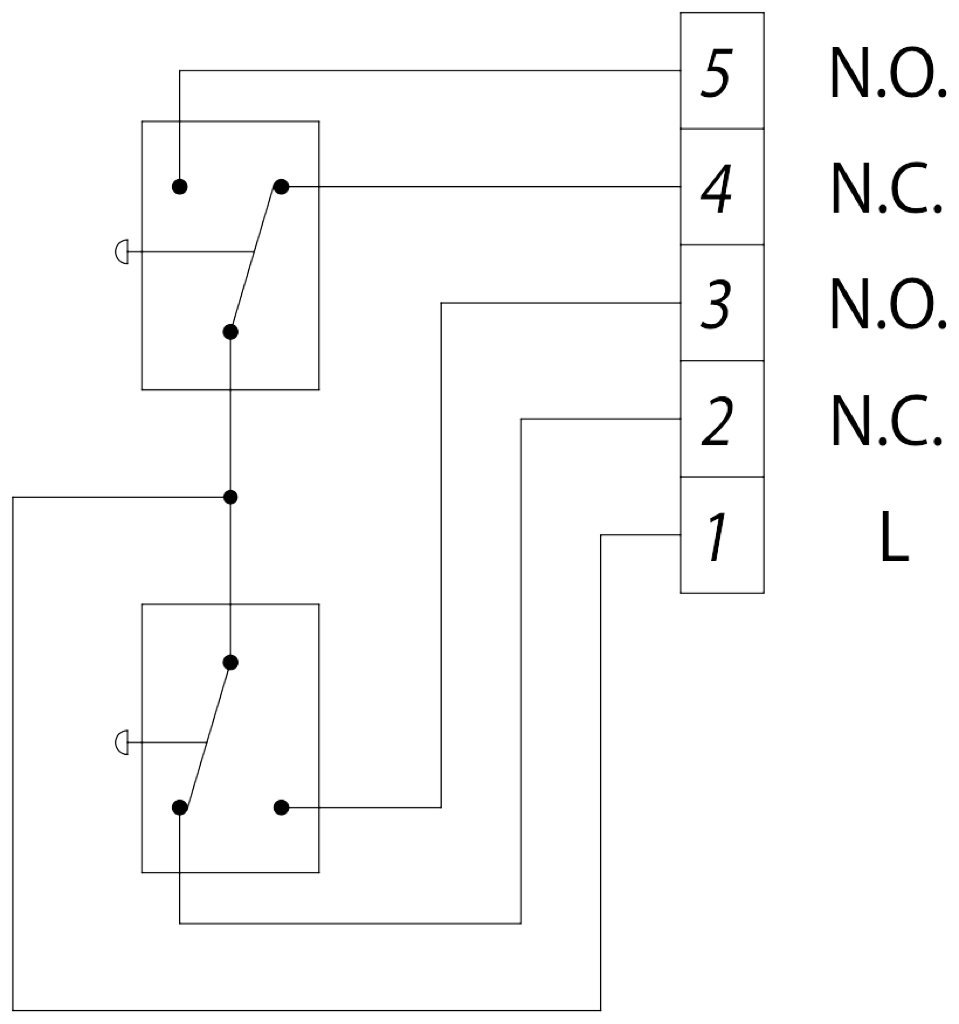

Limit switch box The control box to check the open/close positions with two mechanical limit switches is suitable for assembling on all the range of valves with actuators ∅50 - ∅63 - ∅90 - ∅110. The terminals to connect the solenoid valve and the visual indicators provided with led are optional. Level of protection: IP 65. Room temperature: from –20° C to +70°C. Access lead nr. 1 PG11. Body material: polyamide (cap in trasparent polymethacrylate).
Control
A mm
∅ 50
52,1
∅ 63
47,5
∅ 90
37,7
∅ 110
29,5
AVAILABLE LIMIT SWITCH

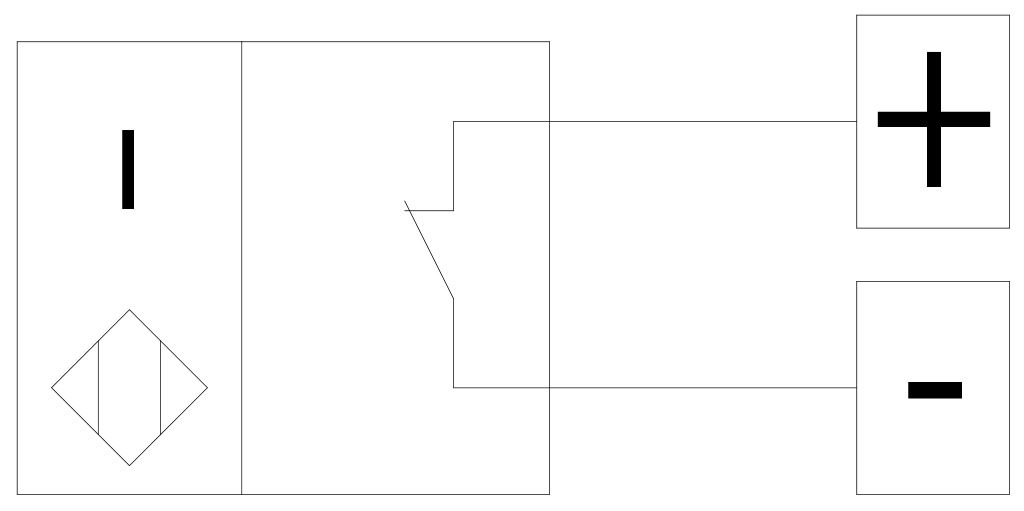

Inductive limit switches NAMUR EExia Nominal voltage: 8 Vdc Consumes: working ≤1mA; resting ≥3 mA Working temperature: from –20°C to +70°C
Configuration
Code
1 Limit switch at the top: open valve
KSIN9A0xx
1 Limit switch at the bottom: close valve.
KSIN9C0xx
2 Limit switch open and close valve
KSIN920xx
Proximity limit switches Nominal voltage: 10÷30 Vdc Consumes: 15mA; Working temperature: from –20°C to +70°C
Configuration
Code
1 Limit switch at the top: open valve
KSI09A0xx
1 Limit switch at the bottom: close valve.
KSI09C0xx
2 Limit switch open and close valve
KSI0920xx

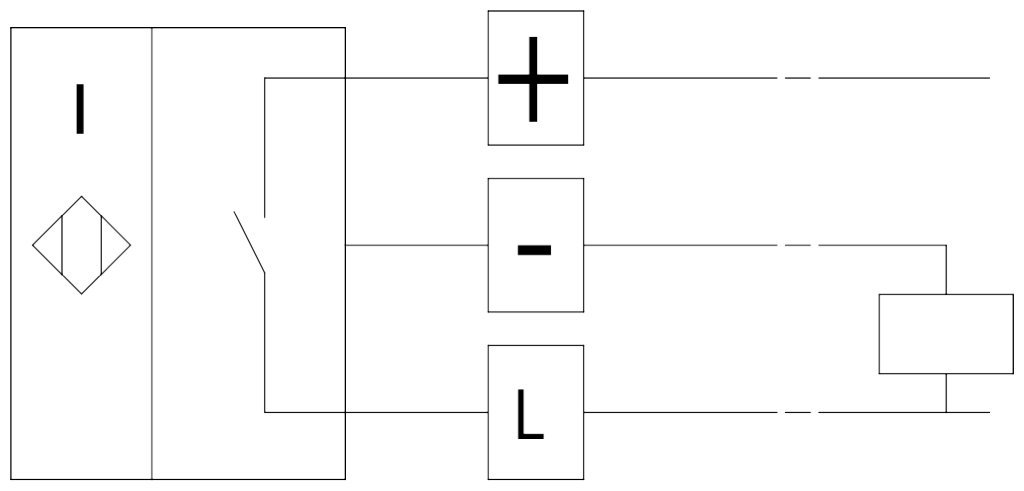

Mechanical limit switches Limit switch at the top: open valve Limit switch at the bottom: close valve Max. capacity: 5A 250 Vac; 1A 250 Vdc
Configuration
Code
2 Limit switch
KSM0C20xx
xx = Ø control heads 16 = Ø50 18 = Ø63 21 = Ø90 23 = Ø110
