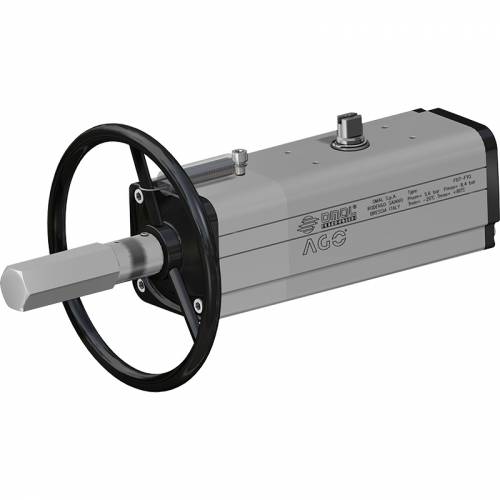

AGO HANDWHEEL - DA with integrated handwheel

Category AGO HANDWHEEL - Actuators with integrated handwheel

SIZE SELECTION

PAGE PRINT

DOWNLOAD CATALOGUE 4-3: AGO HANDWHEEL - ACTUATORS DA WITH INTEGRATED HANDWHEEL

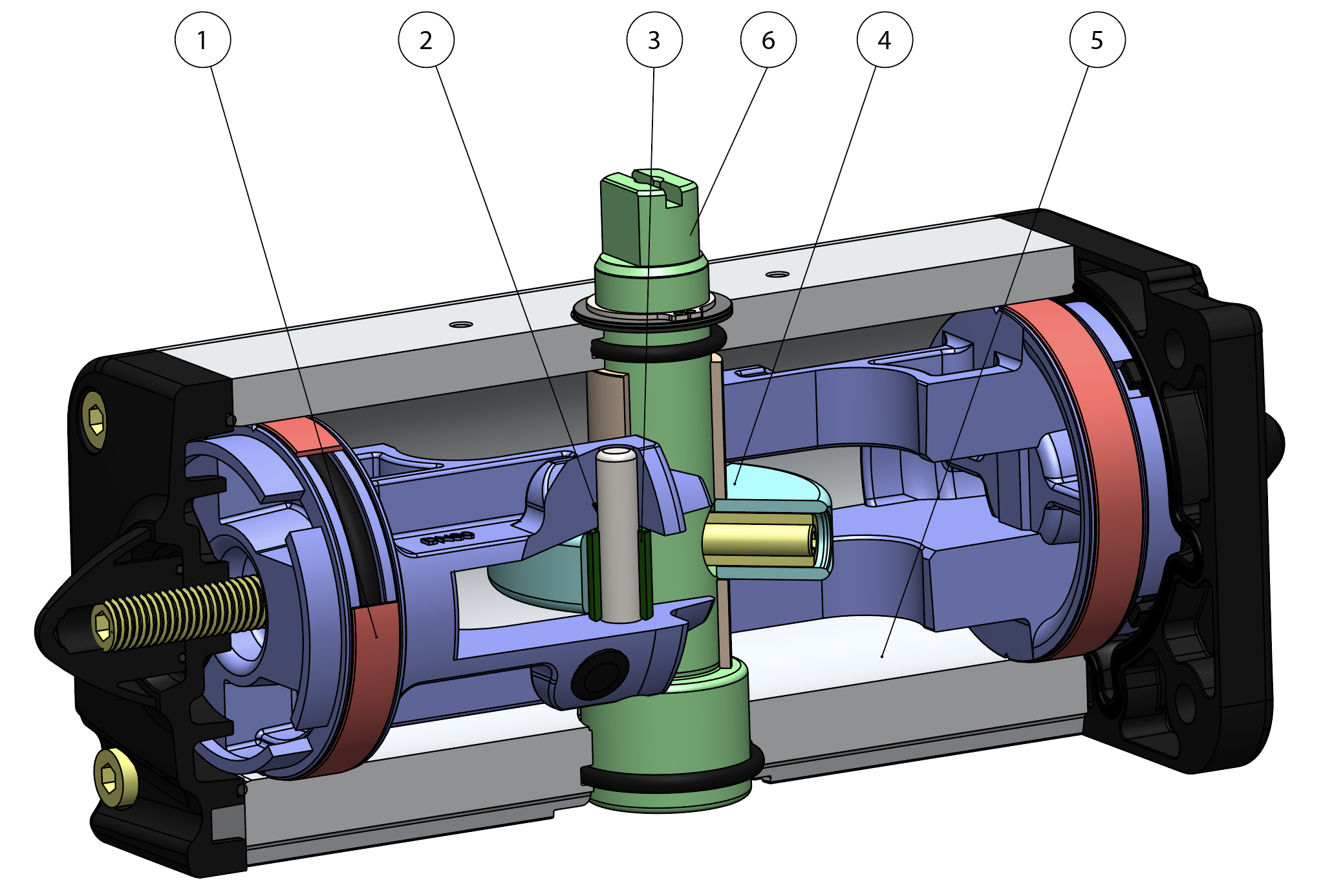

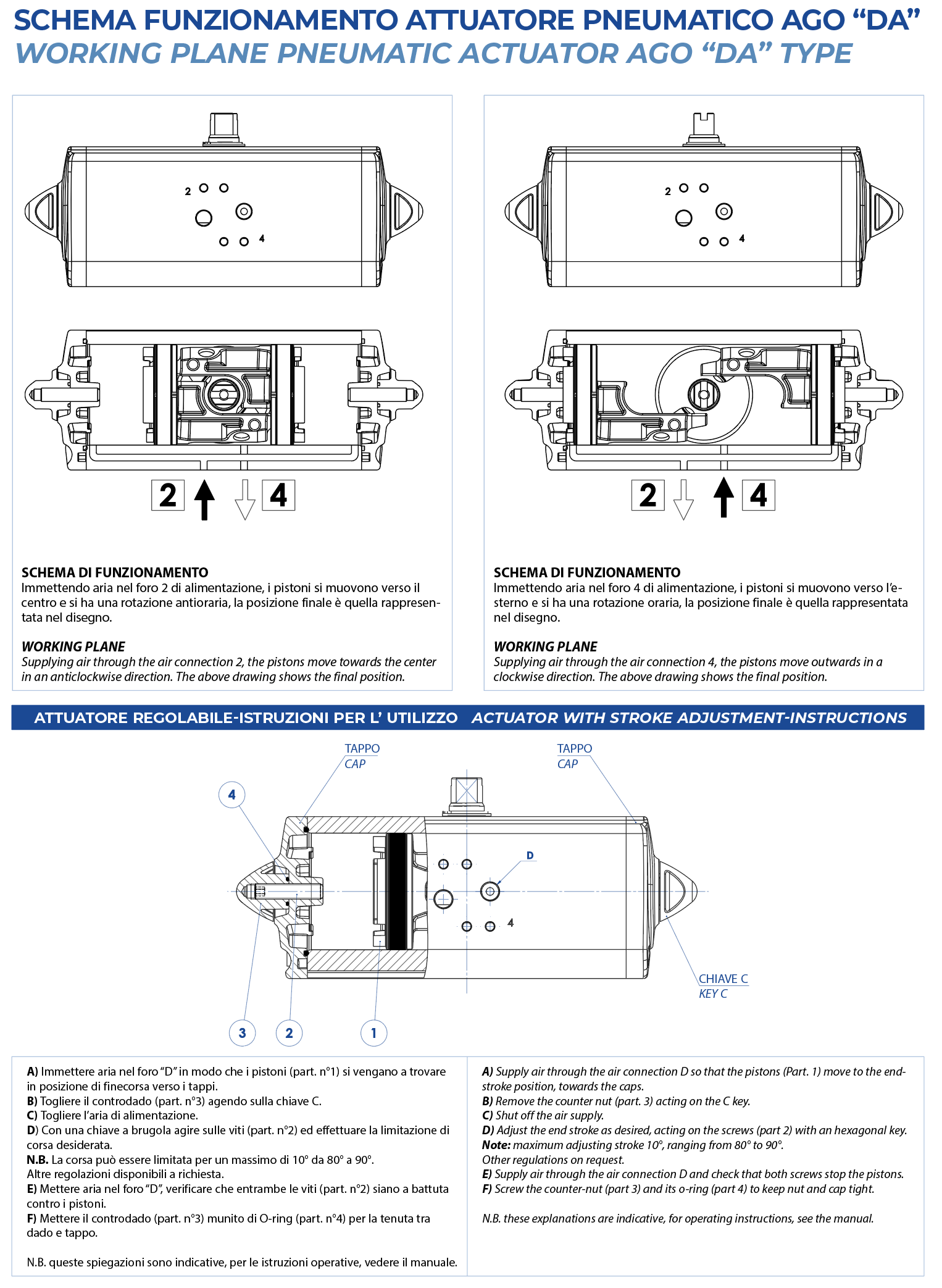

AGO HANDWHEEL - DA with integrated handwheel - benefits -

1.Energized and self-lubricated strips
Less friction between piston and cylinder
It prevents the bonding of the seal to the cylinder even after long periods of inactivity

2.Slots, bushes and pins made by steel with hardness higher than 50 HRC
Higher resistance to the forces inside the actuator

3.Rolling friction between piston and slot
Less friction

4.Scotch yoke with rolling friction (transforming rotary motion into linear motion using piston and shaft without teeths/gears)
Reduced friction between piston and shaft with consequently less wear on the relevant parts
Empowered Breakaway Torque (BTO & BTC)
Smaller volume/size than rack and pinion actuators (with the same torque) therefore less space required for installation
Less weight than the rack and pinion (-30% kg / Nm), with consequent savings on the construction sizing of the plant/equipment
Lower air consumption compared to the rack and pinion actuators (-40% air cm3/Nm for Double Acting and -20% air cm3/Nm for Spring Return) therefore less load on the compressor or the possibility of using a smaller compressor's size.

5.Rolled cylinder
Less wear of the energized ties thanks to the low roughness of the surface

6. Stainless Steel shaft
Higher corrosion resistance

From sizes bigger than DAN15, NAMUR interface for solenoid valve is already integrated.
No need for extra plate.

100% in- house manufacturing process technology
Maximum control and accuracy in all the stages of the manufacturing process

ATEX Certificate
Installation is allowed in a potential explosive environment

Up to SIL 3 Certified
Guarantee of the high level of functional safety.

TECHNICAL FEATURES
Torque from 60 Nm to 3840 Nm.
Mounting flange according to EN ISO 5211
F05 - F07 - F10 - F12 - F14 - F16.
In accordance with EN 15714-3
Rotation angle: 92° (-1°, +91°)
Torque: directly proportional to the air supply (see table).
The code numbers after the DANV letters, always correspond to the breakaway torque in Nm by 5,6 bar air supply.
ATEX version in conformity with directive 2014/34/EU. Please add YX at the end of the code for ATEX version.

WORKING CONDITIONS
Temperature: from -20°C to +80°C. (Special versions: high temperature: -20°C +150°C; low temperature: -50°C +60°)
Air supply: 5,6 bar; maximum 8,4 bar.
Actuating media: filtered dry compressed air, not necessarily lubricated.
In case of lubricated air, either non detergent oil, NBR compatible oil, must be used.

Once required the quarter turn pneumatic actuator can be equipped with a manual
handwheel. The device can be integrated either in Double Acting and Spring Return versions.
For the proper functioning of the system and for the mechanical integrity of the device is essential to ensure that the pneumatic actuator is disconnected from the power lines of compressed air before performing any operation using the manual handwheel.
The manual handwheel acts on the transmission of the primary mechanical transmission of the pneumatic actuator and with torques applied to the handwheel according to EN 12570 it releases output torque of equal value of the nominal torque of the actuator.

DANV 60 ÷ DANV 1920

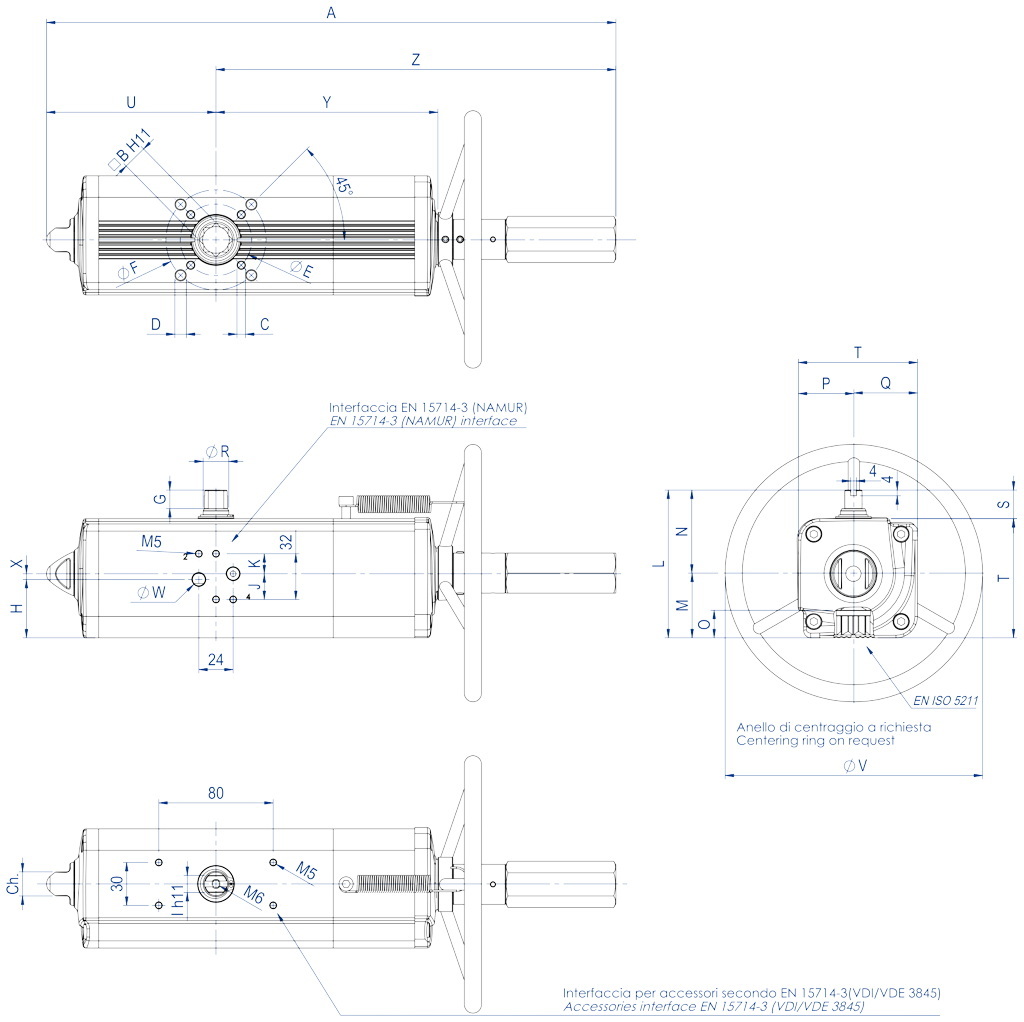

DATA SHEET DANV 60 ÷ DANV 480
Code	DANV0060411S	DANV0060412S	DANV0106411S	DANV0120411S	DANV0180411S	DANV0240411S	DANV0360411S	DANV0480411S
Spare Seals	KGGI0016VX	KGGI0016VX	KGGI0060VX	KGGI0018VX	KGGI0019VX	KGGI0020VX	KGGI0021VX	KGGI0022VX
Size	DANV 60	DANV 60	DANV 106	DANV 120	DANV 180	DANV 240	DANV 360	DANV 480
ISO	F04	F05/F07	F05/F07	F05/F07	F07/F10	F07/F10	F07/F10	F10/F12
A	362,3	362,3	397,8	410,5	483	510,5	567,6	634,4
B	14	14	17	17	22	22	22	27
C x depth	M5x8	M6x9	M6x9	M6x9	M8x12	M8x12	M8x12	M10x15
D x depth	-	M8x12	M8x12	M8x12	M10x15	M10x15	M10x15	M12x18
E	42	50	50	50	70	70	70	102
F	-	70	70	70	102	102	102	125
G	13	13	13	13	16	17	19	19
H	33,7	33,7	40,8	42,8	52,5	56,1	58	57,4
J	18	18	18	18	18	18	18	16
K	14	14	14	14	14	14	14	16
I	10	10	12	12	15	15	19	19
L	90,4	90,4	103,3	107	137,5	141,1	148	164,9
M	37,7	37,7	44,8	46,8	56,5	60,1	62	72,9
N	52,7	52,7	58,5	60,2	81	81	86	92
O	16,5	16,5	19,3	19,3	24,8	24,8	24,3	29,5
P	32,7	32,7	38,5	40,2	51	51	56	62
Q	37,7	37,7	44,8	46,8	56,5	60,1	62	72,9
R	14,5	14,5	16,2	18	20,2	22,5	25,5	29
S	20	20	20	20	30	30	30	30
T	70,4	70,4	83,3	87	107,5	111,1	118	134,9
U	99	99	118,5	122,1	144,9	156,8	169,6	193,8
V	180	180	180	180	220	220	300	300
W (Gas)	1/8"	1/8"	1/8"	1/8"	1/8"	1/8"	1/8"	1/4"
X	4	4	4	4	4	4	4	-
Y	137,6	137,6	154,8	163,9	183,5	199,1	220,8	236,4
Z	263,3	263,3	279,3	288,4	338,1	353,7	398	440,6
Ch	13	13	17	17	22	22	22	27
N°of turns*	11	11	13	14	16	18	15	16
Weight (Kg)	2,8	2,8	4	4,5	6	8	10,2	13,2
Air (dm3/cycle)	0,3	0,3	0,7	0,59	1,2	1,65	2,3	3,2

* Theoretical n° of turns to close/open starting from neutral position.

DATA SHEET DANV 720 ÷ DANV 1920
Code	DANV0720411S	DANV0960411S	DANV0960412S	DANV1440411S	DANV1440412S	DANV1920411S	DANV1920412S
Spare Seals	KGGI0023VX	KGGI0024VX		KGGI0025VX		KGGI0026VX
Size	DANV 720	DANV 960		DANV 1440		DANV 1920
ISO	F10/F12	F10/F12	F14	F14	F12	F14	F12/F16
A	720,1	758	758	919,9	919,9	954,1	954,1
B	27	36	36	36	36	46	46
C x depth	M10x15	M10x15	M16x24	M16x24	M12x18	M16x24	M12x18
D x depth	M12x18	M12x18	-	-	-	-	M20x30
E	102	102	140	140	125	140	125
F	125	125	-	-	-	-	165
G	19,5	19,5	19,5	19,5	19,5	18,5	18,5
H	61,5	78	78	86,5	86,5	99,2	99,2
J	16	16	16	16	16	16	16
K	16	16	16	16	16	16	16
I	22	24	24	27	27	32	32
L	178	198	198	216	216	237,7	237,7
M	78,5	93,5	93,5	101,5	101,5	114,7	114,7
N	99,5	104,5	104,5	114,5	114,5	123	123
O	29,5	38,5	38,5	38,5	38,5	48,5	48,5
P	69,5	74,5	74,5	84,5	84,5	93	93
Q	78,5	93,5	93,5	101,5	101,5	114,7	114,7
R	31,8	36,5	36,5	41	41	46	46
S	30	30	30	30	30	30	30
T	148	168	168	186	186	207,7	207,7
U	216,6	239,7	239,7	283,5	283,5	300,4	300,4
V	350	350	350	400	400	400	400
W (Gas)	1/4"	1/4"	1/4"	1/4"	1/4"	1/4"	1/4"
X	-	-	-	-	-	-	-
Y	282,3	297,1	297,1	365,6	365,6	382,9	382,9
Z	503,5	518,3	518,3	636,4	636,4	653,7	653,7
Ch	27	27	27	36	36	36	36
N°of turns*	19	20		25		26
Weight (Kg)	17,8	23,8		33,6		43
Air (dm3/cycle)	4,6	6,05		9,7		12,9

* Theoretical n° of turns to close/open starting from neutral position.

DANV 3840

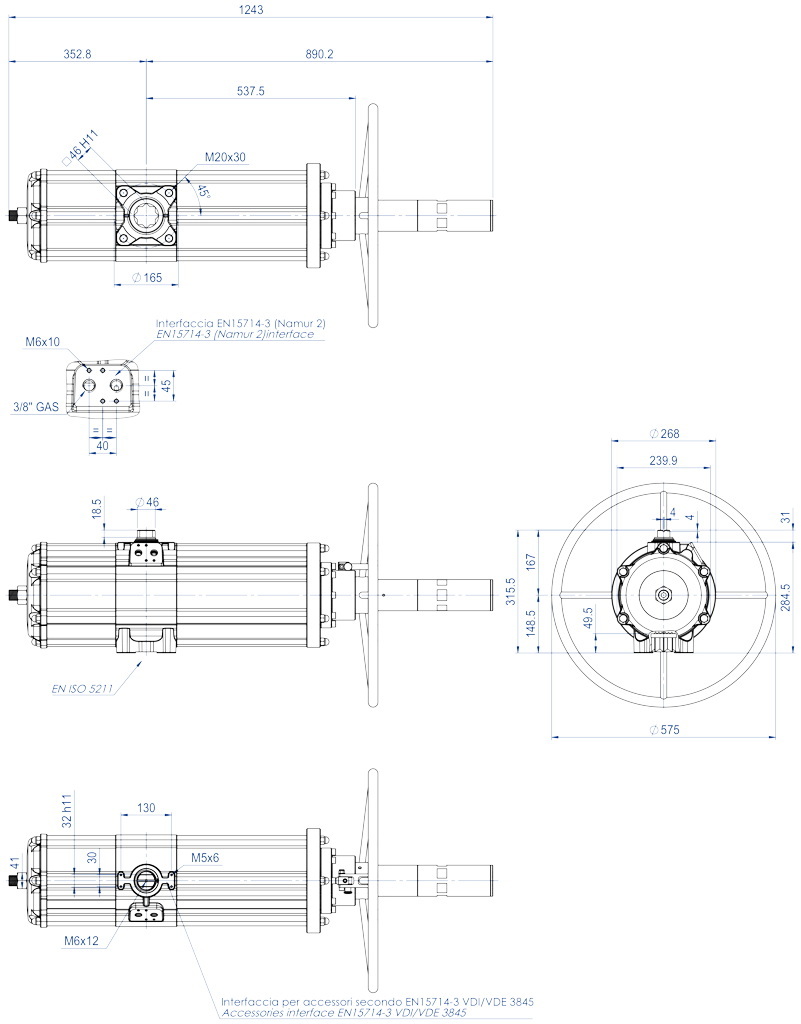

DATA SHEET DANV 3840
Code	DANV3840E1600A
Spare Seals	KGGI0130VX
Size	DANV 3840
ISO	F16
N°of turns*	30
Weight (Kg)	75
Air (dm3/cycle)	24,3

* Theoretical n° of turns to close/open starting from neutral position.

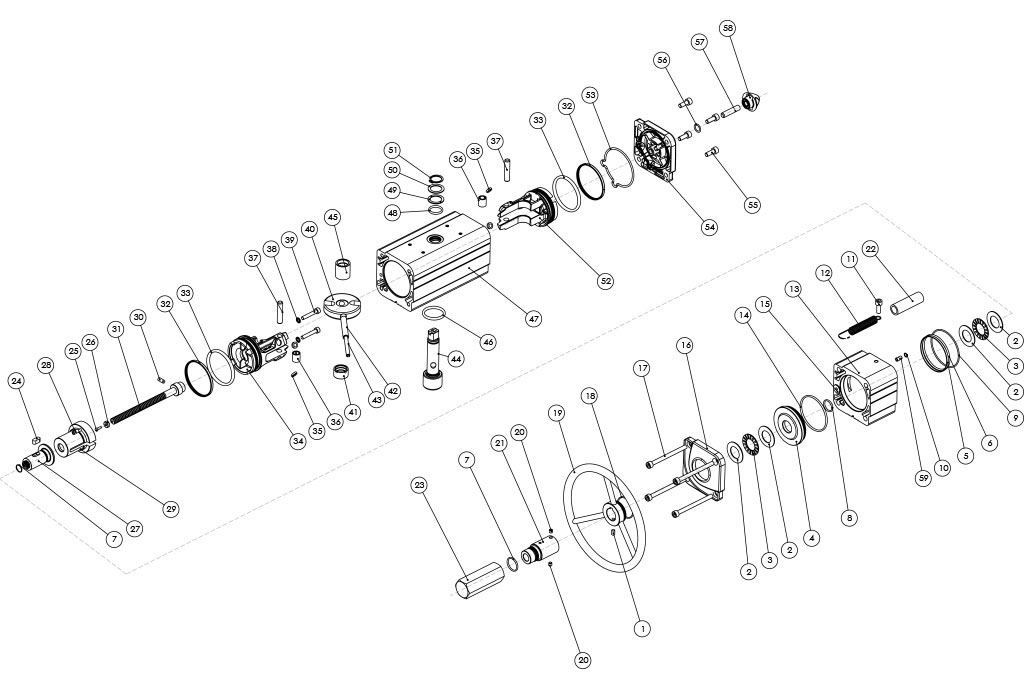

DOUBLE ACTING ACTUATOR COMPONENTS WITH MANUAL INTEGRATED HANDWHEEL - SIZES: UP TO DANV1920

AGO HANDWHEEL - DA with integrated handwheel - materials - DOUBLE ACTING ACTUATOR COMPONENTS WITH MANUAL INTEGRATED HANDWHEEL - SIZES: UP TO DANV1920

MATERIALS UP TO DANV1920
Pos	Denomination	Q.	Material
1	Screw	1	Stainless Steel
2*	Washer for roller bearings	4	Steel alloy
3*	Roller bearings	2	Steel alloy
4	Flange	1	Aluminium alloy
5	Centering ring (Only for DANV720)	1	Aluminium alloy
6*	O'ring (Only for DANV720)	1	Nitrilic rubber
7*	O'ring	2	Nitrilic rubber
8*	O'ring	1	Nitrilic rubber
9*	O'ring	1	Nitrilic rubber
10*	O'ring	1	Nitrilic rubber
11	Screw	1	Stainless Steel
12	Spring	1	Stainless Steel
13	Cylinder spacer	1	Aluminium alloy
14*	O'ring	1	Nitrilic rubber
15*	Seal cap	1	Ottone+Gomma nitrilica
16	Cap (modified)	1	Aluminium alloy
17	Vite	4	Stainless Steel
18*	O'ring	1	Nitrilic rubber
19	Handwheel for maneuever	1	Steel alloy
20	Set screw	2	Stainless Steel
21	Protecting tube	1	Aluminium alloy
22	Trasparent tube	1	PVC
23	Protecting cap	1	Aluminium alloy
24	Key	1	Steel alloy
25*	Rivet	1	Steel alloy
26*	Indicator	1	Polipropilene
27	Lead nut maneuever	1	Steel alloy
28	Threaded bush (Only for DANV480)	2	Stainless Steel
29	Special spring cap	1	Aluminium alloy
30	Pin	1	Steel alloy
31	Screw maneuever	1	Steel alloy
32*	Dynamic seal (Piston)	2	Polyurethane
33*	Piston O'ring	2	Nitrilic rubber
34	Piston (modified)	1	Aluminium alloy
35*	Piston's support	4	P.T.F.E. carbo-graphite filled
36	Bush	2	Steel alloy
37	Rotative sleeve	2	Steel alloy
38*	Bounded	2	Steel alloy+Nitrilic rubber
39	Screw	2	Stainless Steel
40	Scotch yoke	1	Steel alloy
41	Shaft support	1	Acetalic resin
42	External elastic pin of the yoke	1	Steel alloy
43	Internal elastic pin of the yoke	1	Steel alloy
44	Shaft	1	Stainless Steel
45	Support bush	1	Acetalic resin
46	Lower sealing shaft	1	FKM
47	Cylinder	1	Aluminium alloy
48	Upper sealing shaft	1	FKM
49	External support ring	1	Acetalic resin
50	Rondella	1	Stainless Steel
51	Seeger	1	Stainless Steel
52	Piston (Standard)	1	Aluminium alloy
53*	Cap o'ring	1	Nitrilic rubber
54	Cap (Standard)	1	Aluminium alloy
55	Screw	4	Stainless Steel
56*	O'ring	1	Nitrilic rubber
57	Grub screw	1	Stainless Steel
58	Nut	1	Aluminium alloy
59	Insert for o'ring (Only for DANV106-240-360-720)	1	Stainless Steel
*Components of spare part kit

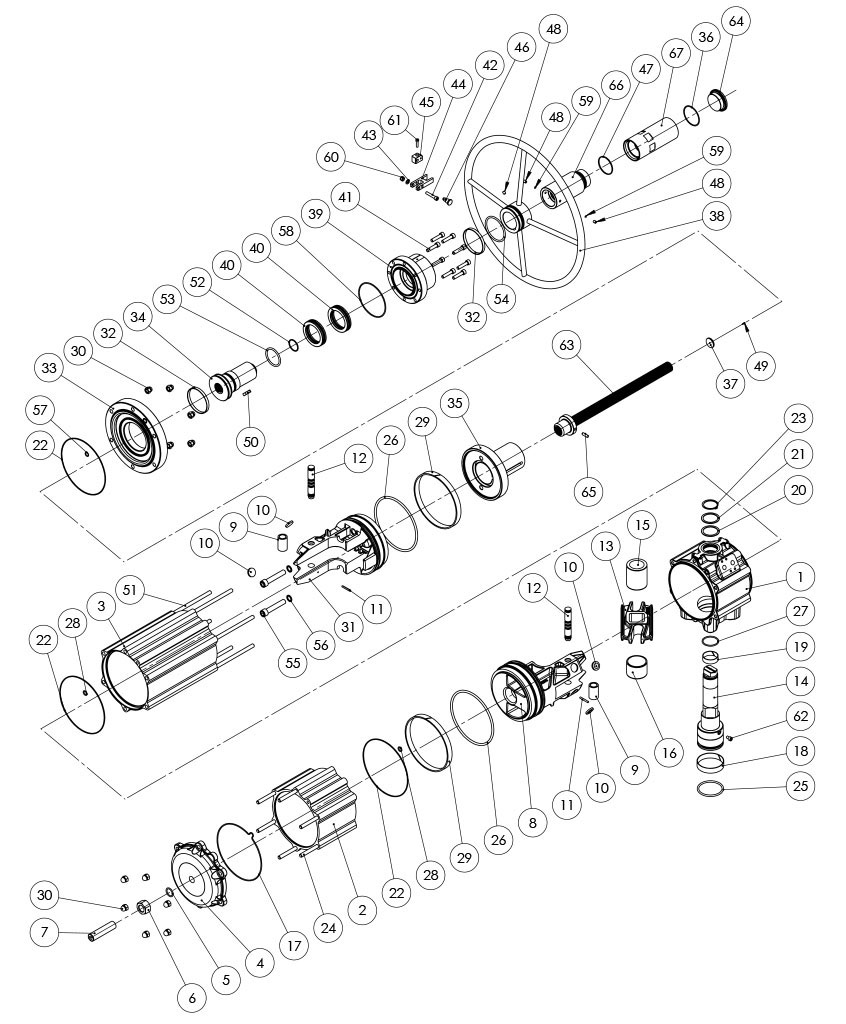

DOUBLE ACTING ACTUATOR COMPONENTS WITH MANUAL INTEGRATED HANDWHEEL - SIZE: DANV3840

MATERIALS DANV3840
Pos	Denomination	Q.ty	Material
1	Cylinder	1	Aluminium alloy
2	Cylinder	1	Aluminium alloy
3	Cylinder	1	Aluminium alloy
4	Cap (Standard)	1	Aluminium alloy
5*	O'ring	1	Nitrilic rubber
6	Nut	1	Stainless Steel
7	Grub screw	1	Stainless Steel
8	Piston (Standard)	1	Aluminium alloy
9	Bush	2	Steel alloy
10*	Piston's support	4	Acetalic resin
11	Pin	2	Steel alloy
12	Rotative sleeve	2	Steel alloy
13	Scotch yoke	1	Steel alloy
14	Shaft	1	Stainless Steel
15	Support bush	1	Acetalic resin
16	Shaft support	1	Acetalic resin
17*	Cap o'ring	1	Nitrilic rubber
18*	Bearing (shaft bottom)	1	P.T.F.E. carbo-graphite filled
19*	Bearing (shaft top)	1	P.T.F.E. carbo-graphite filled
20*	External support ring	1	Acetalic resin
21	Washer	1	Stainless Steel
22*	O'ring	3	Nitrilic rubber
23	Seeger	1	Stainless Steel
24	Screw	6	Stainless Steel
25*	Lower sealing shaft	1	FKM
26*	Piston o'ring	2	Nitrilic rubber
27*	Upper sealing shaft	1	FKM
28*	O'ring	2	Nitrilic rubber
29*	Bearing (piston head)	2	P.T.F.E. Carbo-Graphite filled
30	Nut	12	Stainless Steel
31	Piston (modified)	1	Aluminium alloy
32*	Bearings (Handwheel)	2	Poliuretano
33	Cap (modified)	1	Aluminium alloy
34	Lead nut maneuever	1	Steel alloy
35	Special spring cap	1	Steel alloy
36*	O'ring	1	Nitrilic rubber
37*	Indicator	1	Polypropylene
38	Handwheel for maneuever	1	Steel alloy
39	Flange	1	Aluminium alloy
40*	Thrust bearings	2	Steel alloy
41	Screw	8	Stainless Steel
42	Screw	1	Stainless Steel
43	Washer	1	Stainless Steel
44	Closing fork	1	Aluminium alloy
45	Fork support	1	Aluminium alloy
46	Lock wheel	1	Stainless Steel
47*	O'ring	1	Nitrilic rubber
48	Screw	3	Stainless Steel
49*	Rivet	1	Stainless Steel
50	Key	1	Stainless Steel
51	Screw	6	Steel alloy
52*	O'ring	1	Nitrilic rubber
53*	O'ring	1	Nitrilic rubber
54*	O'ring	1	Nitrilic rubber
55	Screw	2	Stainless Steel
56*	Bounded	2	Steel alloy+Nitrilic rubber
57*	O'ring	1	Nitrilic rubber
58*	O'ring	1	Nitrilic rubber
59*	Plug	2	P.T.F.E
60	Nut	1	Stainless Steel
61	Screw	1	Stainless Steel
62	Safety screw	1	Stainless Steel
63	Screw maneuever	1	Stainless Steel
64	Protecting cap	1	Aluminium alloy
65	Pin	1	Stainless Steel
66	Protecting tube	1	Aluminium alloy
67	Protecting removable tube	1	Aluminium alloy
*Components of spare part kit
