Item 385-386-387 butterfly valve

Item 385-386-387 butterfly valve

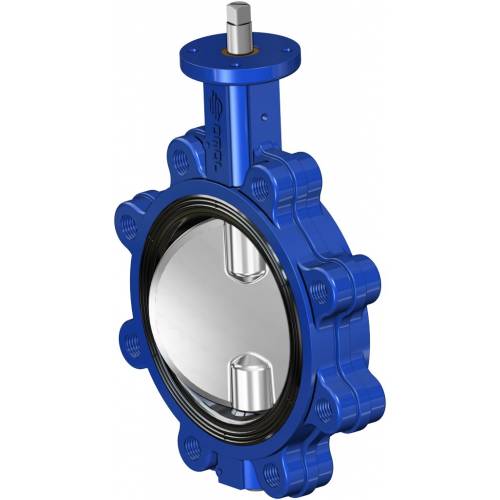

Cast iron butterfly valve for mounting between flanges, “Lug” type

ITEM 385
Body: Cast iron
Butterfly: Cast iron
Liner: see table
ITEM 386
Body: Cast iron
Butterfly: AISI 316
Liner: see table
ITEM 387
Body: Cast iron
Butterfly: Bronze aluminium
Liner: see table

CONFIGURE Drive
REQUEST INFORMATION
PAGE PRINT
  • benefits
  • features
  • dimensions
  • materials

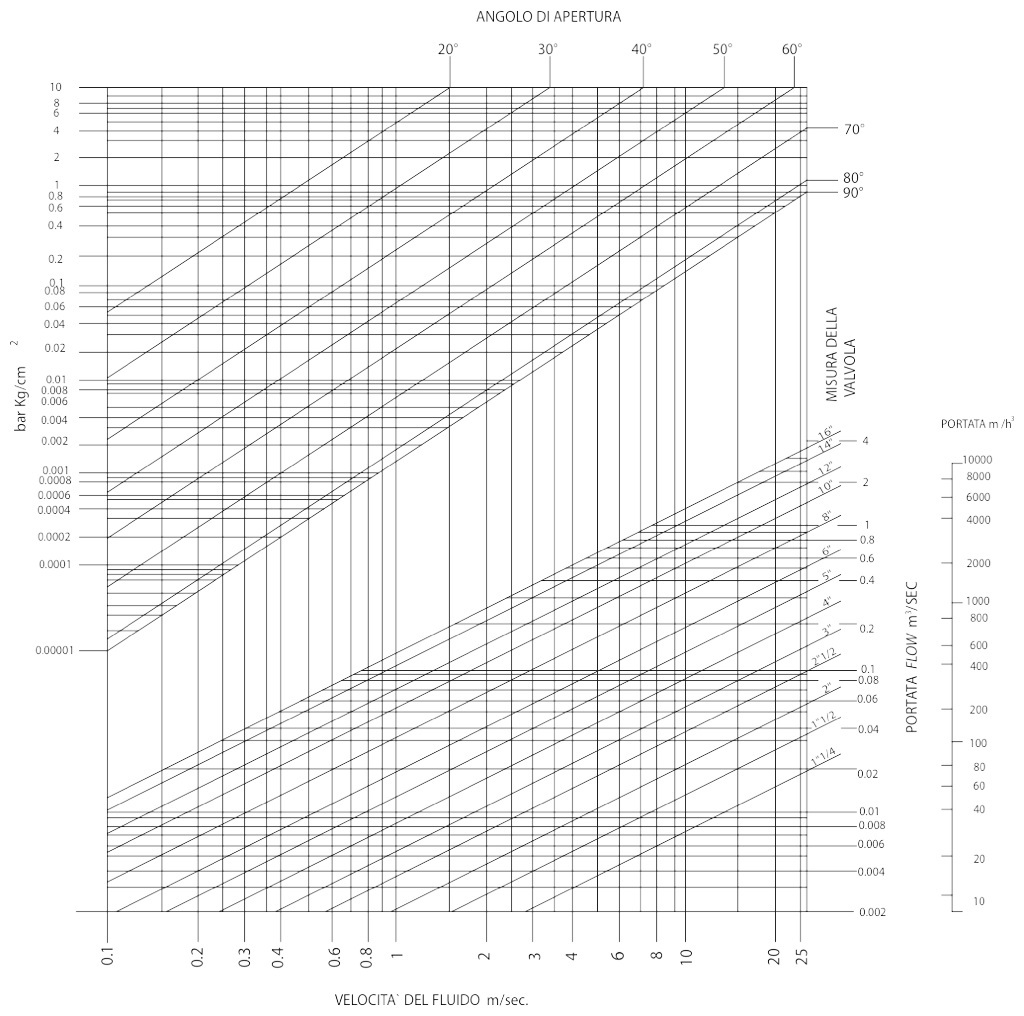

  • diagrams and breakaway torque
  • specifications
  • documents

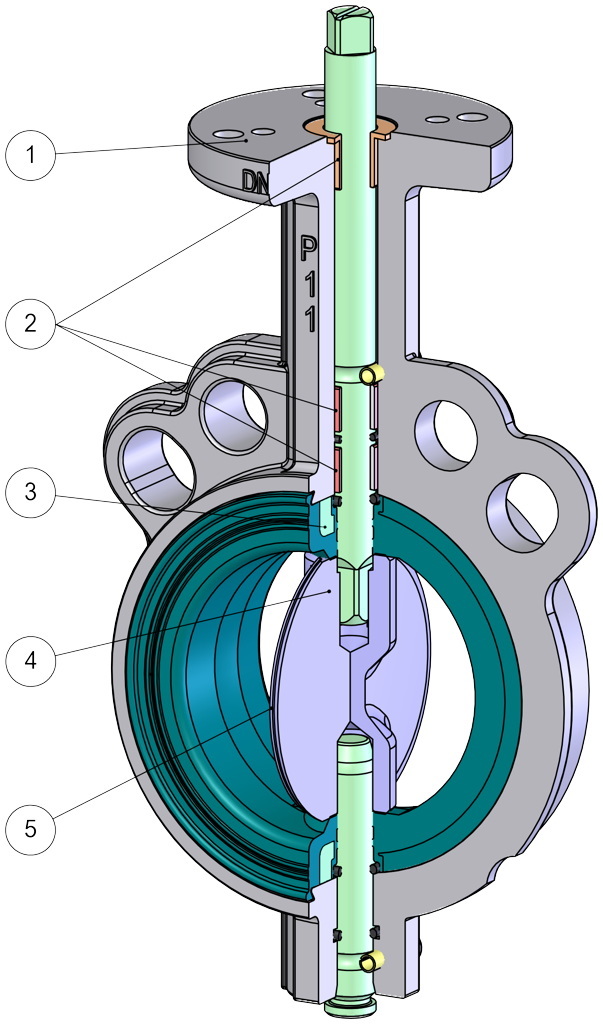

1. EN ISO 5211 top mounting
Easy coupling with every kind of drives.

2. Three guiding bushings on the shaft
It grants a perfect alignment of the shaft on the body and prevents oscillations even with high pressure.
Less friction between the shaft and body.

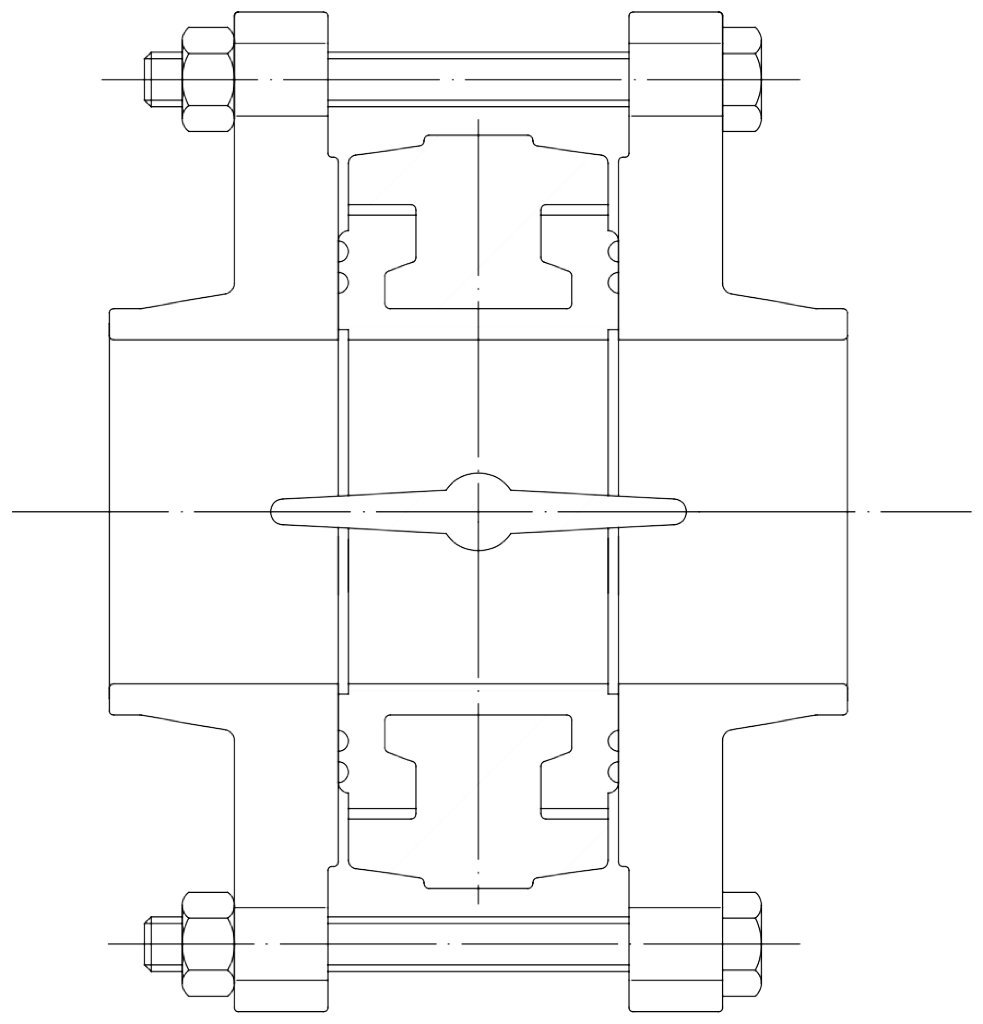

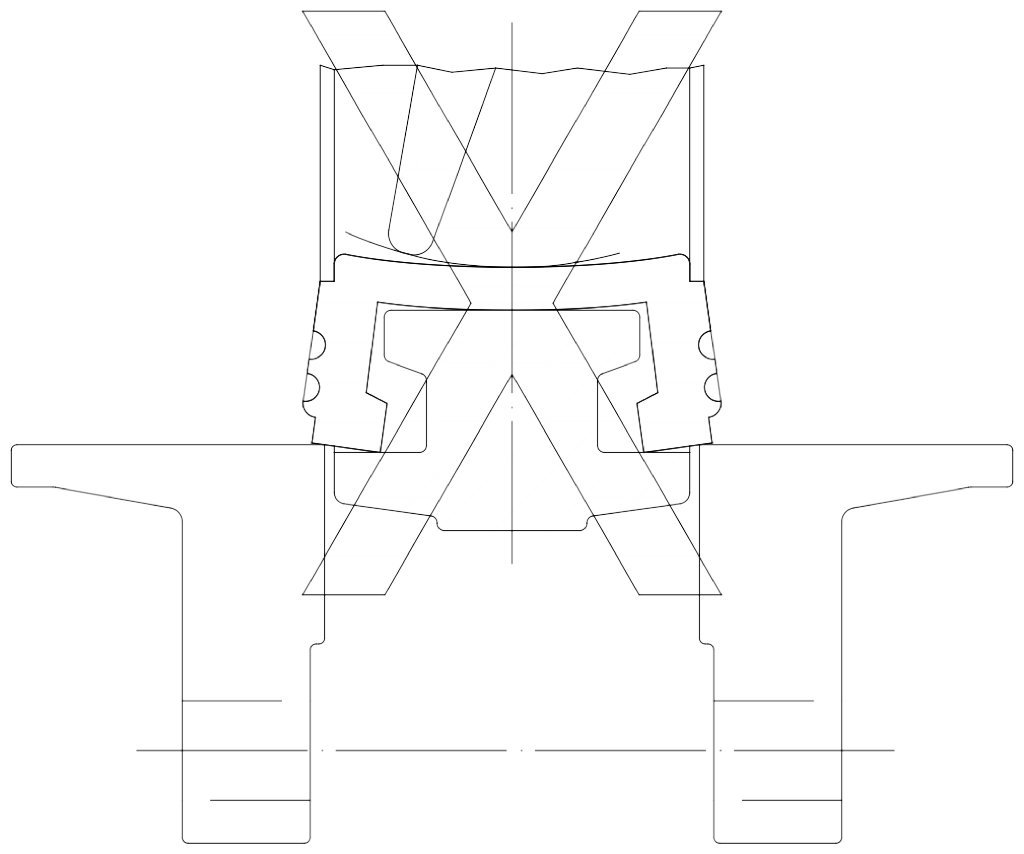

3. Vulcanized liner on rigid ring
Less deformation of the liner
Easy assembly / disassembly of the liner for maintenance
No deformation of the liner between the flanges during assembly
Greater dimensional accuracy during the injection/molding

4. Shaft in 2 pieces without fixing components
Easy assembly / disassembly of the disc for maintenance
Higher Kv thanks to the central section of the disk thinner than a valve with a single shaft

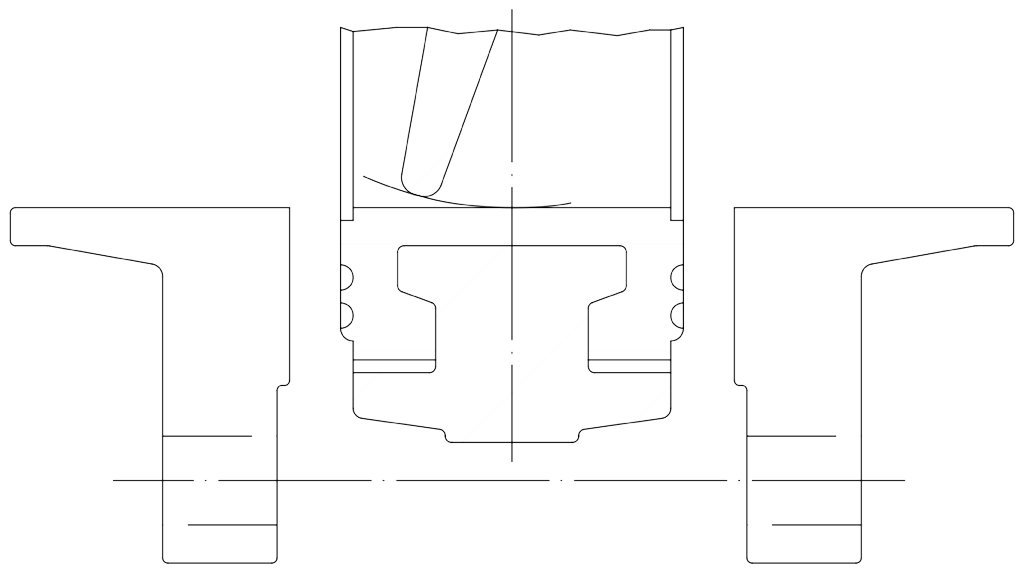

5. Lapped surface of the disc's circumference
Better tightness and less wear of the liner
Lower torque due to less friction between the disc and liner

Wide range of LINER materials
Various applications possibility

ATEX Certificate
Installation is allowed in a potential explosive environment

PED Certificate
Full compliance with European Safety Standards for Pressure Equipment

GENERAL FEATURES:
OMAL butterfly valves, available in wafer or lug version from DN 40 to DN 600 (lug DN 300), are designed and manufactured to be used in most applications in all industrial fields.

  • General requirements in accordance with UNI EN593
  • Face to face as per EN 558 series 20
  • Tightness at 16 bar according to EN 12266-1 rate A
  • Integral sealing (with liner vulcanized on hard ring) which avoids any contact between fluid and valve body.
  • Sealing design allowing perfect adherence to the valve body and perfect tightness to the flanges, without additional parts. Clamping between flanges does not influence the torque of the valve.
  • Lapped disc edges that allows better tightness, reduced torque and low wear of the liner.
  • Bushes to support the shaft.
  • Coupling between stem and disc with two shafts (better Kv) carried out with no additional fittings (e.g. screws, bolts, pins, etc.) to avoid any risk of corrosion and breaking.
  • Also facilitated any disassembly for maintenance or cleaning.
  • Valve neck with top work as per EN ISO 5211 for easy connections with all different types of actuators.
  • All components properly treated against corrosion.
OMAL will be free to change all specifications and data included in this catalogue at any time, so as to improve the quality and the performance of its products.

STANDARD EXECUTIONS:
• Available range: from DN 40 to DN 300 PN 10 - PN 16.
• Standard flanges: PN 10=PN 16 - from DN 40 to DN 150; PN 10 or PN 16 from DN 200 to DN 300.
• On request PN 16 from DN 200 to DN 300.
• General requirements in accordance with UNI EN593.
• Face to face as per EN 558 serie 20.
• Valve head as per ISO 5211.
• Tightness as per EN 12266-1 rate A.
• Other tests on request.
• Operating temperature of liners:
EPDM: from -25°C to +135°C;
NBR: from -23°C to +82°C;
FKM: from -10°C to +190°C;
PTFE (on EPDM core): from -25°C to +135°C.
• Working pressure between flanges: PN 16 bar for DN 40 to DN 150; PN 10 or PN 16 bar

ON REQUEST:
• Working temperature for special liners:
SILICONE: from -25°C to +160°C;
NBR CARBOX: from -10°C to +82°C;
NBR WHITE for food: from -23°C to +82°C;
HNBR: from -20°C to +120°C.
• For other applications, please contact our sales department.

CERTIFICATIONS:
• According to 2014/68/EU “PED”.
• DVGW homologation for gas (V386).
• RINA homologation.
• Conformity to the italian D.M.n°174 suitable with drinking water and alimentary fluid (V386).
• ATEX version in conformity with European Directive 2014/34/EU.
• ATEX certificate on request (For valves with PTFE liner, up to DN 200 only).

 DIMENSIONS
  SIZE
PN
A
B
ØC
ØD
ØE
ØF
□G
ØI
P
Q
R
S
ØT
U
ØZ
Holes
DN [mm]
[inch]
DN 40
1"1/2
10-16
33
36
50
70
6,5
8,5
9
110
70
125
31
9
14,2
118
M16
4
DN 50
2"
10-16
43
46
50
70
6,5
8,5
9
125
80
140
31
9
14,2
125
M16
4
DN 65
2"1/2
10-16
46
49
50
70
6,5
8,5
11
145
86
152
33
11
14,2
139
M16
4
DN 80
3"
10-16
46
49
50
70
6,5
8,5
11
160
95,5
159
33
11
14,2
184
M16
8
DN 100
4"
10-16
52
56
50
70
6,5
8,5
11
180
108
178
33
11
14,2
204
M16
8
DN 125
5"
10-16
56
59
70

8,5

14
210
124,5
190,5
36
14
19
230
M16
8
DN 150
6"
10-16
56
59
70

8,5

14
240
137
203
36
14
19
266
M20
8
DN 200
8"
10
60
64
70

8,5

17
295
166
238
39
17
22,2
318
M20
8
DN 250
10"
10
68
72
102
125
11
13
17
350
199
268
50
17
28,5
395
M20
12
DN 300
12"
10
78
81,5
102
125
11
13
22
400
234
306
55
22
28,5
448
M20
12
DN 200
8"
16
60
64
70

8,5

17
295
166
238
39
17
22,2
329
M20
12
DN 250
10"
16
68
72
102
125
11
13
22
355
199
268
55
22
28,5
395
M24
12
DN 300
12"
16
78
81,5
102
125
11
13
22
410
234
306
55
22
28,5
448
M24
12

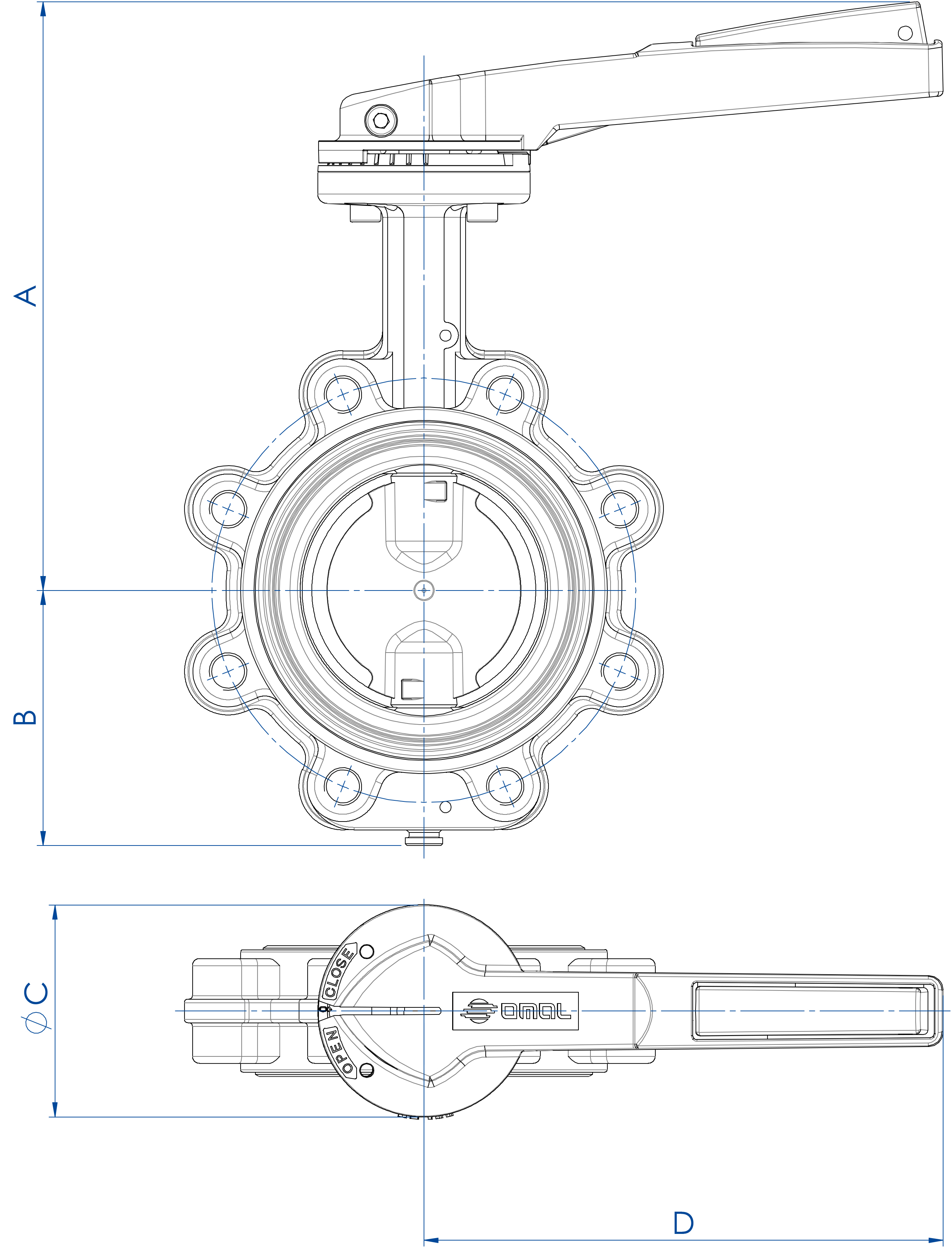

LEVER FEATURES
10-position lever; lockable in each position
Material: Aluminium;
Surface coating: polyester
Weight: from 0,3 to 0,9 Kg.

  DIMENSIONS
  SIZE
A
B
øC
D
Kg
DN [mm]
[inch]
DN 40
1" 1/2
188
70
90
160
2,5
DN 50
2"
203
80
90
160
3,4
DN 65
2" 1/2
225
86
90
220
4,3
DN 80
3"
230
95,5
90
220
5,5
DN 100
4"
250
108
90
220
6,6
DN 125
5"
277
124,5
90
350
9
DN 150
6"
290
137
90
350
11,4
DN 200
8"
325
166
90
350
17,5

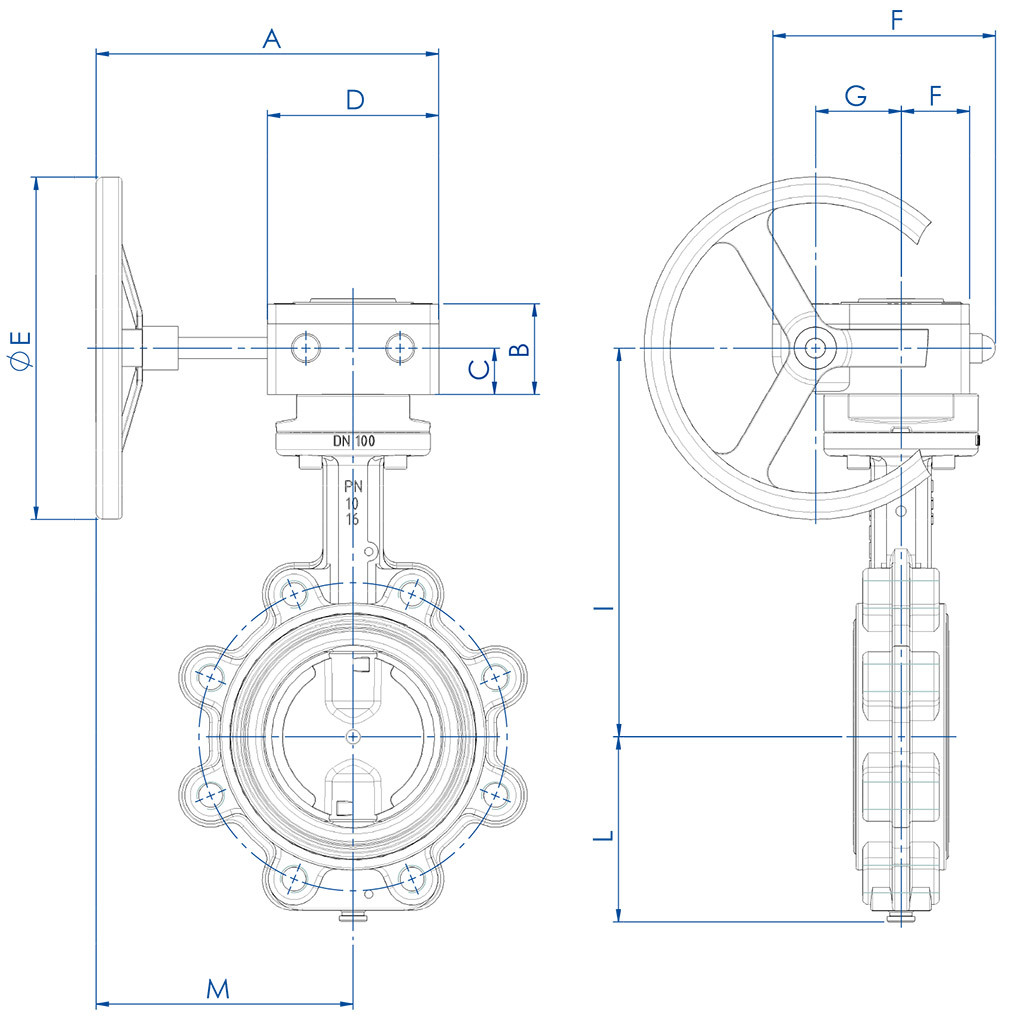

GEAR BOX FEATURES
Designed tested mechanism, working through pinion and worm.
Visual indicator gives the position of the valve
Aluminium alloy carter for the gear box “RF0 " type, cast iron for the gear box “RRM..." Type
Cast iron pinion.
Worm gear in hardened steel.
Steel wheel.
Epoxy painted external surface.

 DIMENSIONS
SIZE
PN
A
B
C
D
ØE
F
G
H
I
L
M
Kg
DN [mm]
[inch]
DN 40
1"1/2
10-16
200
49
24
80
140
115
42
35
171,2
70
160
3,6
DN 50
2"
10-16
200
49
24
80
140
115
42
35
185,9
80
160
4,5
DN 65
2"1/2
10-16
200
54
27
100
200
130
50
40
201,6
86
150
5,9
DN 80
3"
10-16
200
54
27
100
200
130
50
40
208
95,5
150
7,1
DN 100
4"
10-16
200
54
27
100
200
130
50
40
227
108
150
8,2
DN 125
5"
10-16
200
54
27
100
200
130
50
40
239,7
124,5
150
10,2
DN 150
6"
10-16
200
54
27
100
200
130
50
40
252,4
137
150
12
DN 200
8"
10
250
70,5
40,5
140
300
175
60
60
300,7
166
180
21,6
DN 250
10"
10
250
70,5
40,5
140
300
175
60
60
342
199
180
29,8
DN 300
12"
10
250
70,5
40,5
140
300
175
60
60
380
234
180
45,1
DN 200
8"
16
250
70,5
40,5
140
300
175
60
60
300,7
166
180
21,6
DN 250
10"
16
250
70,5
40,5
140
300
175
60
60
342
199
180
29,8
DN 300
12"
16
250
70,5
40,5
140
300
175
60
60
380
234
180
45,1

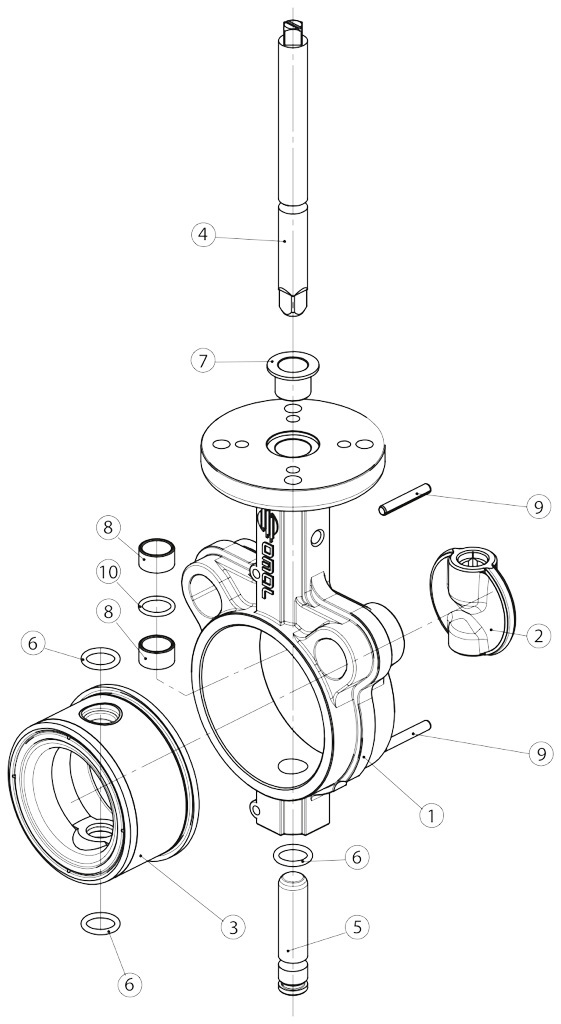

 MATERIALS
1
Body
A536 65-45-12 (GGG50) (Equivalent to EN-GJS-450-10 EN-JS 1040)
2
Disc
A536 65-45-12 (GGG50) - A351 CF8M (316 S.S.)
3*
Liner
EPDM-NBR
4
Upper shaft
A276 S42000 (420 S.S.) (Equivalent to X20CR13; 1.4021)
5
Lower shaft
A276 S42000 (420 S.S.) (Equivalent to X20CR13; 1.4021)
6*
Lower O-ring
EPDM-NBR (a with part. 3 in   FKM)
7*
Upper bush
Epoxy resin
8*
Shaft bush
Epoxy resin with PTFE from DN40 to DN300, Bronze from DN350 to DN600
9*
Elastic pin
Stainless steel
10*
Shaft O-ring
EPDM-NBR
*Components of spare part kit KGF.
If other valve materials are required, please contact our offices.

BODY
DN40 - 600
CAST IRON A536 65-45-12 *
EPOXY COATED
RAL 5015*

STEM
STAINLESS STEEL A276 S4200 *
STAINLESS STEEL A564 TP 630

DISC
DN40 - 600

CAST IRON A536 65-45-12*
CHEMICAL NICKEL PLATING

STAINLESS STEEL A351-CF8M (316 S.S.)*
STAINLESS STEEL A351-CF3M (316 S.S.) POLISHED

BRONZE/ALUMINIUM B148C95400 *

*Standard OMAL supply

LINER
DN40 - 600

EPDM*
NBR*
DN40 - 300
FKM*
PTFE ON EPDM*

WHITE NBR
POTABLE WATER WHITE NBR
HNBR
CARBOX NBR
SILICONE

MATERIAL APPLICATIONS
MATERIAL
FEATURES
APPLICATIONS
CAST IRON A536 65-45-12
Mechanical strength as good as stainless steel
General applications
Used as a standard for body and disc
BRONZE - ALUMINIUM
Good corrosion resistance
Corrosive fluids, sea water
RILSAN COATED
Excellent corrosion resistance
General applications
Used as a standard for body and disc
STAINLESS STEEL A351-CF8M
Excellent corrosion resistance
Food, chemical, pharmaceutical...etc
EPDM
Temperature limits (°C): -50°/+150°. Operating temperature (°C):
-40°/+135. Unsuitable for hydrocarbons.
Water (soft, sea, glycolic and industrial), steam, ozone, bases and diluted acids, acetic solvents, alcohol, caustic soda, atmospheric agents.
NBR
Good abrasion/wear resistance. Good chemical and mechanical srenght to mineral oils, some hydrocarbons and aliphatic solvents. Operating temperature (°C): -23
/ + 82. Unsuitable for acetone, ketones, nitrates and chlorinated hydrocar- bons.
General applications, compressed air, cold water, hydraulic fluids, methane, butane, petroleum, sea water,
abrasive materials for pneumatic circuits, animal and vegetables fats.
WHITE NBR
Good abrasion/wear resistance. Good chemical and mechanical srenght to mineral oils, some hydrocarbons and aliphatic solvents. Operating temperature (°C): -23
/ + 82. Unsuitable for acetone, ketones, nitrates and chlorinated hydrocar- bons.
General applications, compressed air, cold water, hydraulic fluids, methane, butane, petroleum, sea water and abrasive materials for pneumatic circuits.
POTABLE WATER WHITE NBR
Suitable for potable water accordingly to italian law D.L. 174/2004. Operating temperature (°C): -23
/ + 82. Unsuitable for acetone, ketones, nitrates and chlorinated hydrocar- bons.
General applications, compressed air, cold drinking water, hydraulic fluids, methane, butane, petroleum, sea water and abrasive materials for pneumatic circuits.
CARBOX NBR
Good abrasion/wear resistance. Good chemical and mechanical srenght to mineral oils, some hydrocarbons and aliphatic solvents. Operating temperature (°C): -10
/ + 82. Unsuitable for acetone, ketones, nitrates and chlorinated hydrocar- bons.
Abrasive dusts and fluids
HNBR
Good abrasion/wear resistance. Good chemical and mechanical srenght to mineral oils, some hydrocarbons and aliphatic solvents. Operating temperature (°C): -20
/ +120. Unsuitable for acetone, ketones, nitrates and chlorinated hydrocar- bons.
General applications, compressed air, cold water, hydraulic fluids, methane, butane, petroleum, sea water and abrasive materials for pneumatic
circuits.
FKM
Excellent chemical and mechanical strenght to heat, atmospheric agents, benzoic solvents. Gas-proof. Unsuitable for steam and boi- ling water. Operating temperature (°C): -10
/ +190.
Solvents (acetic excluded), solid hydrocarbons, oxygenating fuels, acids, bases, hydraulic fluids, oils.
HIGH TEMPERATURE SILICONE
Excellent chemical and mechanical strenght to steam and superhheated water (150°C).
Operating temperature (°C): -25 / +160.
Air or hot inert gas (Temperature limits (°C): +180), food industry, water, steam.
PTFE ON EPDM
Excellent chemical strenght to solvents and corrosive products. Unsuitable for abrasive fluids, alkaline metals ( potassium, sodium), gaseous fluorine.
Operating temperature (°C): -25 / +135.
Very corrosive products for chemical industry and food industry.
NOTE: The table above lists typical features and applications of all “OMAL” products. Nevertheless, if unusual situations occur (i.e. special applications, contacts with particular fluids, extraordinary pressure or temperature conditions, ...) the elements which determine corrosion and abrasion might change and, as a consequence, metal performances might change, too. It is always the customer who has to choose the right material; however, our technical department is willing to meet all customers requests.

BREAKAWAY TORQUES Nm
SIZE
DN 40 1"1/2
DN 50
2"
DN 65 2"1/2
DN 80
3"
DN 100
4"
DN 125
5"
DN 150
6"
DN 200
8"
DN 250
10"
DN 300
12"

PN 10 bar
15
15
17
19
27
36
54
109
145
218
PN 16 bar
18
18
25
27
35
52
72
142
170
250


Torque can vary depending on temperature and type of fluid; a safety factor of 1.4 must be applied. Torque can drop on high frequency of operations. The actuator/valve sizing, indicated on the following pages, are based for valves to be used with liquids or gaseous fluids, clean, and for medium temperatures. For further information, or different uses please contact our technical department.

Pressure loss-flow diagram

Example of flow-pressure and pressure drop in a 6” (DN. 150) valve with a water flow of 0,1 m3/sec. and a rotation angle of 90°:
1) Determine the point where the valve flow and diameter lines meet
2) Draw a vertical line from the above-mentioned point to the 90° straight line; then draw a horizontal line from this point to the flow-pressure loss scale, where you’ll read the requested value (0,038 bar).
3) Starting from point 1 and going down the fluid speed scale, you’ll read the fluid speed values (5 m/sec.)

Mounting instructions

When the valve is being inserted, the flanges must be at such a distance from one another to make inspection possible without any contacts between flanges and sealing. Meanwhile, the butterfly must be kept in “half-closed” position.

After inserting the valve between the flanges, but before screwing the bolts up, the butterfly must be switched into the “open” position. Otherwise, you might damage or permanently deform the sealing, while closing the valve.

Example of wrong mounting: the flanges are not open enough and the sealing might be damaged.

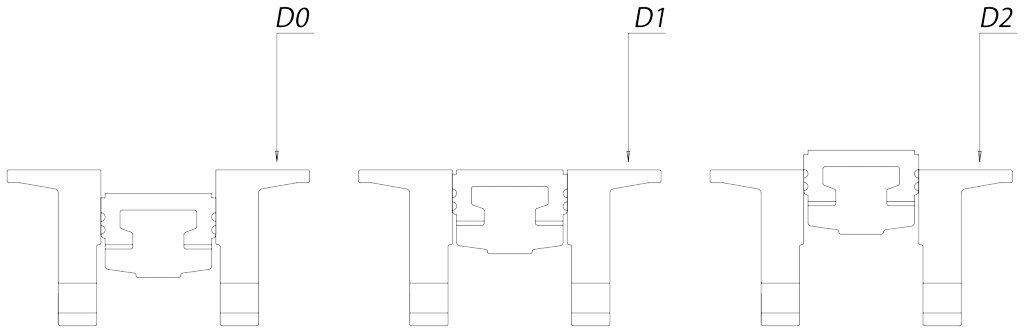

OMAL butterfly valves are assembled between pipe flanges without other rings and they are centered by means of tie-rods and fixing screws. Their diameter must conform to the following values.
D0 minimum flange diameter necessary for the inspection of the valve (with a perfectly centered valve)
D1 maximum flange diameter which allows the best possible uses
D2 maximum flange diameter which allows uses at low pressure. If you need any other information, please contact our technical department.

  FLANGE SIZE
 Diameter
DN 40
DN 50
DN 65
DN 80
DN 100
DN 125
DN 150
DN 200
DN 250
DN 300
DN 350
DN 400
DN 450
DN 500
DN 600
D0 [mm]
30
36
51
67
93
119
143
196
247
297
329
376
426
475
573
D1 [mm]
45
57
69
82
107
133
154
206
257
310
338
390
441
492
596
D2 [mm]
51
68
80
93
116
148
170
221
276
327
346
399
450
500
602

CONFIGURE DRIVE
Select the search standards
FIND ITEM
X CLOSE

NEXT EVENT

Valve World 2024
Valve World 2024
Düsseldorf (Germany), 3rd - 5th December 2024
