HOME » Products » Ball valves / Other stainless steel ball valves /
Item 448 stainless steel ball valves
DA pneumatic actuator
Download General catalogue
Download Actuator Accessories Catalogue
Decoding MAGNUM & THOR
Configure your product
Download 2D and 3D files in various formats
iconaDisegni
Download Sales conditions
Macro Ball valves
Category Other stainless steel ball valves
Valve Item 448 stainless steel ball valves
Drive DA pneumatic actuator

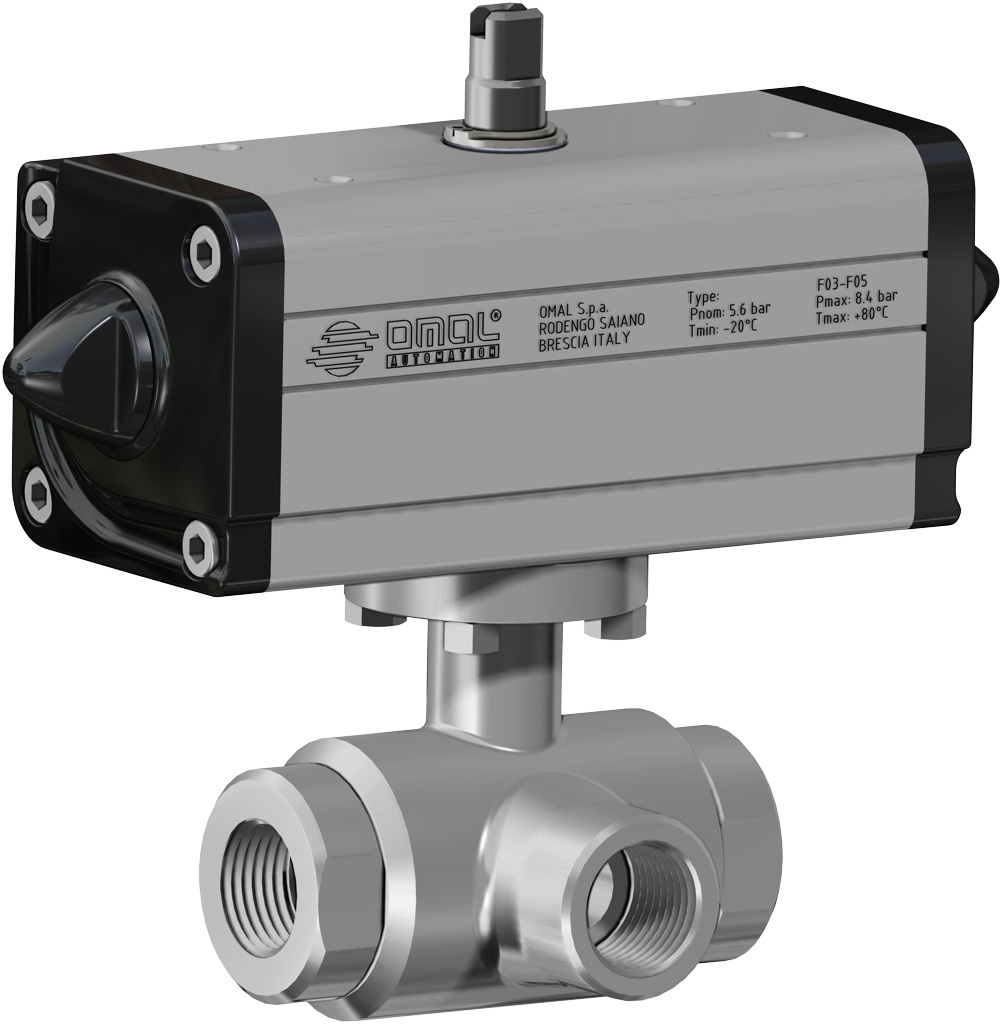

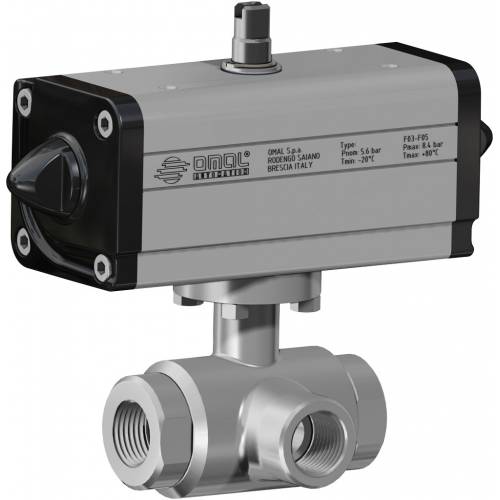

3-way full-bore threaded-ends stainless steel ball valve, “L” port
REQUEST INFORMATION
Stainless steel

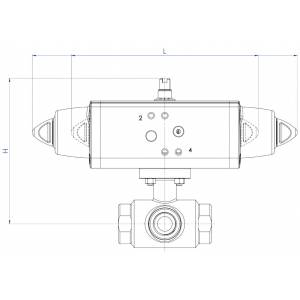

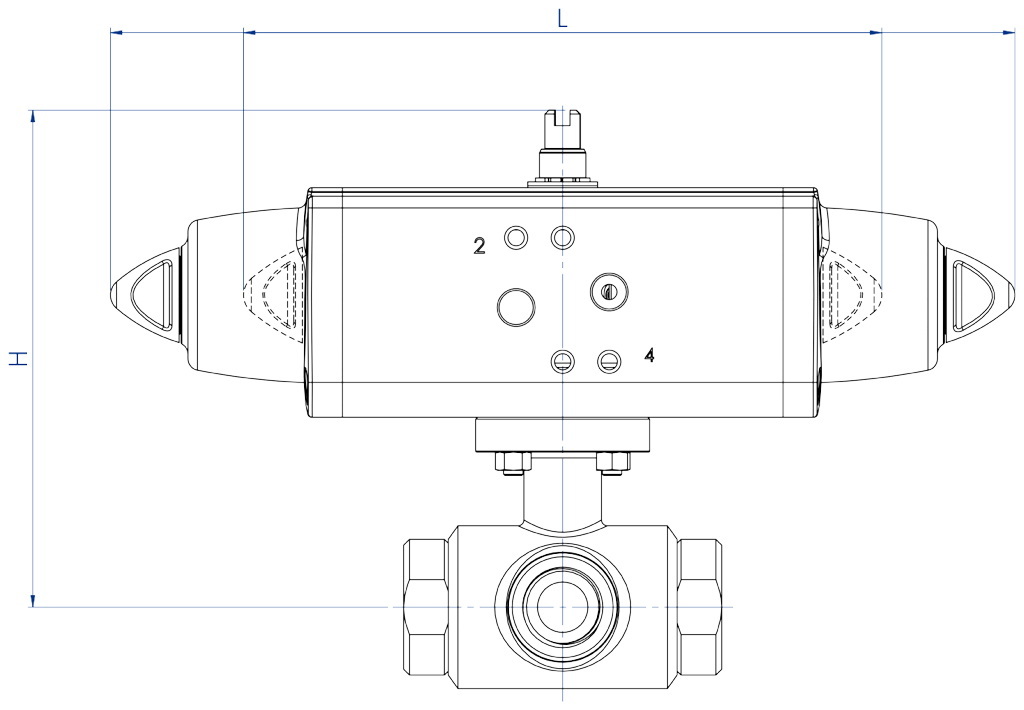

Article Size Nominal pressure Actuator Valve H [mm] L [mm] Weight [kg] Specification Mounting kit
DG448H003 DN 10 3/8” PN 40 DAN0015411S V448H403 118.2 159 1.3 KCF045293
DG448H003YX DN 10 3/8” PN 40 DAN0015411S V448H403 118.2 159 1.3 ATEX KCF045293
DG448H004 DN 15 1/2” PN 40 DAN0015411S V448H404 121.2 159 1.5 KCF045293
DG448H004YX DN 15 1/2” PN 40 DAN0015411S V448H404 121.2 159 1.5 ATEX KCF045293
DG448H005 DN 20 3/4” PN 40 DAN0030411S V448H405 135.7 174.2 2.7 KCF045294
DG448H005YX DN 20 3/4” PN 40 DAN0030411S V448H405 135.7 174.2 2.7 ATEX KCF045294
DG448H006 DN 25 1” PN 40 DAN0030411S V448H406 140.2 174.2 3.1 KCF045294
DG448H006YX DN 25 1” PN 40 DAN0030411S V448H406 140.2 174.2 3.1 ATEX KCF045294
DG448H007 DN 32 1” 1/4 PN 25 DAN0060412S V448H407 171.9 198 4.7 KCF055296
DG448H007YX DN 32 1” 1/4 PN 25 DAN0060412S V448H407 171.9 198 4.7 ATEX KCF055296
DG448H008 DN 40 1” 1/2 PN 25 DAN0060412S V448H408 179.4 198 6.7 KCF055296
DG448H008YX DN 40 1” 1/2 PN 25 DAN0060412S V448H408 179.4 198 6.7 ATEX KCF055296
DG448H009 DN 50 2” PN 25 DAN0106411S V448H409 194.8 237 9.1 KCF075298
DG448H009YX DN 50 2” PN 25 DAN0106411S V448H409 194.8 237 9.1 ATEX KCF075298
DG448H010 DN 65 2” 1/2 PN 25 DAN0120411S V448H410 208.5 244.1 11.8 KCF075298
DG448H010YX DN 65 2” 1/2 PN 25 DAN0120411S V448H410 208.5 244.1 11.8 ATEX KCF075298
DG448H011 DN 80 3” PN 16 DAN0240411S V448H411G 257.1 313.6 22.4 KCF105300
DG448H011YX DN 80 3” PN 16 DAN0240411S V448H411G 257.1 313.6 22.4 ATEX KCF105300
DG448H012 DN 100 4” PN 16 DAN0360411S V448H412G 279 339.3 34.2 KCF105300
DG448H012YX DN 100 4” PN 16 DAN0360411S V448H412G 279 339.3 34.2 ATEX KCF105300
