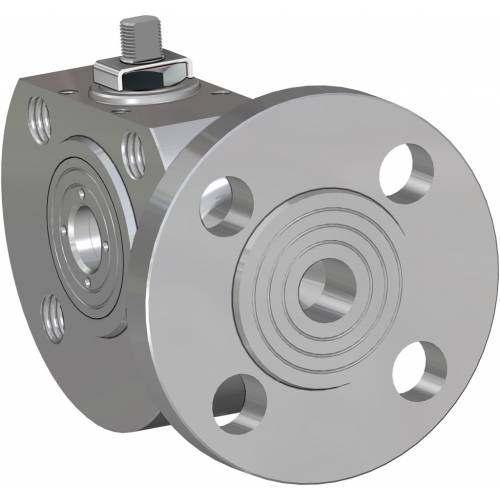

GENERAL FEATURES: • The valve works only as a diverter. The closure can only take place from the central way; check diagram. • Flanges as per: EN 1092-1 PN40 fino a DN50; PN16 DN65,80,100 • Working temperature: from -20°C to +150°C (+200° C with special seals) • Working pressure: PN 40 up to DN50 PN16 above • Intercepted fluid: water, petroleum products, petrochemicals and other aggressive liquids. • Reduced bore.
ON REQUEST: • Seals made of: PTFE glass filled, PTFE with carbon graphite • “T” port , see mounting plan • For other applications, please contact our technical department.
CERTIFICATIONS: • ATEX version in conformity with European Directive 2014/34/EU. • ATEX certificate on request.

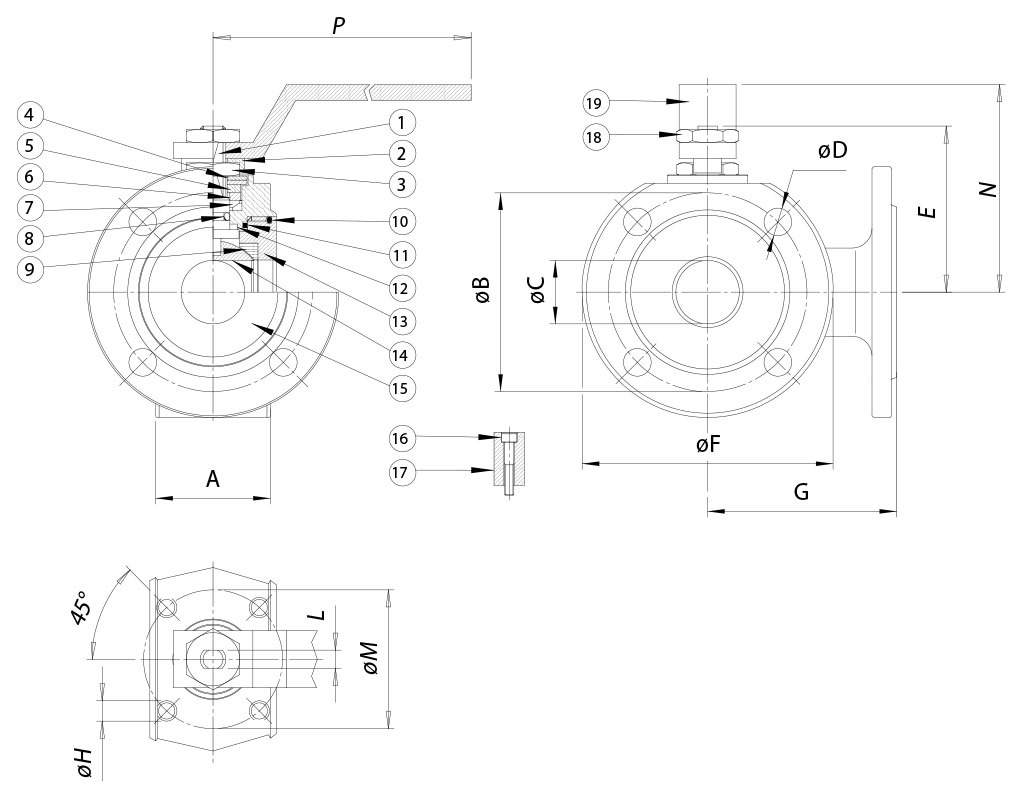

DIMENSIONS
SIZE
A
øB
øC
øD
E
øF
G
øH
L
øM
N
P
DN [mm]
[inch]
DN 15
1/2"
35
65
10
M12X4
48
90
85
M5
6
36
65
140
DN 20
3/4"
38
75
15
M12X4
51
100
90
M5
6
36
70
140
DN 25
1"
43
85
20
M12X4
62,5
110
90
M5
8
42
82
180
DN 32
1" 1/4
54
100
25
M16X4
67
130
105
M5
8
42
85
180
DN 40
1" 1/2
66
110
32
M16X4
80
140
120
M6
10
50
102
230
DN 50
2"
83
125
40
M16X4
87
150
130
M6
10
50
110
230
DN 65
2" 1/2
103
145
50
M16X4
119,5
175
150
M8
14
70
137,5
350
DN 80
3"
122
160
65
M16X8
129,5
190
175
M8
14
70
150
350
DN 100
4"
153
180
78
M16X8
148,5
220
185
M10
16
102
165
508
MATERIALS
1
Shaft
316 S.S.
1.4401
UNI X5CrNiMo 17 12
2
Nut holder
304 S.S.
1.4301
UNI X5CrNi 18 10
3
Lock nut
304 S.S.
1.4301
UNI X5CrNi 18 10
4
Belleville washer
301 S.S.
1.4310
UNI X5CrNiMo 17 12
5
Ring
304 S.S.
1.4301
UNI X5CrNi 18 10
6*
Gland nut ring
304 S.S.
1.4301
UNI X5CrNi 18 10
7*
Top sealing
P.T.F.E.
8*
O-ring
FKM
9*
Seals
P.T.F.E.
10*
O-ring
FKM
11*
Ring nut sealing
P.T.F.E.
12*
Bottom sealing
P.T.F.E.
13
Ring nut
316 S.S.
1.4401
UNI X5CrNiMo 17 12
14
Ball
316 S.S.
1.4401
UNI X5CrNiMo 17 12
15
Body
316 S.S.
1.4408
16
Holder screw
304 S.S.
1.4301
UNI X5CrNi 18 10
17
Holder
304 S.S.
1.4301
UNI X5CrNi 18 10
18
Lever nut
304 S.S.
1.4301
UNI X5CrNi 18 10
19
Lever
304 S.S.
1.4301
UNI X5CrNi 18 10
* Components of spare part kit KGBV44...

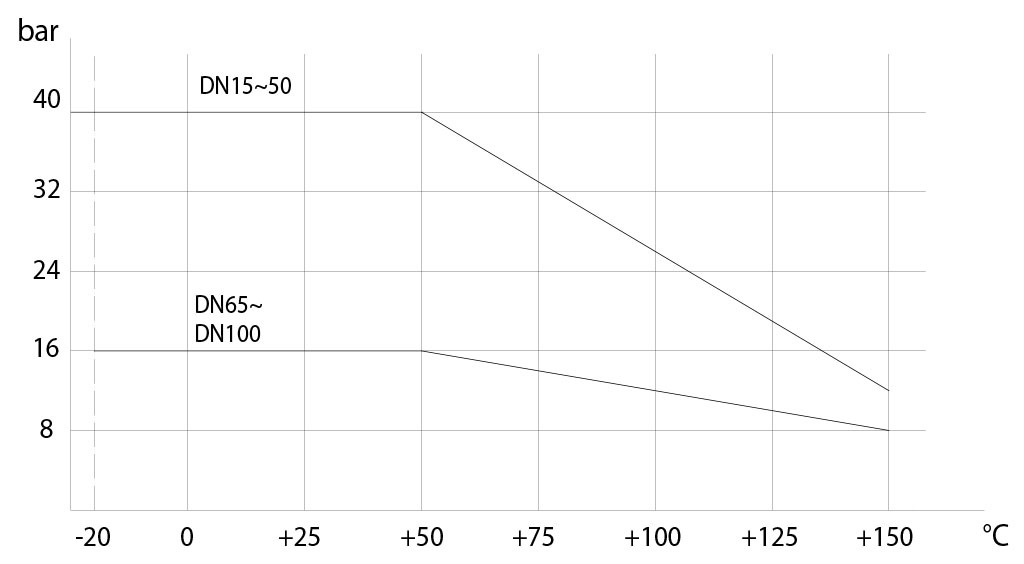

Pressure/temperature diagram
BREAKAWAY TORQUES Nm
SIZE
DN 15 1/2"
DN 20 3/4"
DN 25 1"
DN 32 1"1/4
DN 40 1"1/2
DN 50 2"
DN 65 2"1/2
DN 80 3"
DN 100 4"
PN 16 bar
85
128
212
PN 40 bar
8
13
20
30
42
61
Torque can vary depending on temperature and type of fluid; a safety factor of 1.4 must be applied. Torque can drop on high frequency of operations. The actuator/valve sizing, indicated on the following pages, are based for valves to be used with liquids or gaseous fluids, clean, and for medium temperatures. For further information, or different uses please contact our sales department.

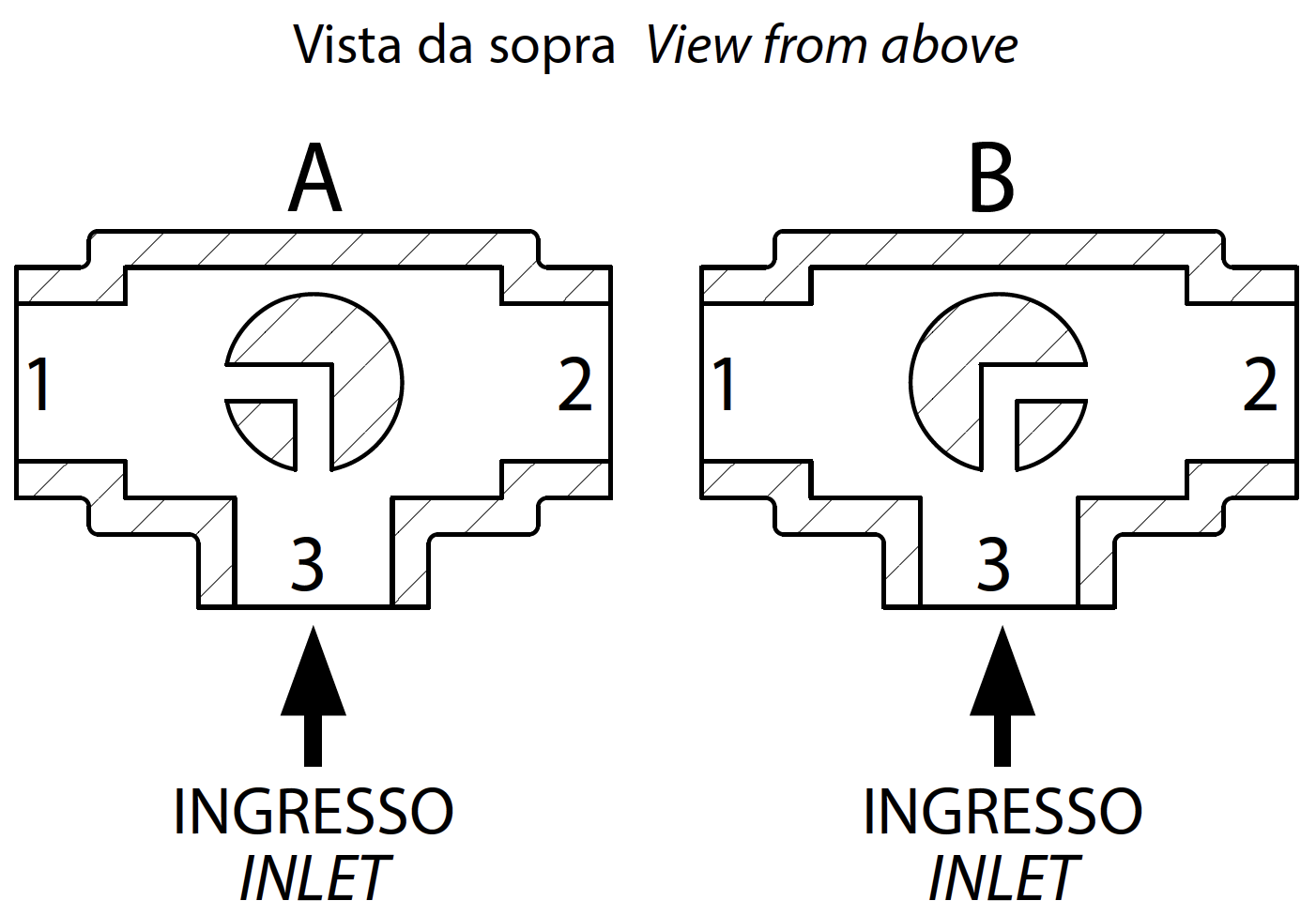

Plan for "L" port
N.B.: “A” must be the rest position of the ball with SR FAIL CLOSE actuator. “B” must be the rest position of the ball with SR FAIL OPEN actuator.
Plan for L port

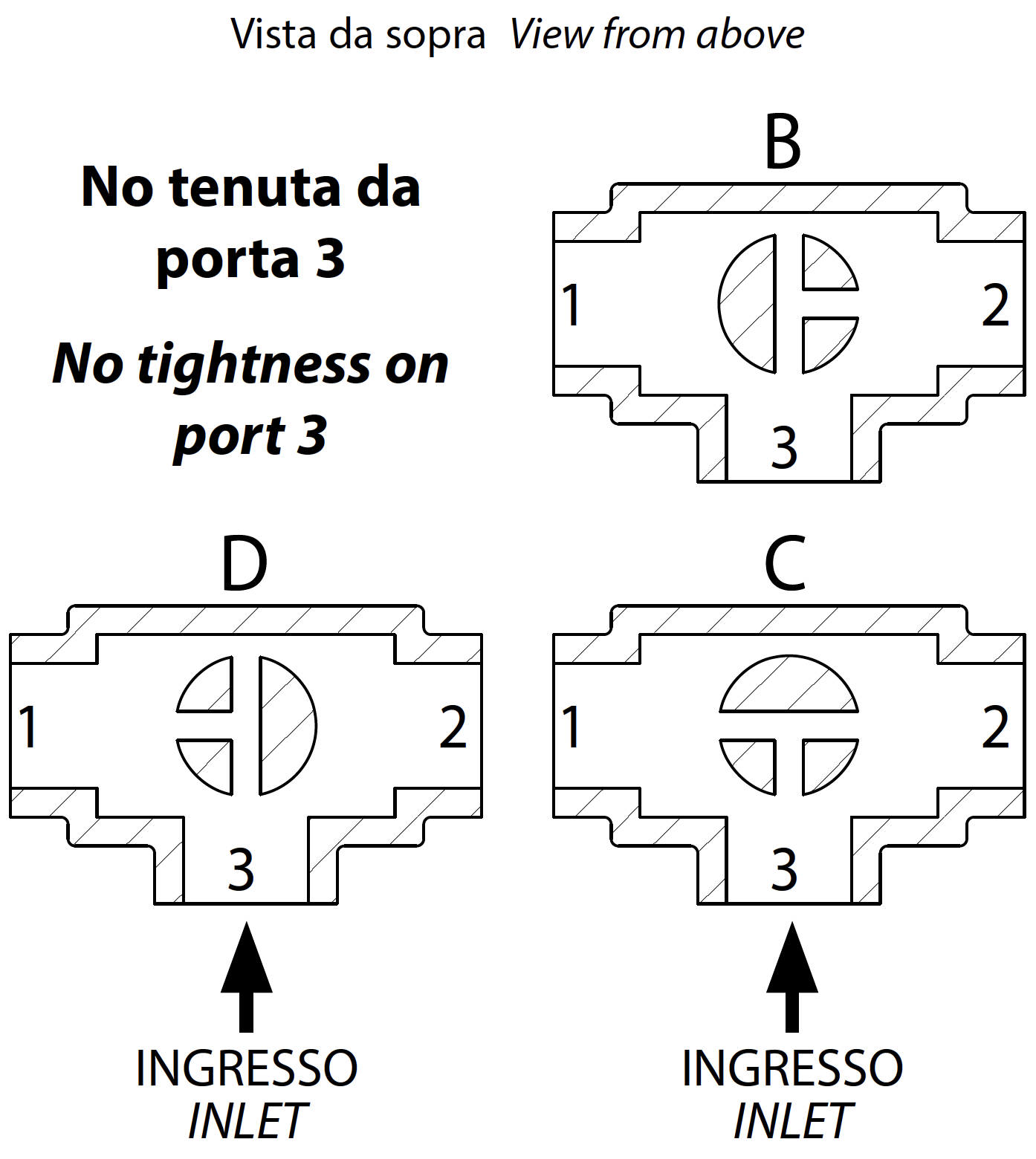

Plan for "T" port (on request)
With actuator 2 positions with 90° rotation are possible only: the configuration of the ball must always be communicated at our sales department.
N.B.: Choose the rest position of the ball with SR FAIL CLOSE actuator; whenever supplied with air, actuator turns in an anticlockwise direction. Choose the rest position of the ball with SR FAIL OPEN actuator; whenever supplied with air, actuator turns in a clockwise direction.
