GENERAL FEATURES: • Manufactured in three pieces to facilitate replacement on plants which requires frequent maintenance. • Threaded ends as per ISO 7/1 specifications; socket welding; butt welding. • Standard seals: PTFE. • Working temperature: from -20°C to +180°C (see diagram) • Working pressure: see diagram. • Fluid range: air, water, gas, petroleum and petrochemical products, aggressive media. • ISO 5211 flange connection. • Integrated locking device for lever version. ON REQUEST: • Seals made of:
RPTFE (15% glass filled)
CTFE (25% carbon filled)
TFM 1600.
• For other applications, please contact our sales department.
CERTIFICATIONS: • ATEX version in conformity with European Directive 2014/34/EU. • ATEX certificate on request. • In compliance with European Directive 2014/68/EU PED.

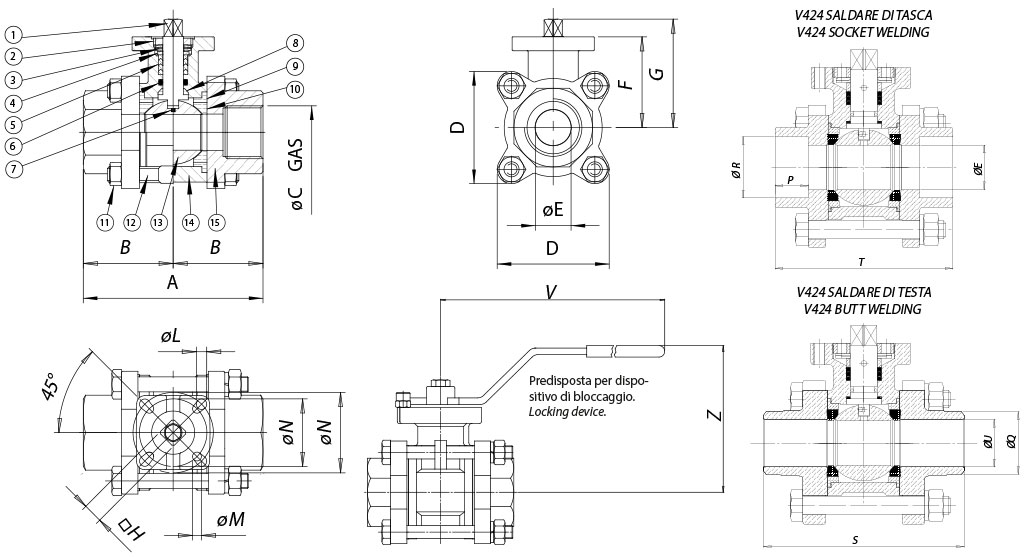

DIMENSIONS
SIZE
A
B
ØE
D
F
G
□H
ØL
ØM
ØN
THREADED END
SOCKET WELDING END
BUTT WELDING END
V
Z
DN [mm]
[inch]
ØC
ØR
P
T
ØU
ØQ
S
DN 08
1/4"
65
32,5
11,2
48,8
42
49,5
9
6
6
36-42
1/4"
14,3
13,0
65,0
10,4
14,8
70
150
78,0
DN 10
3/8"
65
32,5
12,6
48,8
42
49,5
9
6
6
36-42
3/8"
17,7
13,0
65,0
13,7
18,5
70
150
78,0
DN 15
1/2"
75
37,5
15,0
48,8
42
49,5
9
6
6
36-42
1/2"
22,0
16,0
75,0
15,0
21,0
75
150
78,0
DN 20
3/4"
80
40,0
20,0
50,3
45
53,5
9
6
6
36-42
3/4"
27,5
16,0
80,0
21,4
28,3
90
150
82,5
DN 25
1"
90
45,0
25,0
64,0
52
62,7
11
7
6
42-50
1"
34,3
17,0
90,0
27,2
35,5
100
200
91,5
DN 32
1" 1/4
110
55,0
32,0
73,4
57
67,7
11
7
6
42-50
1" 1/4
43,0
20,0
110,0
35,5
43,7
110
200
95,5
DN 40
1" 1/2
120
60,0
38,0
82,0
68
81,5
11
9
7
50-70
1" 1/2
49,0
20,0
120,0
41,2
50,0
125
250
112,0
DN 50
2"
140
70,0
50,8
94,3
77
91,0
14
9
7
50-70
2"
61,4
22,0
140,0
52,7
63,0
150
250
118,5
DN 65
2"1/2
185
92,5
65,0
165,0
100
117
17
11
9
70-102
2" 1/2
77,2
33,0
185,0
65,3
77,2
190
300
140,0
DN 80
3"
205
102,5
80,0
190,0
111
127,7
17
11
9
70-102
3"
90,0
34,3
205,0
79,5
89,8
220
300
151,0
DN 100
4"
240
120,0
100,0
240,0
138
159,8
22
13
11
102-125
4"
115,4
41,0
240,0
102,3
115,4
270
400
178,0
MATERIALS
1
Shaft
316 S.S.
1.4401
UNI X5CrNiMo 17 12
2
Nut
304 S.S.
1.4301
UNI X5CrNi 18 10
3
Belleville washer
301 S.S.
1.4310
UNI X12CrNi 17 07
4
Gland
304 S.S.
1.4301
UNI X5CrNi 18 10
5*
V-ring stem packing
P.T.F.E.
6*
O-ring
FKM
7
Antistatic device
316 S.S.
1.4401
UNI X5CrNiMo 17 12
8*
Pyramidal stem seal
P.T.F.E.
9*
Body gasket
P.T.F.E.
10*
Seal
P.T.F.E.
11
Nut
304 S.S.
1.4301
UNI X5CrNi 18 10
12
Bolt
304 S.S.
1.4301
UNI X5CrNi 18 10
13
Ball
316 S.S.
1.4401
UNI X5CrNiMo 17 12
14
Body
316 S.S.
1.4408
15
End cap
316 S.S.
1.4408
* Components of spare part kit KGBV60...

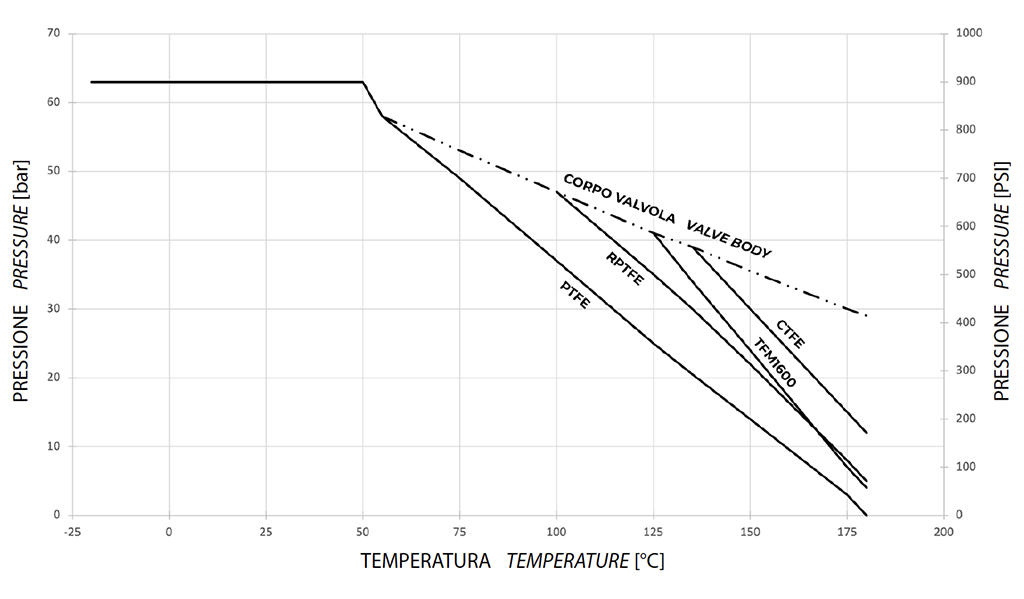

Pressure/temperature diagram

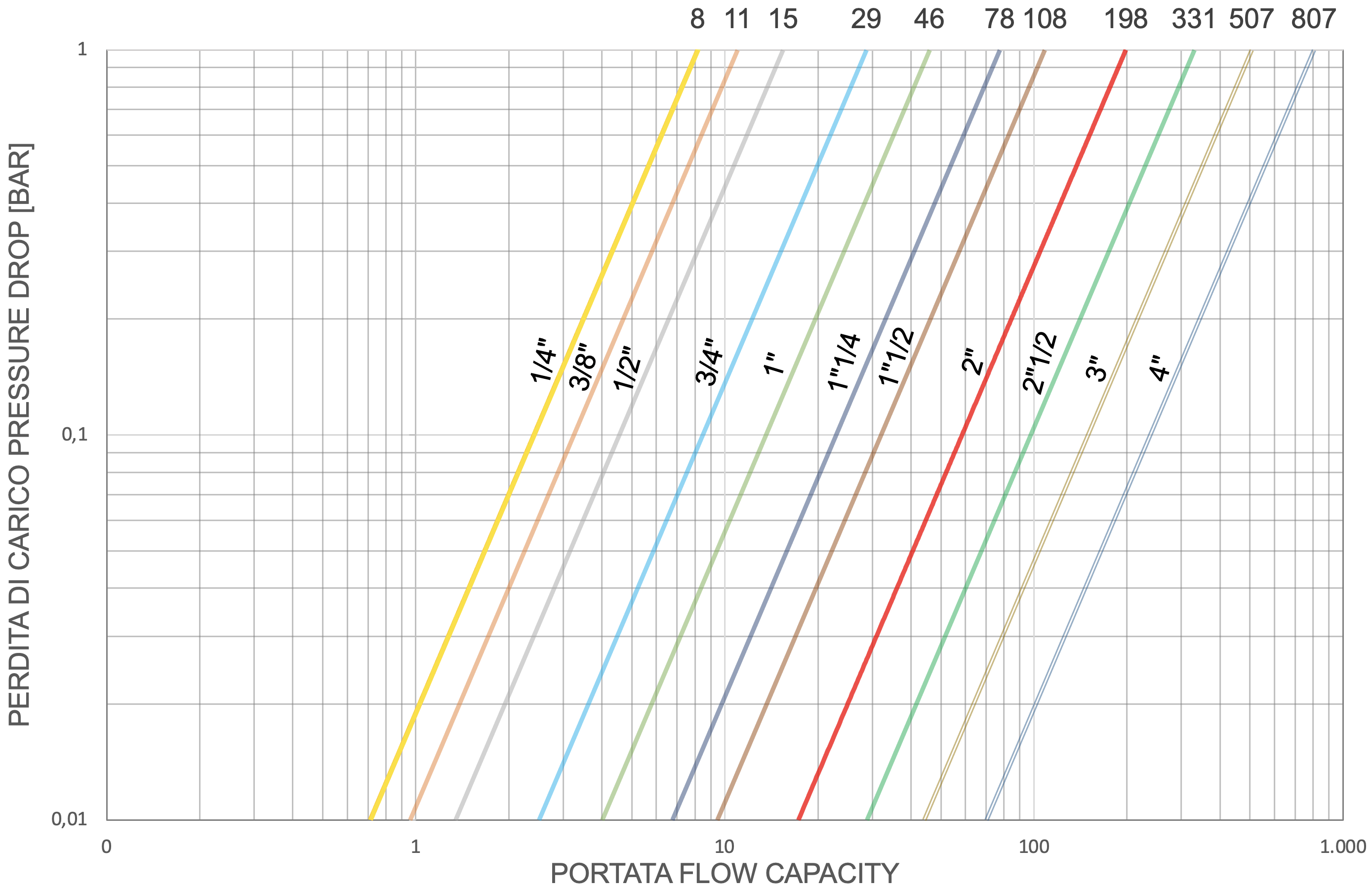

Flow/pressure loss diagram and Kv nominal coefficient
Kv is the coefficient, expressed in m3/h (with water at 15°C) causing a pressure loss of 1 bar.
BREAKAWAY TORQUES Nm
SIZE
DN 8 1/4"
DN 10 3/8"
DN 15 1/2"
DN 20 3/4"
DN 25 1"
DN 32 1"1/4
DN 40 1"1/2
DN 50 2"
DN 65 2"1/2
DN 80 3"
DN 100 4"
PN 63 bar
6
7
8
10
14
20
29
42
85
146
235
Torque can vary depending on temperature and type of fluid; a safety factor of 1.4 must be applied. Torque can drop on high frequency of operations. The actuator/ valve sizing, indicated on the following pages, are based for valves to be used with liquids or gaseous fluids, clean, and for medium temperatures. For further information, or different uses please contact our sales department.
