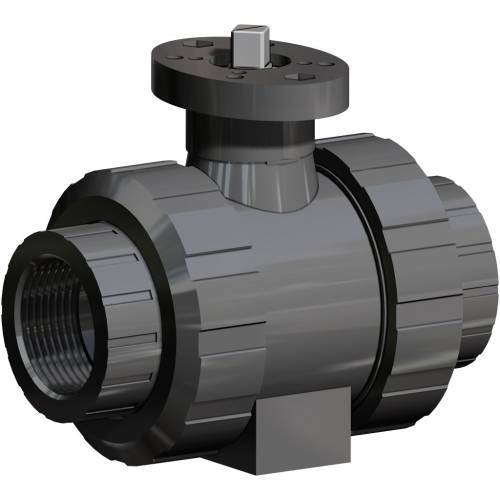

Item 615-616 PVC ball valve

Item 615-616 PVC ball valve
Macro Ball valves

2-way full-bore PVC ball valve, threaded or glued ends

ITEM 615
Connection: threaded
ITEM 616
Connection: to be glued

CONFIGURE Drive
REQUEST INFORMATION
PAGE PRINT
  • features
  • dimensions
  • materials
  • diagrams and breakaway torque

GENERAL FEATURES:
• Working temperature: from 0°C to 60°C
• Working pressure: see diagram
• Applications: chemical and all kinds of fluids compatible with PVC
• Connections:

  • Female threaded as per DIN/ISO 228/1;
  • to be glued ISO 727 UNI EN 1452
• PN 16 till 20°C if classified chemical resistant with the used fluid with glued ends, PN10 with threaded ends.

ON REQUEST:
• Please contact our sales department.

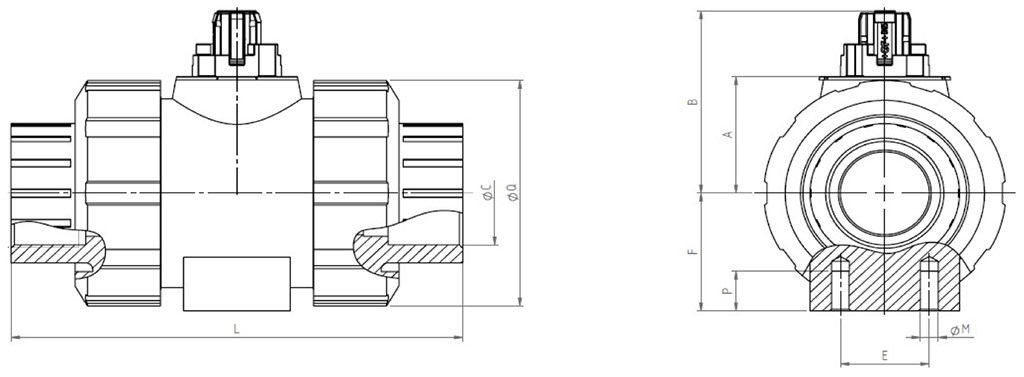

  DIMENSIONS
  SIZE
L
Threaded

L
Glued
ØQ
ØC
Threaded
ØC
Glued
A
B
E
F
ØM
P
DN [mm]
[inch]
DN 10
3/8"
9592
50
3/8"
16
26,1
41
25
27
6
12
DN 15
1/2"
10095
50
1/2"
20
26,1
41
25
27
6
12
DN 20
3/4"
114110
58
3/4"
25
30
48,5
25
30
6
12
DN 25
1"
127123
68
1"
32
35,2
55
25
36
6
12
DN 32
1" 1/4
146146
84
1"1/4
40
44
66,9
45
44
8
15
DN 40
1" 1/2
152157
97
1"1/2
50
50,2
73,1
45
51
8
15
DN 50
2"
177183
124
2"
63
62
89,4
45
64
8
15
DN 65
2" 1/2
233233
166
2"1/2
75
84,1
126
70
85
8
15
DN 80
3"
254254
200
3"
90
95,9
138
70
105
8
15
DN 100
4"
301301
238
4"
110
109,9152
120
123
12
22

 MATERIALS
1
Body
PVC-U
2
Ball sealing support
PVC-U
3
End
PVC-U
4
Nut ring
PVC-U
5
Ball sealing
PTFE
6
Backing seal
EPDM
7
Ball
PVC-U
8
Stem
PVC-U
9
Shaft o-ring
EPDM
10
Valve end seal
EPDM
11
Body seal
EPDM
12
Mounting insert
S.S.

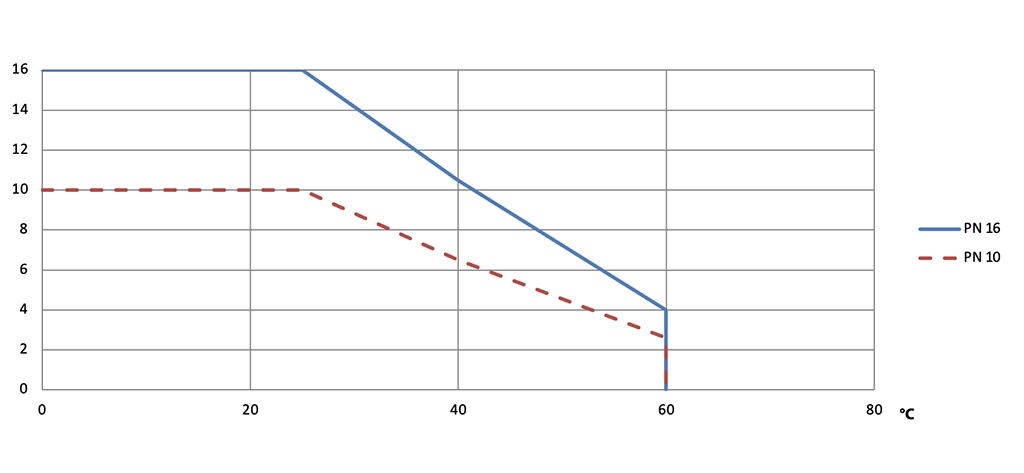

Pressure/temperature diagram

Flow-pressure loss diagram and Kv nominal coefficient


DN10DN15DN20DN25DN32DN40DN50DN65DN80DN100
Kv100701853507001000160031005000700011000KV100 liters per minute
KV4,211,121426096186300420660  KV cubic meters / hour

Kv is the coefficient, expressed in m3/h (with water at 15°C) causing a pressure loss of 1 bar.

 BREAKAWAY TORQUES Nm
 SIZE
DN 10
3/8"
DN 15 1/2"
DN 20 3/4"
DN 25
1"
DN 32 1"1/4
DN 40 1"1/2
DN 50
2"
DN 65 2"1/2
DN 80
3"
DN 100
4"

PN 10/16 bar
2
2
3
4
5,5
7,5
10
15
23
40

Torque can vary depending on temperature and type of fluid; a safety factor of 1.4 must be applied. Torque can drop on high frequency of operations. The actuator/ valve sizing, indicated on the following pages, are based for valves to be used with liquids or gaseous fluids, clean, and for medium temperatures. For further infor- mation, or different uses please contact our sales department.
