Item 615-616 PVC ball valve

DA pneumatic actuator to be glued valve

Macro Ball valves

Category Other PVC ball valves

Drive DA pneumatic actuator to be glued valve

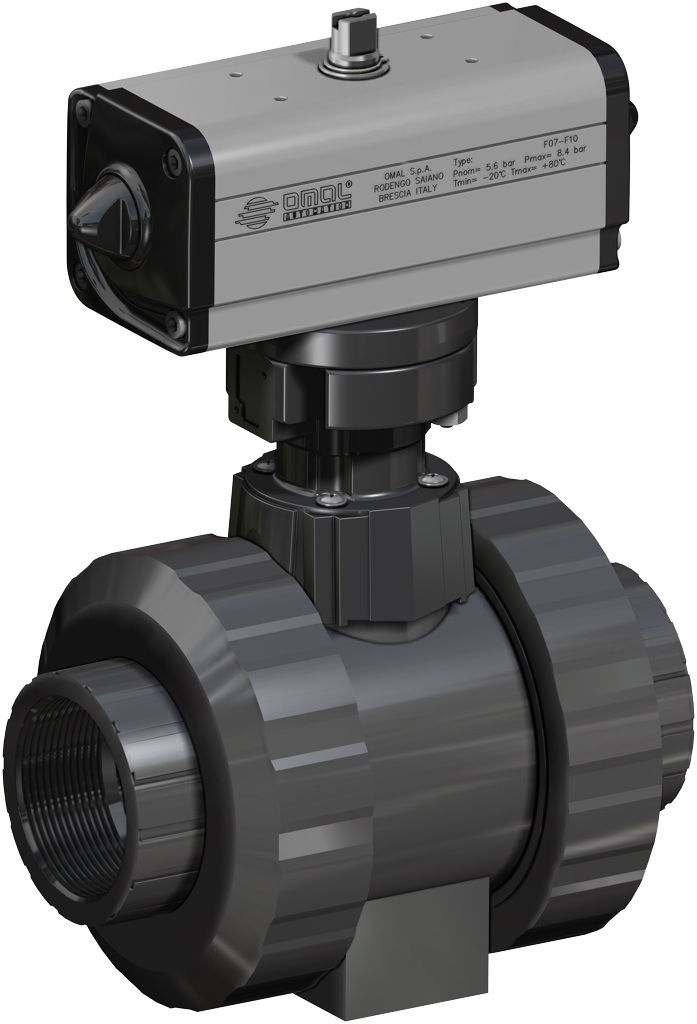

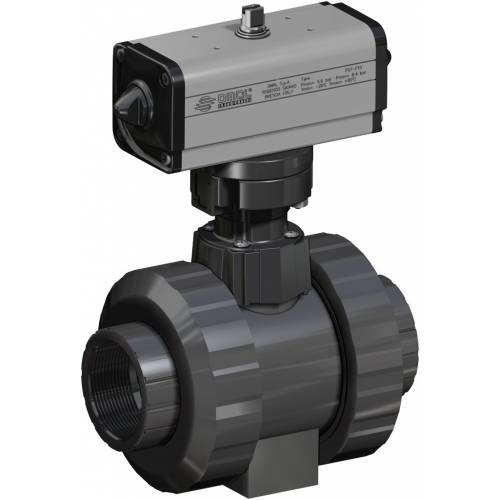

2-way full-bore PVC ball valve, threaded or glued ends

ITEM 615
Connection: threaded
ITEM 616
Connection: to be glued

PVC

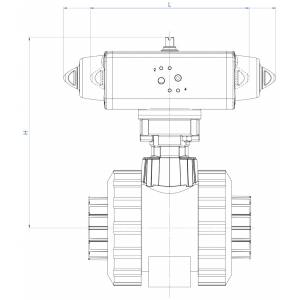

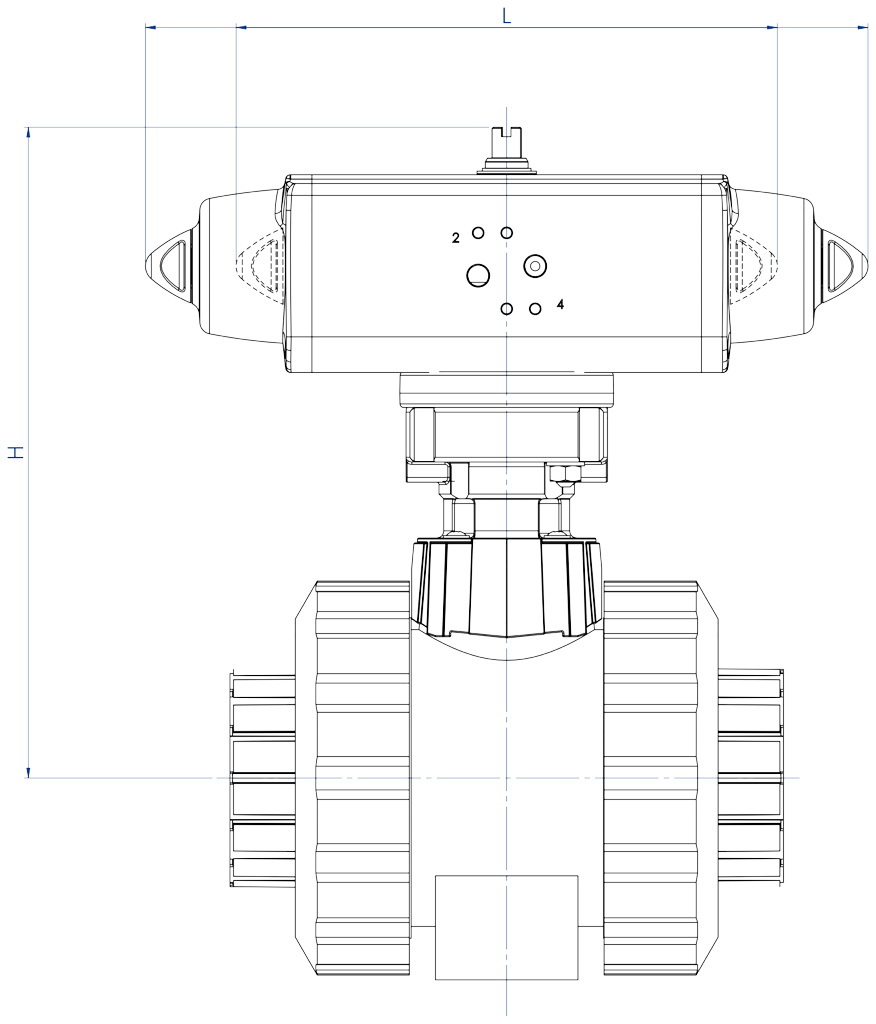

Article	Size	Nominal pressure	Actuator	Valve	H [mm]	L [mm]	Weight [kg]	Mounting kit
DG616H083	DN 10 3/8”	PN 16	DA008401S	V616P753	105	70	0.5	KCF036072
DG616H084	DN 15 1/2”	PN 16	DA008401S	V616P754	105	70	0.5	KCF036072
DG616H085	DN 20 3/4”	PN 16	DAN0015411S	V616P755	128	159	1.2	KCF056015
DG616H086	DN 25 1”	PN 16	DAN0015411S	V616P756	133	159	1.3	KCF056015
DG616H087	DN 32 1” 1/4	PN 16	DAN0015411S	V616P757	145	159	1.6	KCF056009
DG616H088	DN 40 1” 1/2	PN 16	DAN0030411S	V616P758	158	174.2	2	KCF056009
DG616H089	DN 50 2”	PN 16	DAN0030411S	V616P759	175	174.2	2.7	KCF056010
DG616H090	DN 65 2” 1/2	PN 16	DAN0030411S	V616P760	250	174.2	4.7	KCF045457
DG616H091	DN 80 3”	PN 16	DAN0045412S	V616P761	267	188.5	6.8	KCF045457
DG616H092	DN 100 4”	PN 16	DAN0060412S	V616P762	265	198	10.5	KCF055459
