Item 101 brass ball valve

Item 101 brass ball valve
Macro Ball valves

2-way full-bore threaded-ends brass ball valve

CONFIGURE Drive
REQUEST INFORMATION
PAGE PRINT
  • features
  • dimensions
  • materials
  • diagrams and breakaway torque
  • documents

GENERAL FEATURES:
• The valve is suitable for medium pressures on condition that non aggressive fluids are used.
• Working temperature: from -20°C to +150°C for fluids.
• Working pressure: see diagram.
• Fluid range: air, water, oil, gas, petroliferous and petrochemical products, vacuum.
• Threaded ends as per ISO 7/1 and NPT specifications.
• ISO 5211 flange connection.
• Available version with self-scraping ball profile seal, suitable to be used with dirty fluids or with solid particles inside

ON REQUEST:
• For other applications, please contact our technical department.

CERTIFICATIONS:
• According to 2014/68/EU “PED”
• ATEX version in conformity with directive 2014/34/EU on request

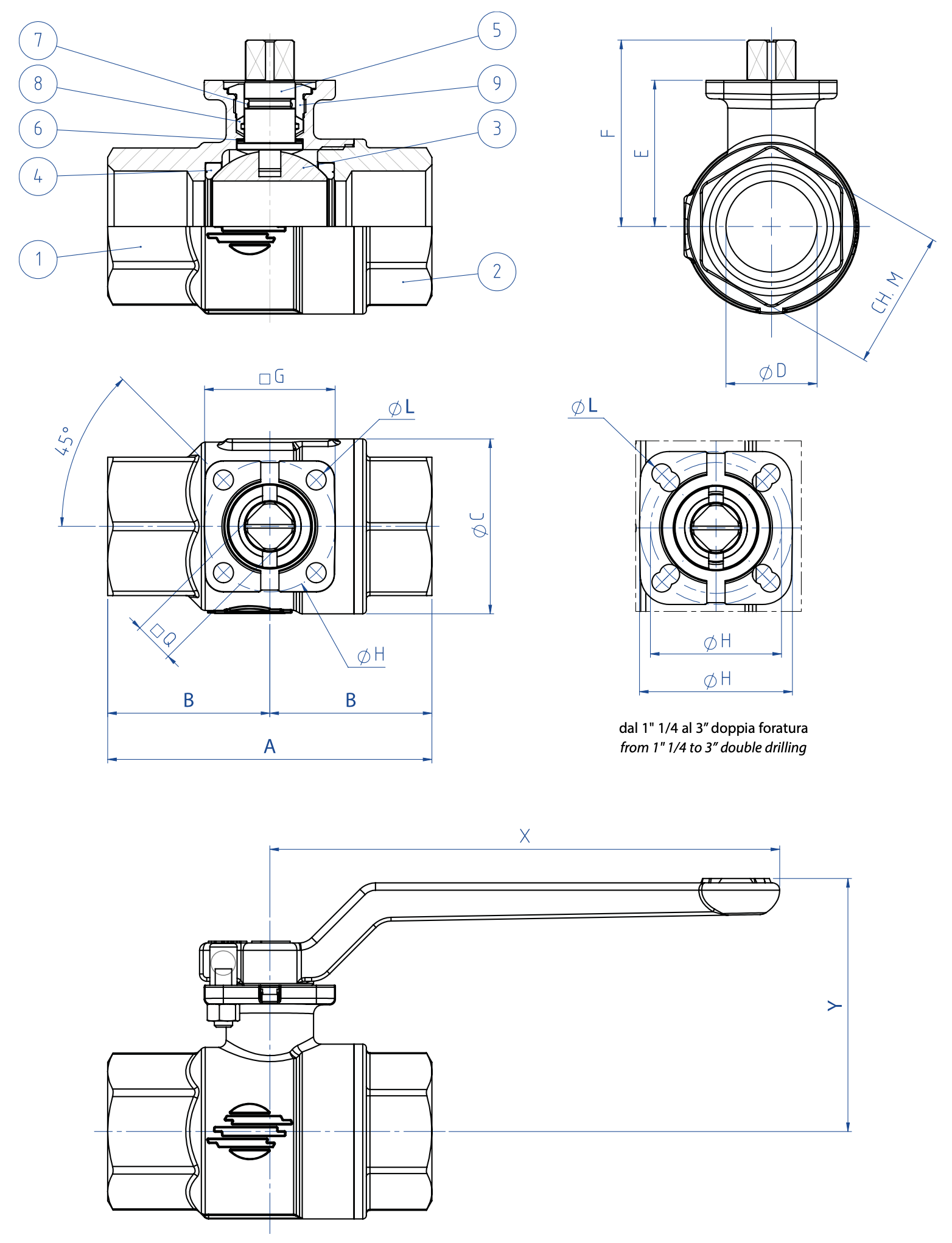

DIMENSIONS
SIZE
øD
ISO 7/1NPTøc
☐Q
EFGøH
ISOøL
ch.MXY
DN [mm]
[inch]
ABAB
DN 10
3/8"
106934,5623131,8930,538,53636F035,5
2514058,5
DN 15
1/2"
156934,5623131,8930,538,53636F03
5,5
2514058,5
DN 20
3/4"
207738,56834401136,347,13636F03
5,5
3114065
DN 25
1"
258944,579,539,8481140,250,93636F03
5,5
3814068
DN 32
1" 1/4
3210351,59246601151,562,54236/42F03/F04
5,5
4714080
DN 40
1" 1/2
40114571025170,61158694236/42F03/F04
5,5
5414086
DN 50
2"
50134671165888,51165,376,34642/50F04/F05
5,5/6,5
6614093,5
DN 65
2" 1/2
6516180,5146731121483976550/70F05/F07
6,5/8,5
84212118
DN 80
3"
8018592,516884138,41494,5108,56550/70F05/F07
6,5/8,5
98212127,5

MATERIALS
1
Body*
Brass
EN 12165 CW617N
2
Threaded ends*
Brass
EN 12165 CW617N
3
Ball
Brass chromium plated
EN 12164 CW614N
4
Seals
P.T.F.E.

5
ShaftBrass
EN 12164 CW614N
6
Antifriction rings
P.T.F.E.

7
O-ringFKM
8
Shaft seal
P.T.F.E.

9
Gland nut*
Brass
EN 12164 CW614N
 * Surface treatment: bright nickel plating

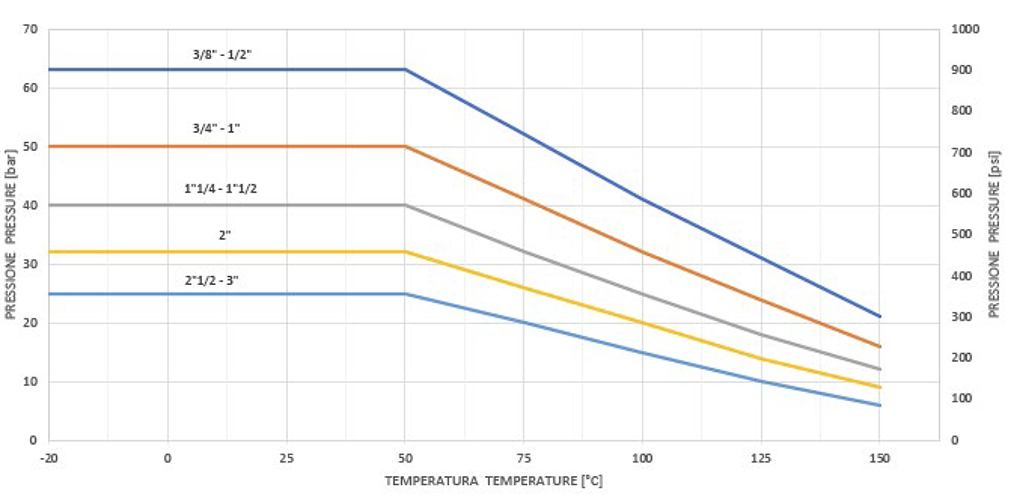

Pressure/temperature diagram

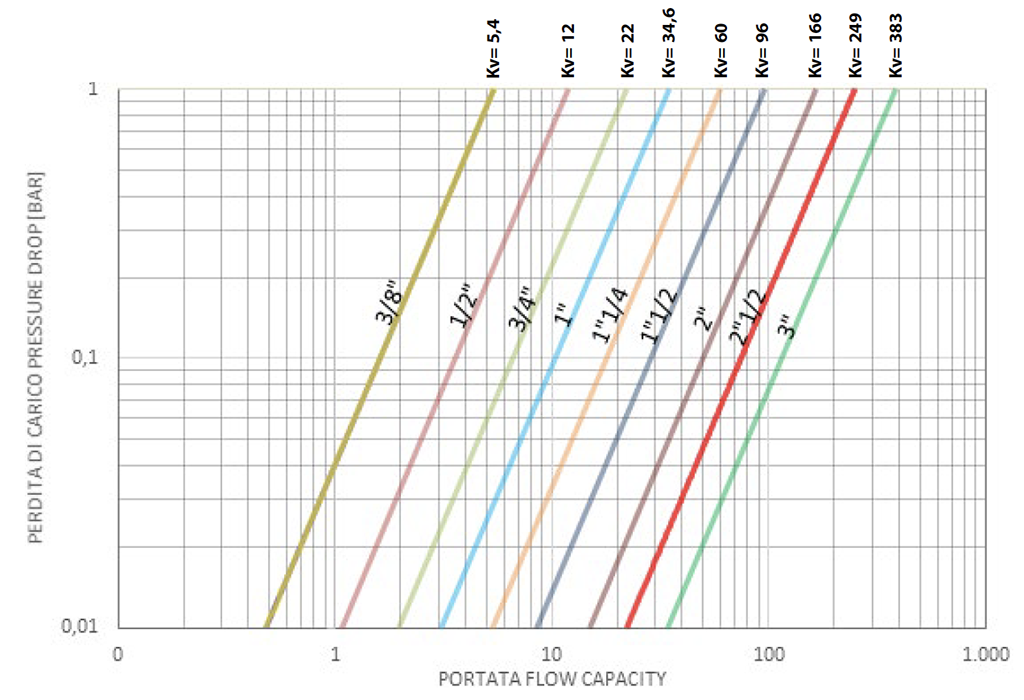

Flow/pressure loss diagram and Kv nominal coefficient

Kv is the coefficient, expressed in m3/h (with water at 15°C) causing a pressure loss of 1 bar.

  BREAKAWAY TORQUES Nm
  SIZE
DN 10
3/8"
DN 15
1/2"
DN 20
3/4"
DN 25
1"
DN 32 1"1/4
DN 40
1"1/2
DN 50
2"
DN 65 2"1/2
DN 80
3"
PN 25 bar







48
70
PN 32 bar






23

PN 40 bar




11
16



PN 50 bar


58




PN 64 bar
4
4








Torque can vary depending on temperature and type of fluid; a safety factor of 1.4 must be applied. Torque can drop on high frequency of operations. The actuator/valve sizing, indicated on the following pages, are based for valves to be used with liquids or gaseous fluids, clean, and for medium temperatures. For further information, or different uses please contact our sales department.
