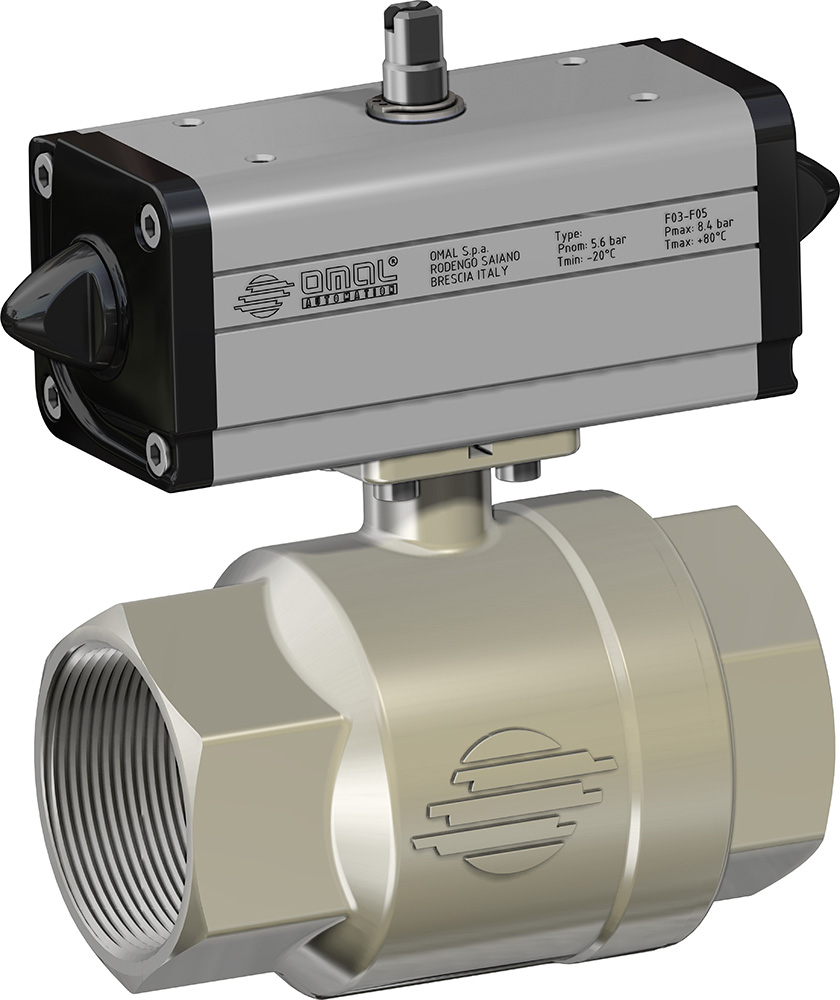

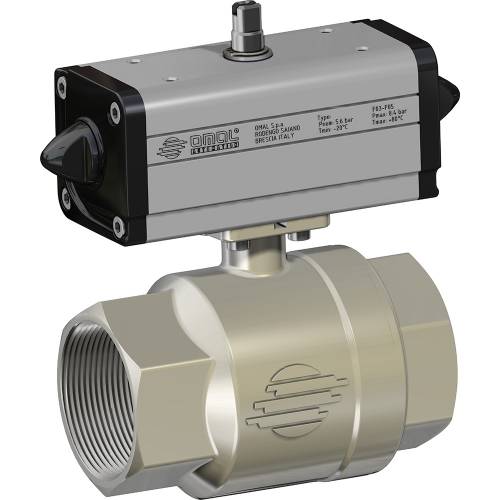

Item 101 brass ball valve

DA pneumatic actuator ISO 7/1

Macro Ball valves

Category Other brass ball valves

Valve Item 101 brass ball valve

Drive DA pneumatic actuator ISO 7/1

2-way full-bore threaded-ends brass ball valve

Brass

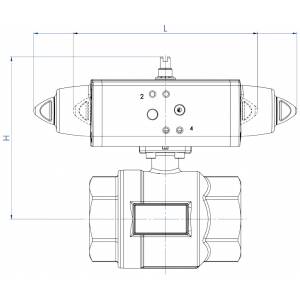

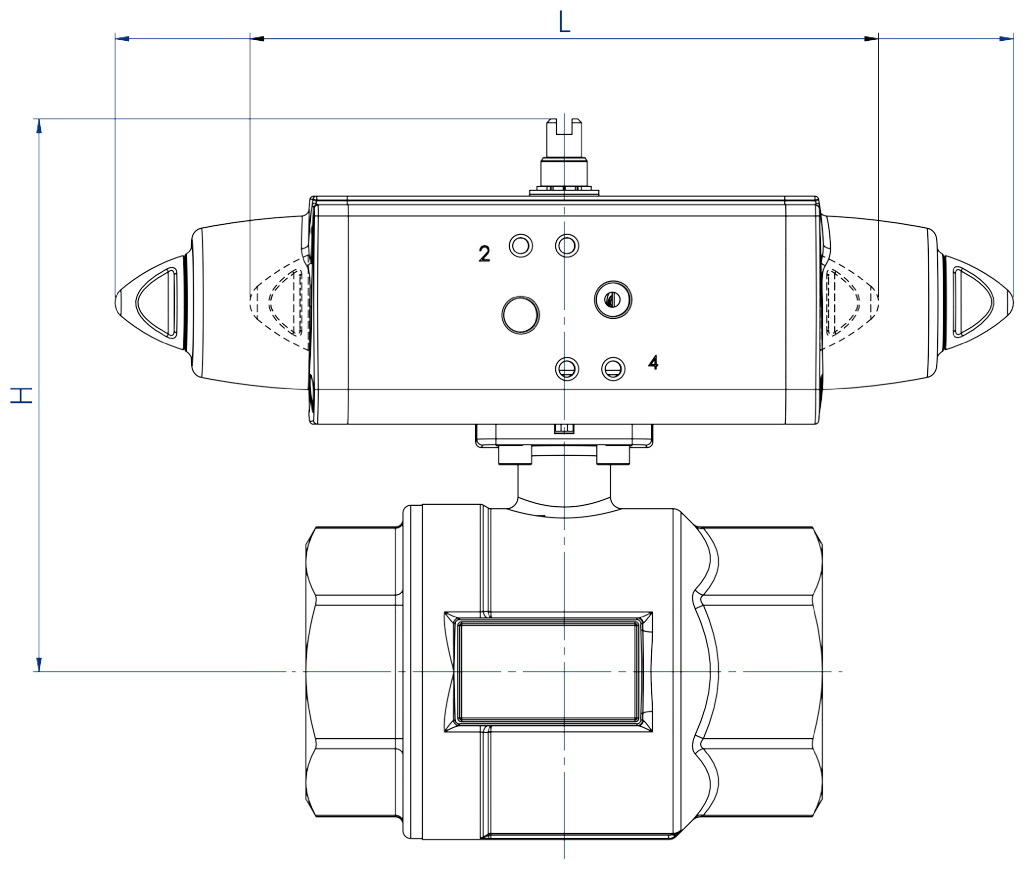

Article	Size	Nominal pressure	Actuator	Valve	H [mm]	L [mm]	Weight [kg]	Mounting kit
D101H003	DN 10 3/8”	PN 64	DA008401S	V101N203	88	70	0.6	KCF032558
D101H004	DN 15 1/2”	PN 64	DA008401S	V101N204	88	70	0.6	KCF032558
DG101H005	DN 20 3/4”	PN 50	DAN0015411S	V101N205G	103.3	159	1.1	KCF032558
DG101H006	DN 25 1”	PN 50	DAN0015411S	V101N206G	107.3	159	1.3	KCF032558
DG101H007	DN 32 1” 1/4	PN 40	DAN0030411S	V101N207G	129.8	174.2	2	KCF032558
DG101H008	DN 40 1” 1/2	PN 40	DAN0030411S	V101N208G	136.8	174.2	2.5	KCF032558
DG101H009	DN 50 2”	PN 32	DAN0045412S	V101N209	149.4	188.5	4.6	KCF042559
DG101H010	DN 65 2” 1/2	PN 25	DAN0106411S	V101N210	186.3	237	7.2	KCF072567
DG101H011	DN 80 3”	PN 25	DAN0120411S	V101N211	201.6	244.1	10.1	KCF072567
