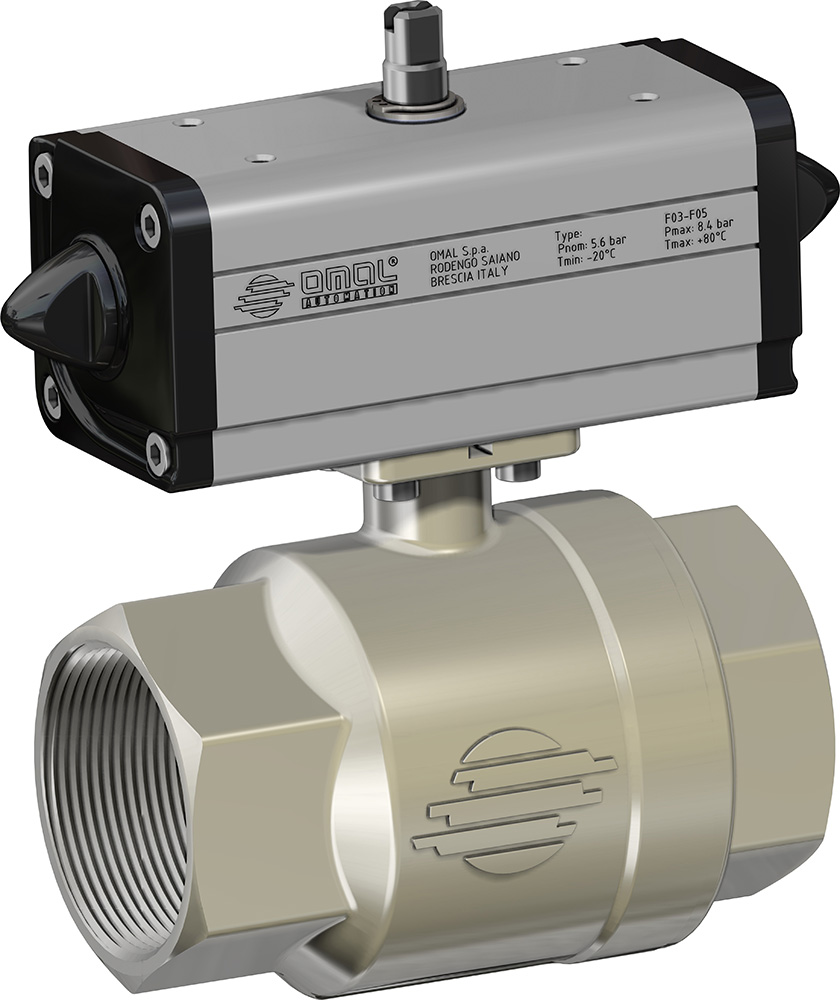

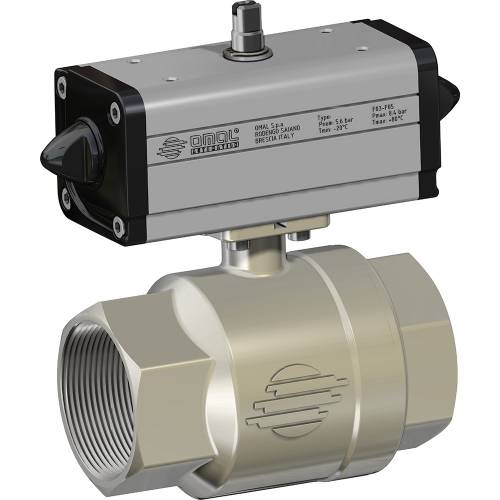

Item 100 brass ball valve
DA pneumatic actuator

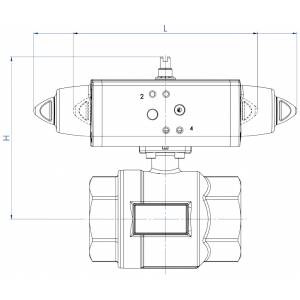

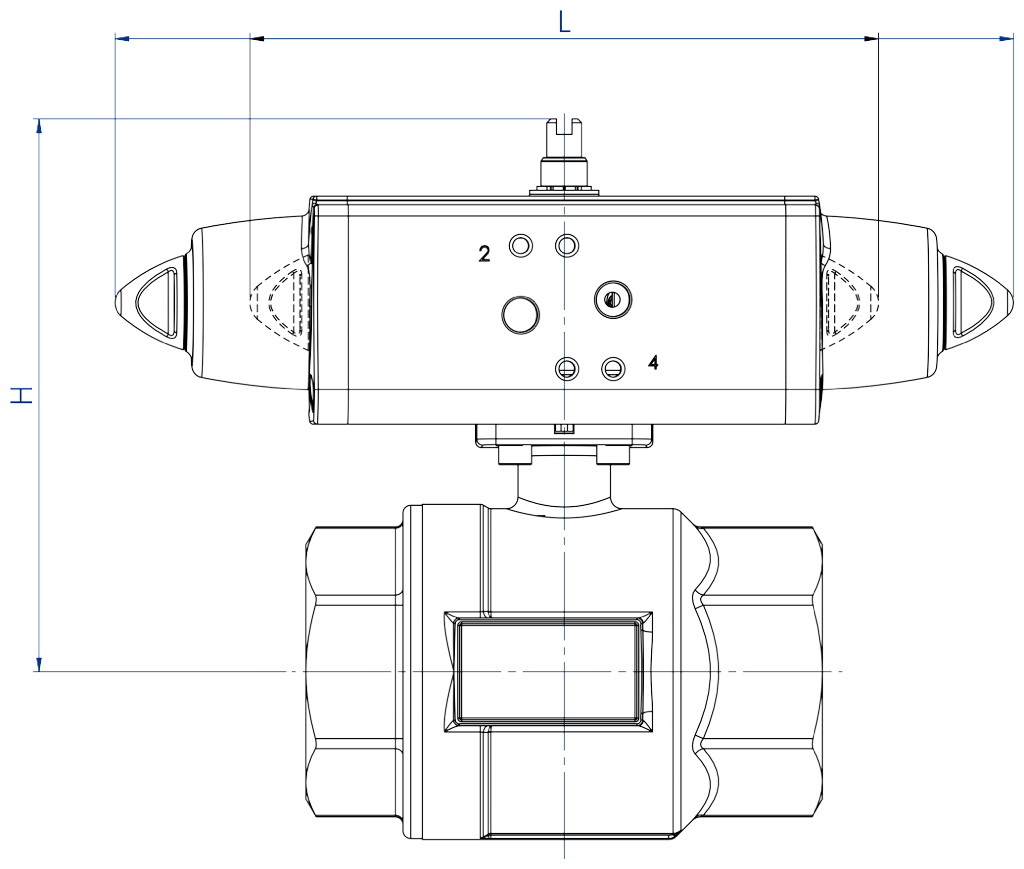

| Article | Size | Nominal pressure | Actuator | Valve | H [mm] | L [mm] | Weight [kg] | Mounting kit | |
|---|---|---|---|---|---|---|---|---|---|
| D100H005 | DN 20 3/4” | PN 16 | DA008401S | V100N205 | 94 | 70 | 0.7 | KCF032558 | |
| D100H006 | DN 25 1” | PN 16 | DA008401S | V100N206 | 98 | 70 | 1 | KCF032558 | |
| DG100H003 | DN 10 3/8” | PN 16 | DA008401S | V100N203G | 85 | 70 | 0.5 | KCF032558 | |
| DG100H004 | DN 15 1/2” | PN 16 | DA008401S | V100N204G | 88 | 70 | 0.6 | KCF032558 | |
| DG100H007 | DN 32 1” 1/4 | PN 16 | DAN0015411S | V100N207G | 122.8 | 159 | 1.9 | KCF032558 | |
| DG100H008 | DN 40 1” 1/2 | PN 16 | DAN0015411S | V100N208G | 129.8 | 159 | 2.7 | KCF032558 | |
| DG100H009 | DN 50 2” | PN 16 | DAN0030411S | V100N209G | 143.8 | 174.2 | 4.2 | KCF032558 | |
