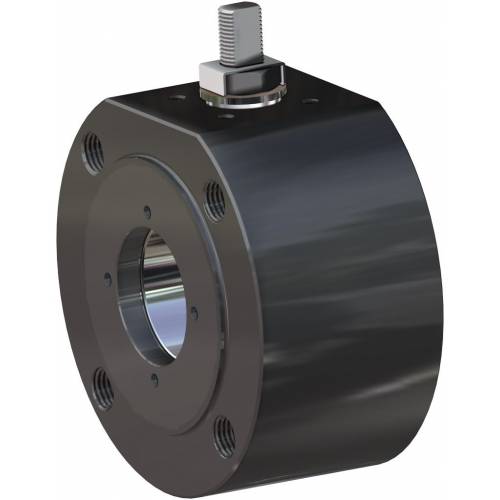

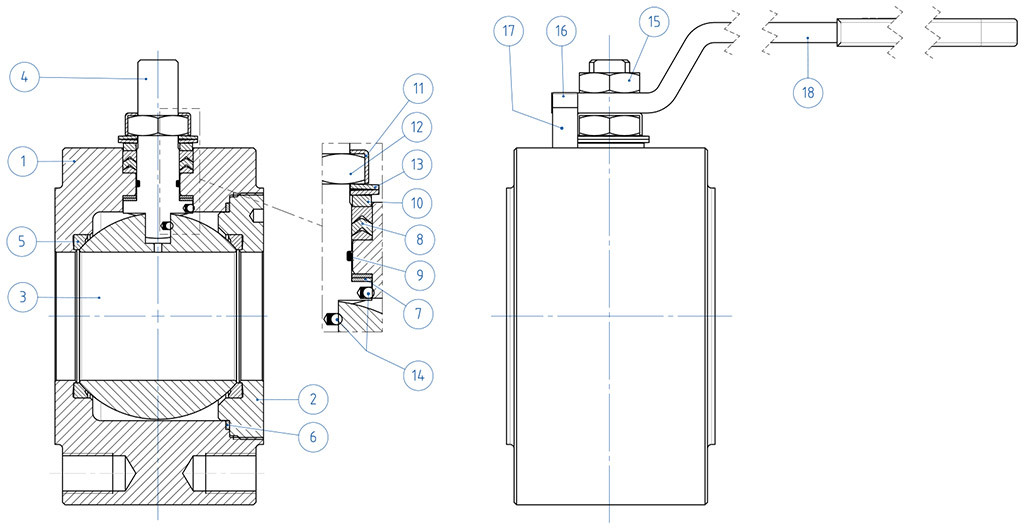

1. Antistatic device (electrical continuity between ball, stem and body) Static electricity is avoided which can cause sparks and fire in an inflammable/explosive environment Contact safety throughout the entire life of the valve
2. Double antifriction washer Less Breakaway Torque is granted Less wear comparing with the execution with the single washer
3. "V" seals pack; 3 seals + o-ring It ensures a perfect tightness even after a high number of cycles
4. Spring washer on the shaft seal Guarantee of the recovery of the gap due to the wear caused by the rotational movement of the shaft avoiding leakage towards the outside part. Allow to maintain energized the "chevron" seals (V), thus avoiding any leakage to the outside, against huge temperature excursions
5. Stretch Graphite seal on request Tightness towards outside is granted, independently by the thermal excursions to which the valve is subjected
Greater precision in the alignment of axes due to a unique positioning in the process machining from raw material to finished valve Longer lifetime of the valve Less breakaway torque
Valve body in carbon steel made with NACE certified material as standard Greater corrosion resistance Greater ductility of the material
100% in- house manufacturing process technology Maximum control and accuracy in all the stages of the manufacturing process Flexibility in supply quickly special executions requested by customers
"Fire safe" Certificate Guarantees the tightness of the valve also in case of fire
ATEX Certificate Installation is possible in a potential explosive environment
TA LUFT fugitive emission Certificate High level of safety of the tightness towards the outside is granted
PED Certificate Full compliance with European Safety Standards for Pressure Equipment
UP to SIL 3 certified Guarantee of the high level of functional safety

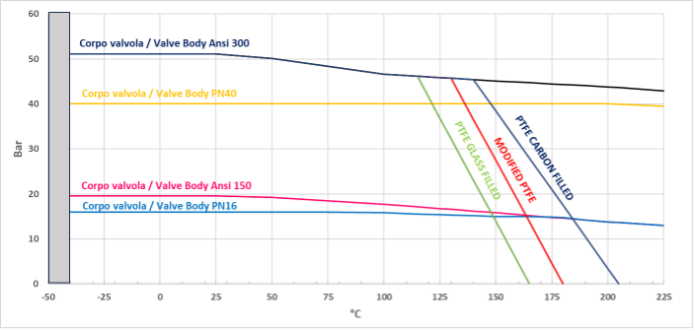

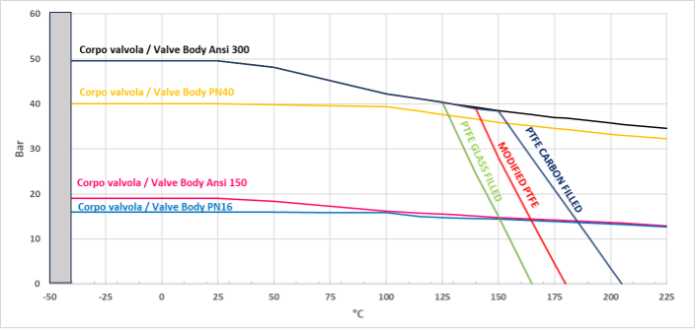

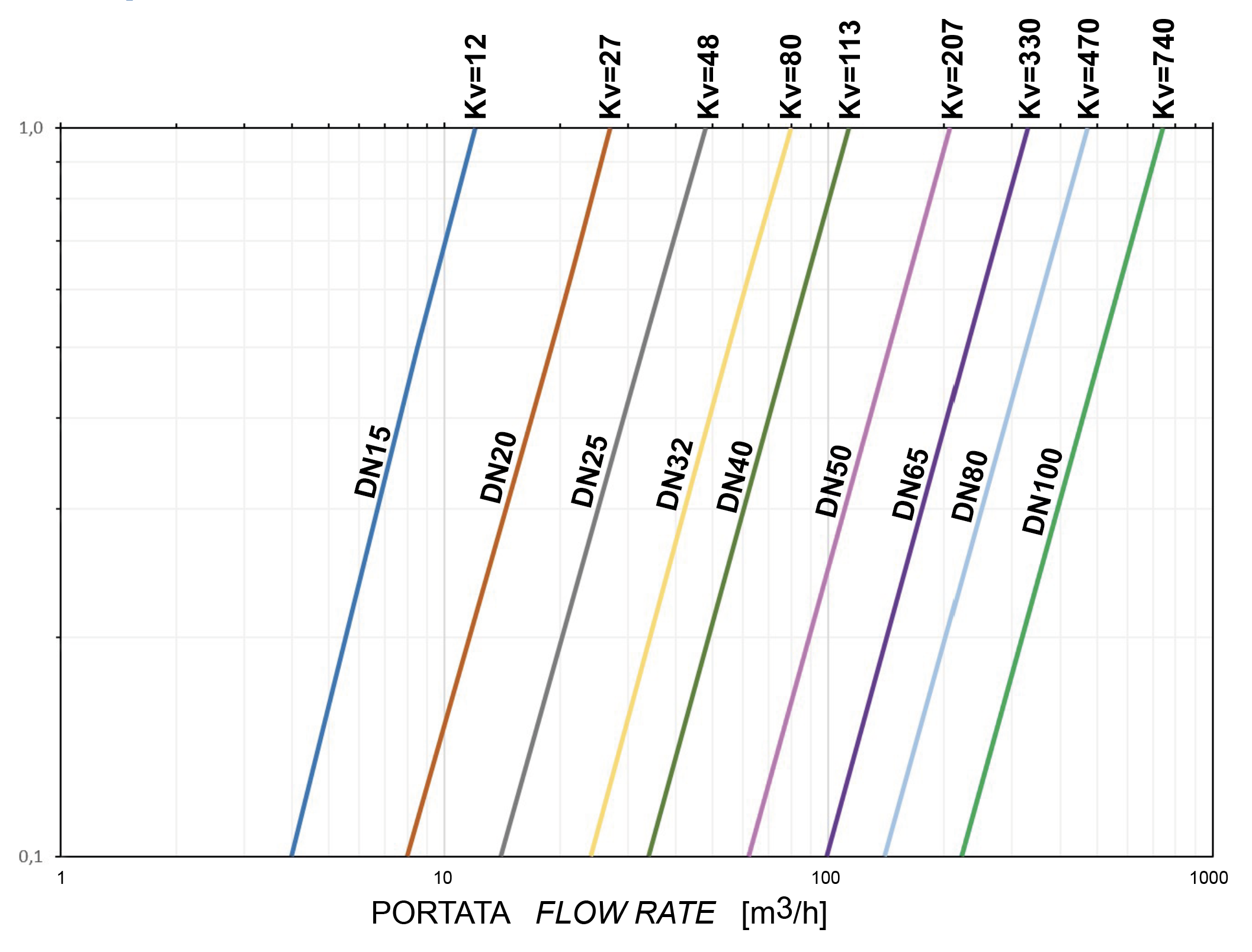

STANDARD FEATURES • No protuding floating ball, full bore • Soft-seat seal Modified PTFE • Standard for connecting flanges: EN 1092-1; ASME B16.5 • Operating temperature see temperature pressure diagram • Pressure Class: PN16-40; ANSI 150-300 • Tightness Class: EN12266-1 rate A • Intercepted fluid: air, water, gas, petroleum and petrochemical products. • Antistatic device EN12266-2 • Stem seal: Modified PTFE V-pack • Additional seal on stem with FKM O-ring • Anti Blow-out stem • Actuator connection as per standard ISO 5211 • Closing angle >7° • Superficial treatment: blueing
FEATURES ON REQUEST • LF2 carbon steel for low temperature execution (-40 C°) • For other flange types please contact our sales department • Heating jacket • Sealing in: PTFE reinforced with glass (PTFE-GF), PTFE reinforced with carbon-graphite (PTFE-CF). For other types of materials please contact our sales department • Mono-directional version with pressure-relief hole in the ball • Stainless steel lever . For versions in materials different from the standard (body, ball, stem), please contact our sales department. • Stainless steel Stem nuts and springs • Superficial treatment: white zinc coating,epoxy coating (for other coating please contact our sales department) • ATEX marking and certificate ON REQUEST CERTIFICATIONS • In compliance with European Directive 2014/68/EU PED. • Fugitive Emission ISO 15848 (ISO FE BH-C03-SSA 0). • TA-LUFT VDI 2440. • FIRE SAFE: ISO 10497 Third ed. 2010 / API 607 Sixth ed. 2010. • Safety integrity level up to SIL 3 according to IEC 61508. • In compliance with ATEX 2014/34/EU European Directive (ATEX certificate ON REQUEST). ENGINEERING STANDARDS • Body thickness in compliance with: ASME B16.34, ASME VIII div.1, EN 12516. • Materials and rating in compliance with ASME B16.34 for ANSI valves and EN 12516 for PN valves

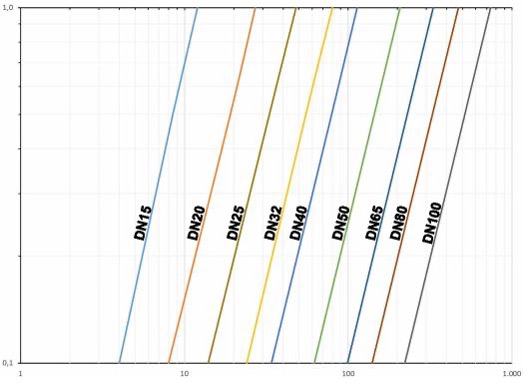

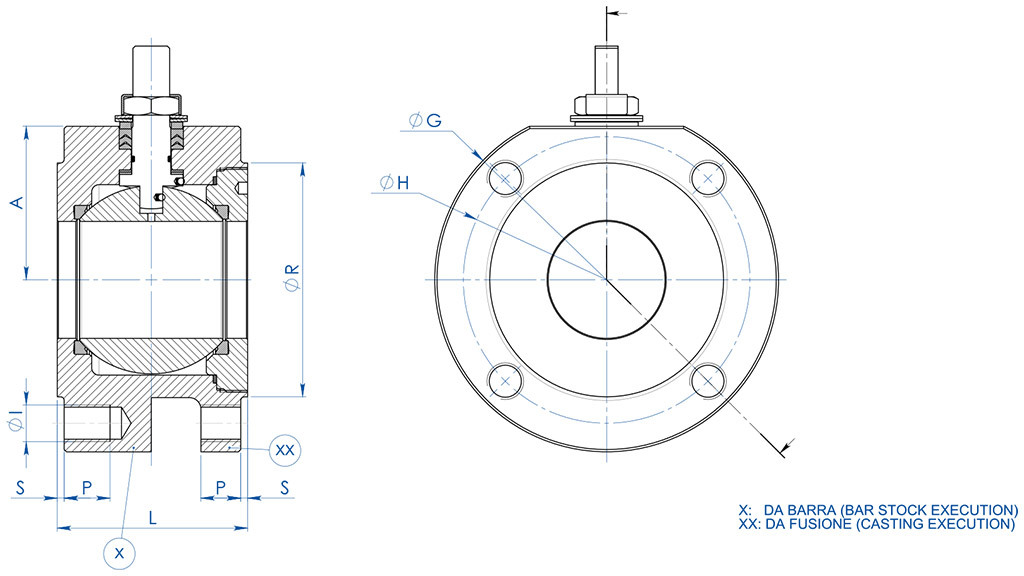

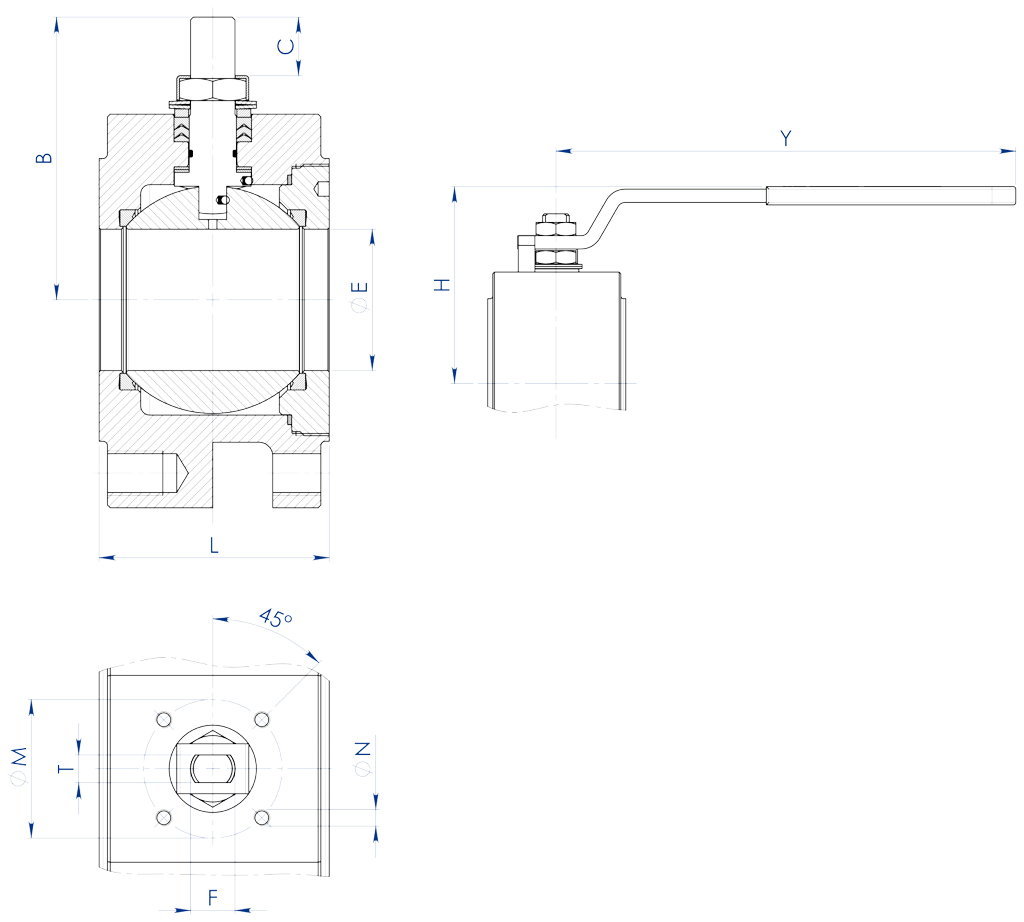

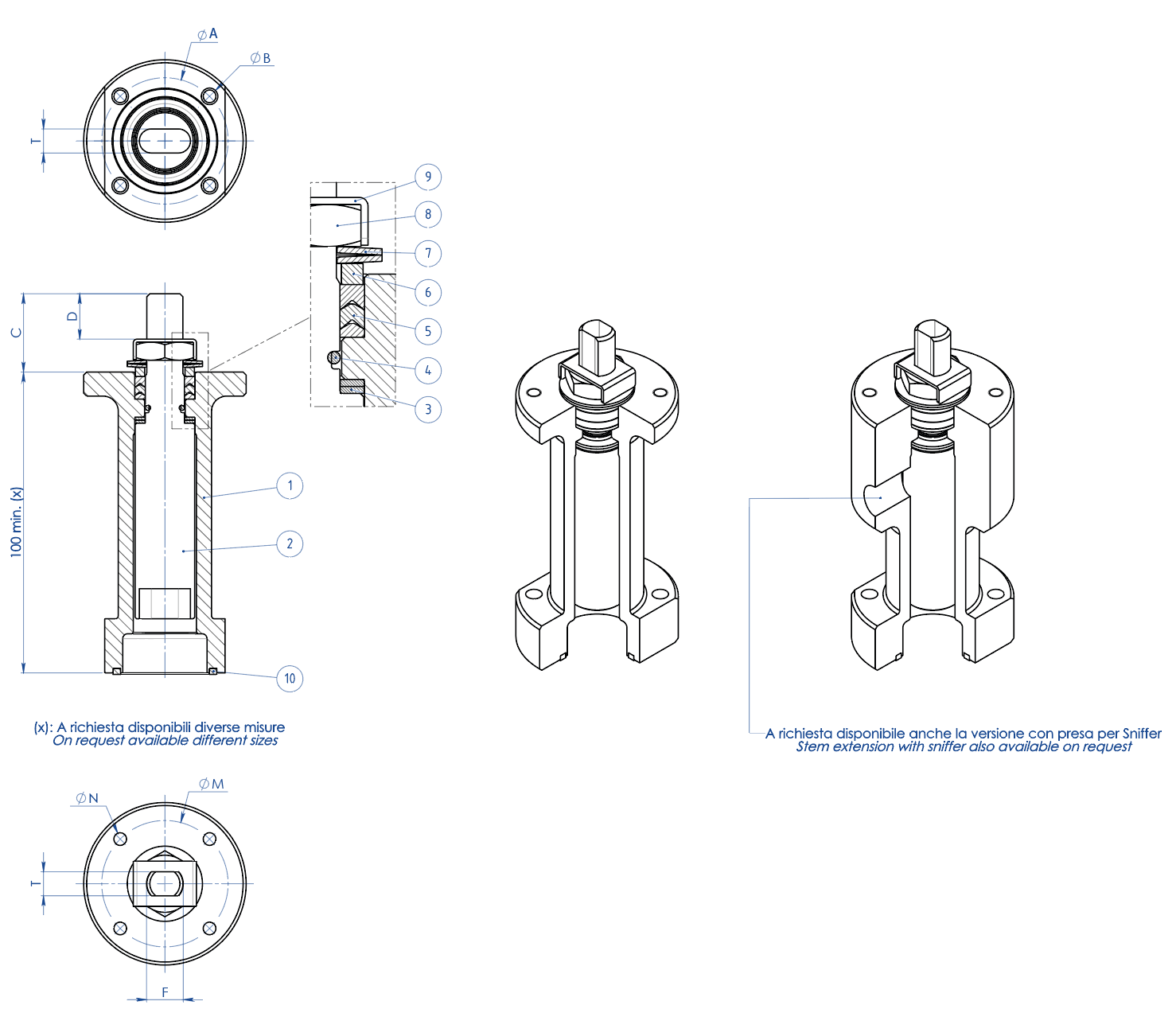

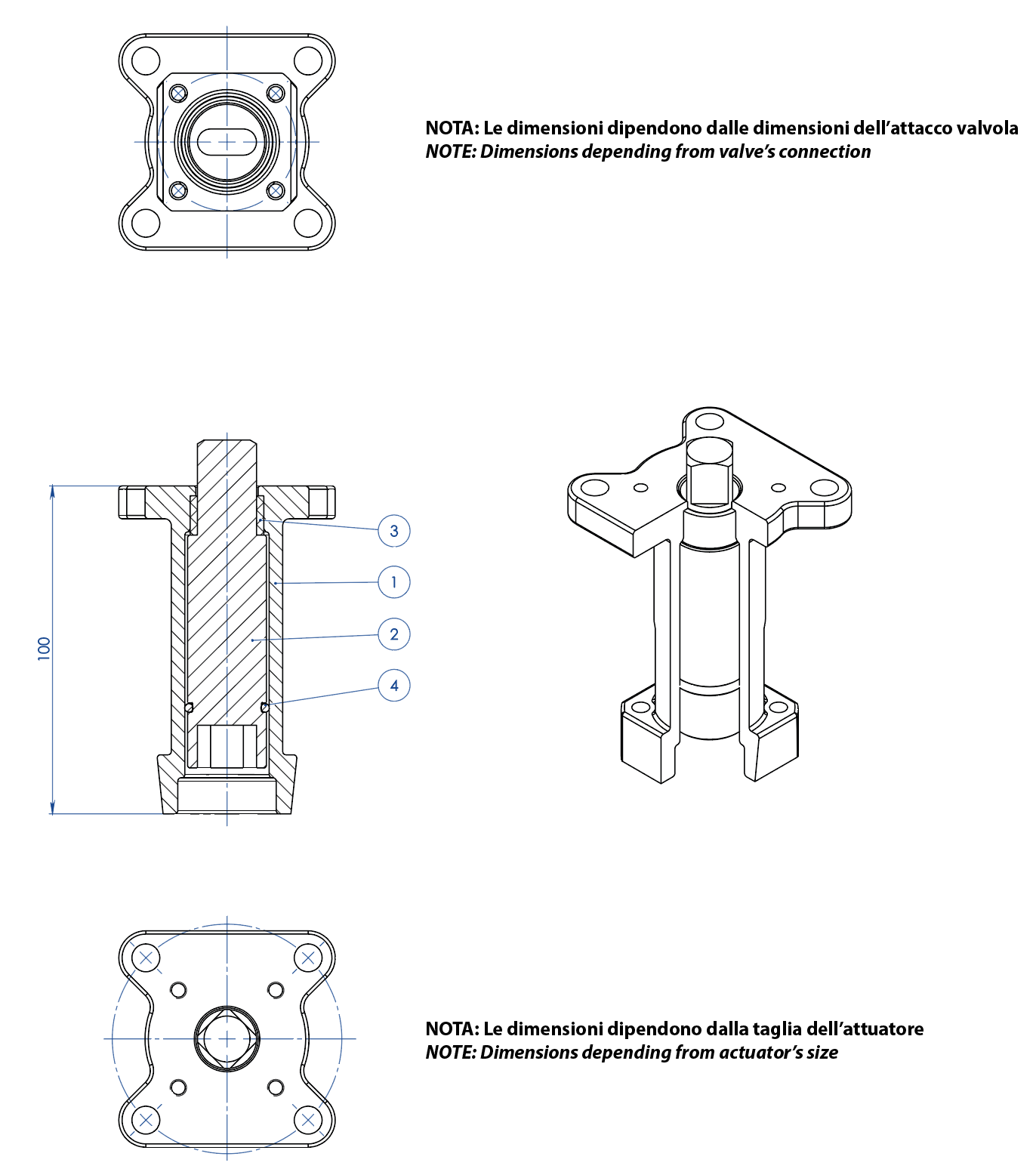

DIMENSIONS
SIZE
∅E
L
B
C
ATT.ISO
∅M
∅N
F/T
H
Y

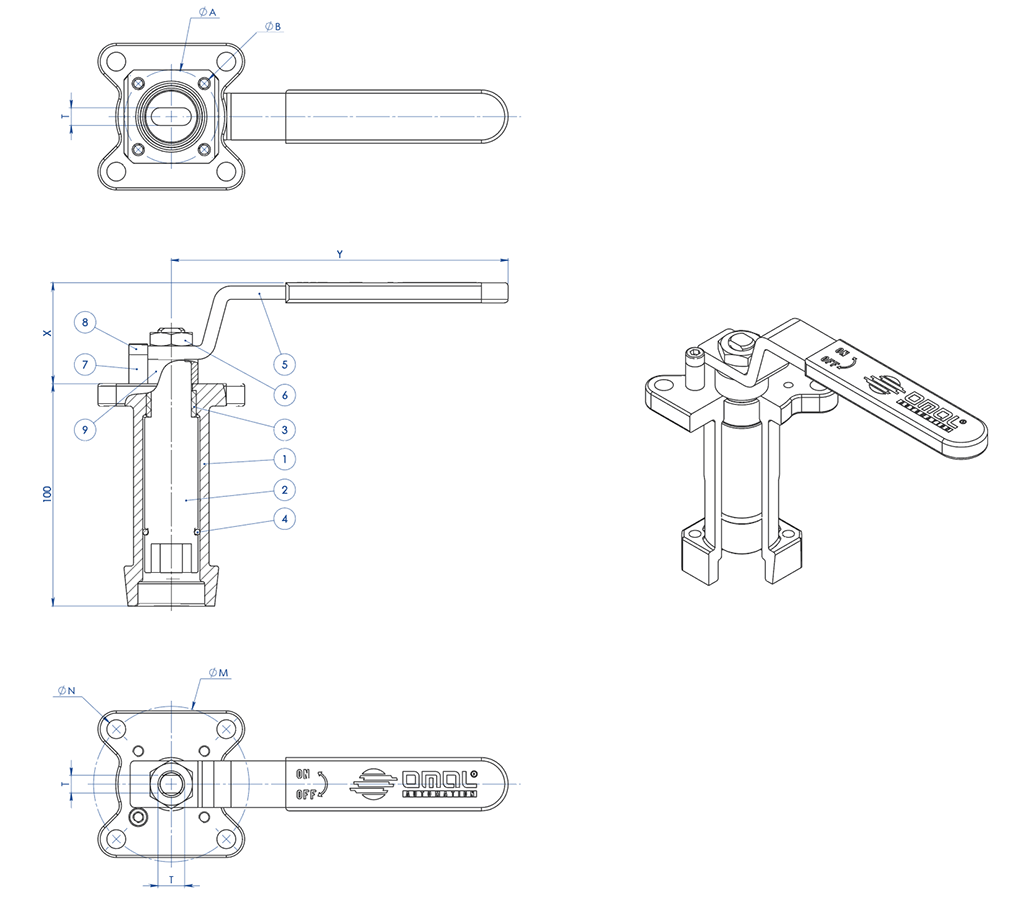

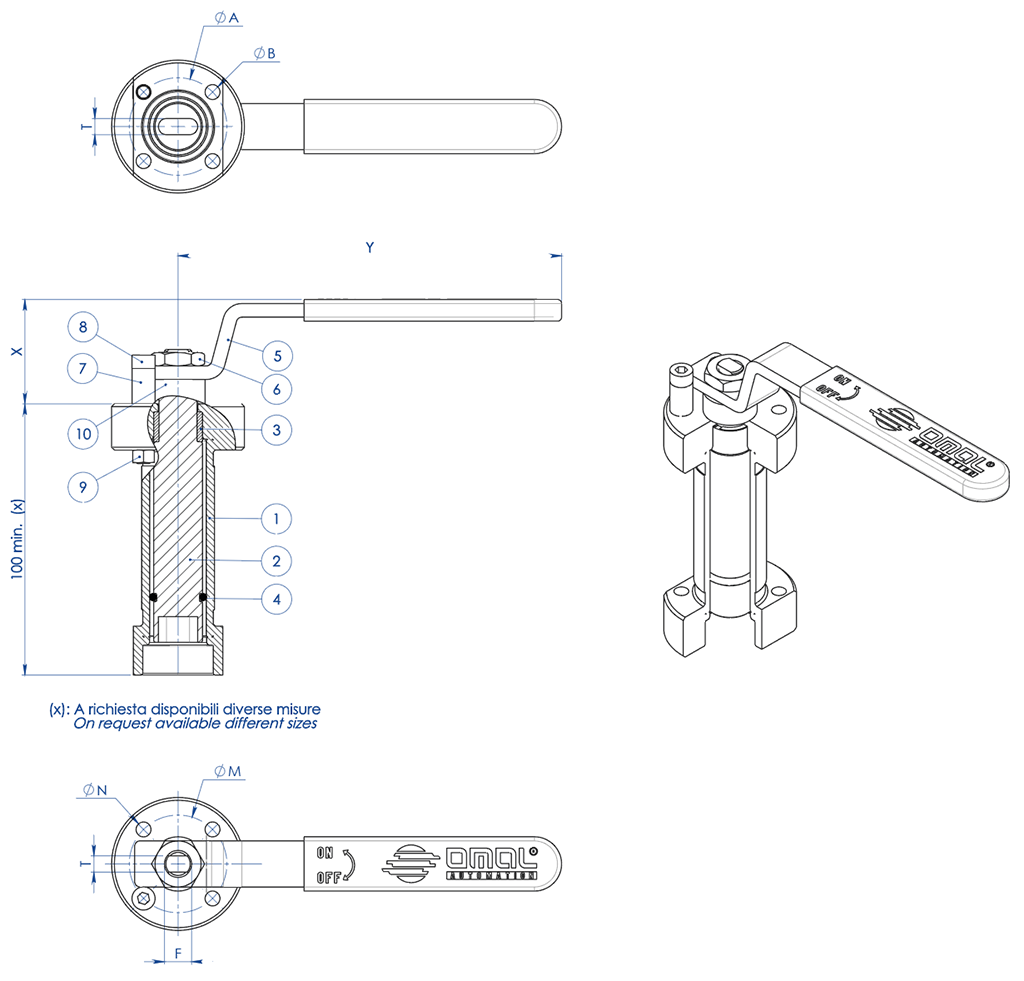

LEVER KIT
DN [mm]
[inch]
DN 15
1/2"
13
36
52
10
F03
36
M5
10/6
71
140
KLV58004
DN 20
3/4"
19
39
55
10
F03
36
M5
10/6
73
140
KLV58004
DN 25
1"
25
43
68
15
F04
42
M5
12/8
87
150
KLV58006
DN 32
1" 1/4
32
51 o 54
73
15
F04
42
M5
12/8
91
150
KLV58006
DN 40
1" 1/2
38
63
93
21
F05
50
M6
16/10
108
275
KLV58008
DN 50
2"
51
83
102
21
F05
50
M6
16/10
118
275
KLV58008
DN 65
2" 1/2
64
107
130,5
28
F07
70
M8
22/14
143
350
KLV58010
DN 80
3"
76
120
137,5
28
F07
70
M8
22/14
150
350
KLV58010
DN 100
4"
95
152
166
35
F10
102
M10
30/18
192
450
KLV58012
All valves have no protuding ball except DN32 (face to face 51 mm).
