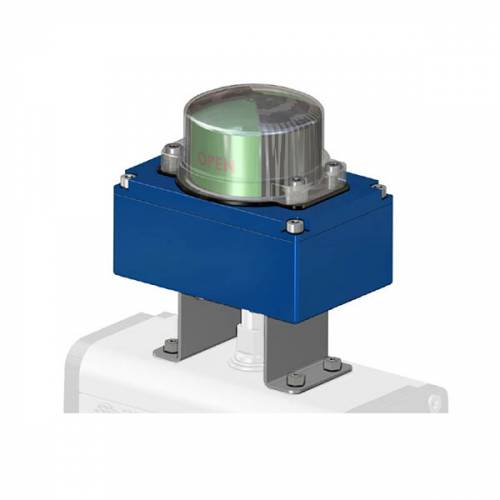

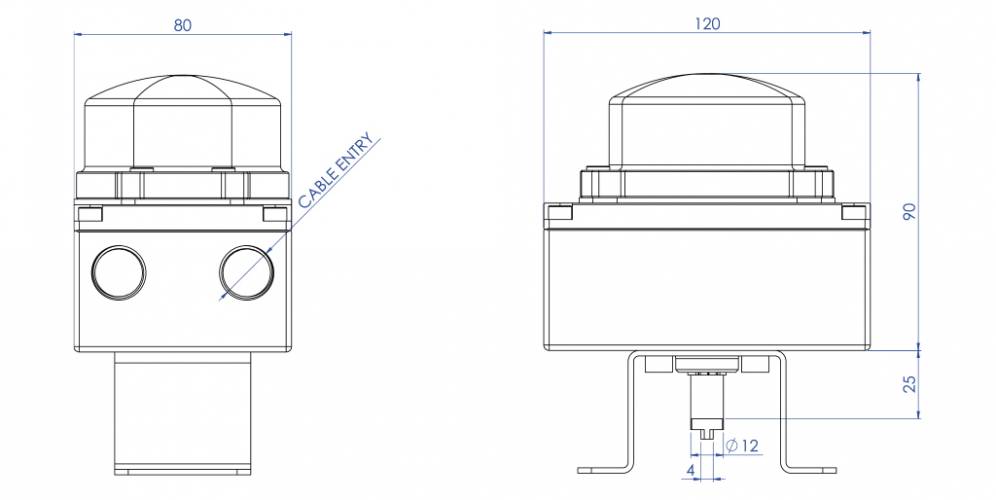

TECHNICAL FEATURES
- Made to easily verify the visual and electrical position of each valve even from long distances.
- Built according to VDI / VDE 3845 standards. (EN15714-3).
- It can contain two limit switches either mechanical "SPDT" or proximity.
- The cam of limit switch cannot slide since their regulation or other tools.
- The pre-wiring is realized means of numbered terminals: n°6 for the two microswitches, and extra poles for eventual solenoid wiring (see wiring diagrams).
- N. 2 threaded electrical connections for cable gland.
- Operating temperature:
from -40°C to + 80°C (standard);
from -25°C to +70°C for limit switch code "23" and "73";
from -25°C to +80°C for limit switch code "75".
- Protection rate: IP 67.
MATERIALS
- Body and cover: die-cast aluminum coated with polyester powder *.
- Indicator: UV-resistant and self-extinguishing polycarbonate class V0.
- Shaft: Stainless steel.
- Screws: stainless steel.
* On request also in stainless steel CF8M.
CERTIFICATIONS
- CE declaration of conformity on request.
- Up to SIL 3 Certified
TYPES OF LIMIT SWITCHES CONTAINED IN BOX KSSB - KSSF
CODE* | DESCRIPTION | VERSION | WIRING DIAGRAM |
---|---|---|---|
01 | SPDT Electromechanical microswitches with silver plated contacts (CHERRY) Max: 250 Vac 5A -24 Vdc 3A; Min: 250 Vac 50 mA - 24 Vdc 50 mA. (resisive load) | Standard | |
03 | SPDT Electromechanical microswitches SPDT with gold plated contacts (CHERRY) Max: 250 Vac 0,1 mA - 30 Vdc 0,5 mA | On request | |
1F | DPDT Electromechanical microswitches with silver plated contacts (each cam actuates 2 SPDT microswitches simultaneously) (CHERRY) Max: 250 Vac 5A - 24 Vdc 5A; Min: 24 Vdc 50 mA | On request | |
23 | 3-wire amplified proximity microswitches NO NBN4 12GM50 E2 P+F, PNP 10÷30 Vdc; 200 mA | On request | |
73 | 3-wire amplified proximity microswitches PNP NO P+F NBB2 V3 E2, 10÷30 VDC; 100 mA - opereting current 0 - 100 mA | On request | |
75 | 2-wire amplified proximity microswitches IFM IS 5026 5÷36 Vdc; 4÷200 mA | On request | |
T0 | 4-20 mA analog output. Supply voltage 13÷30 Vdc; linearity +/- 0,5% on full scale; direct or inverse actions; logic processor ASIC - CMOS. | On request |
CONNECTION BRACKET BETWEEN ACTUATOR AND LIMIT SWITCHES BOX
KSSB - KSSF
TYPE OF BRACKET* | DESCRIPTION |
---|---|

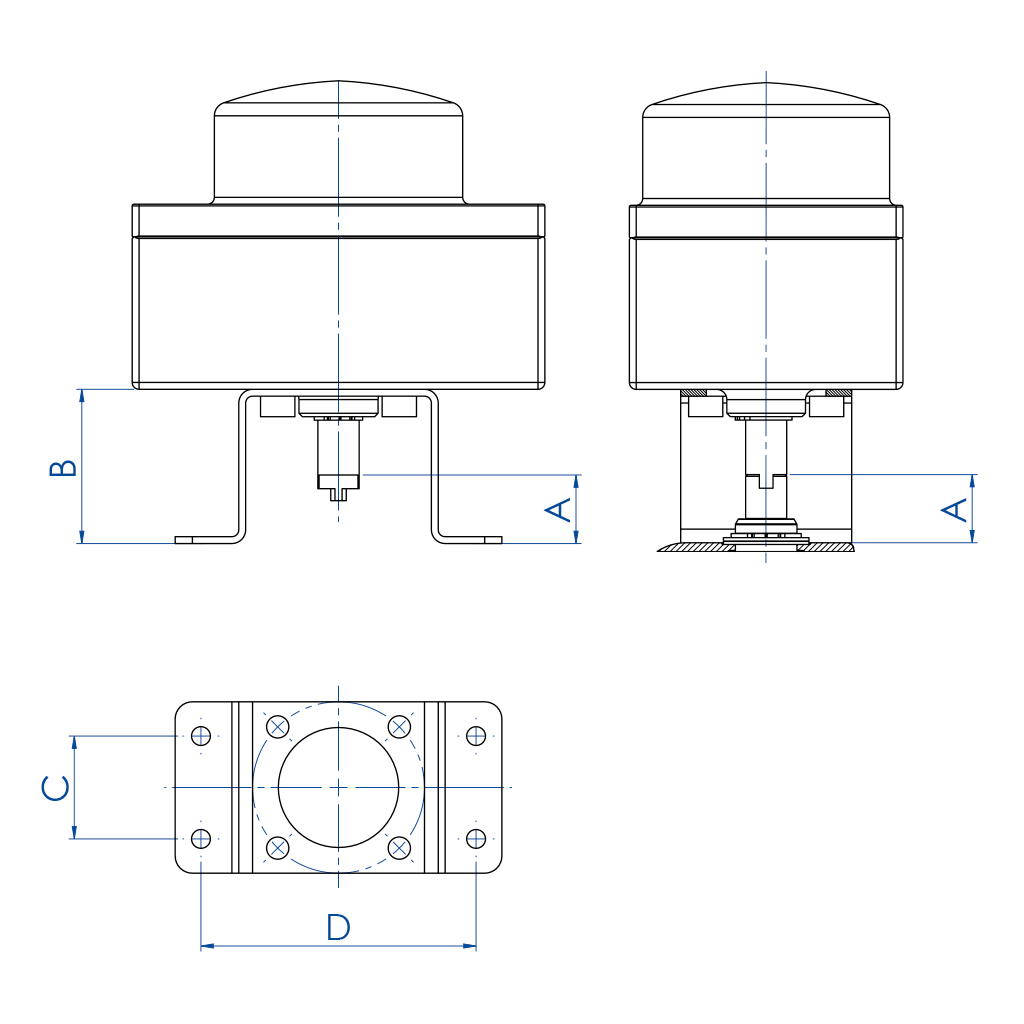

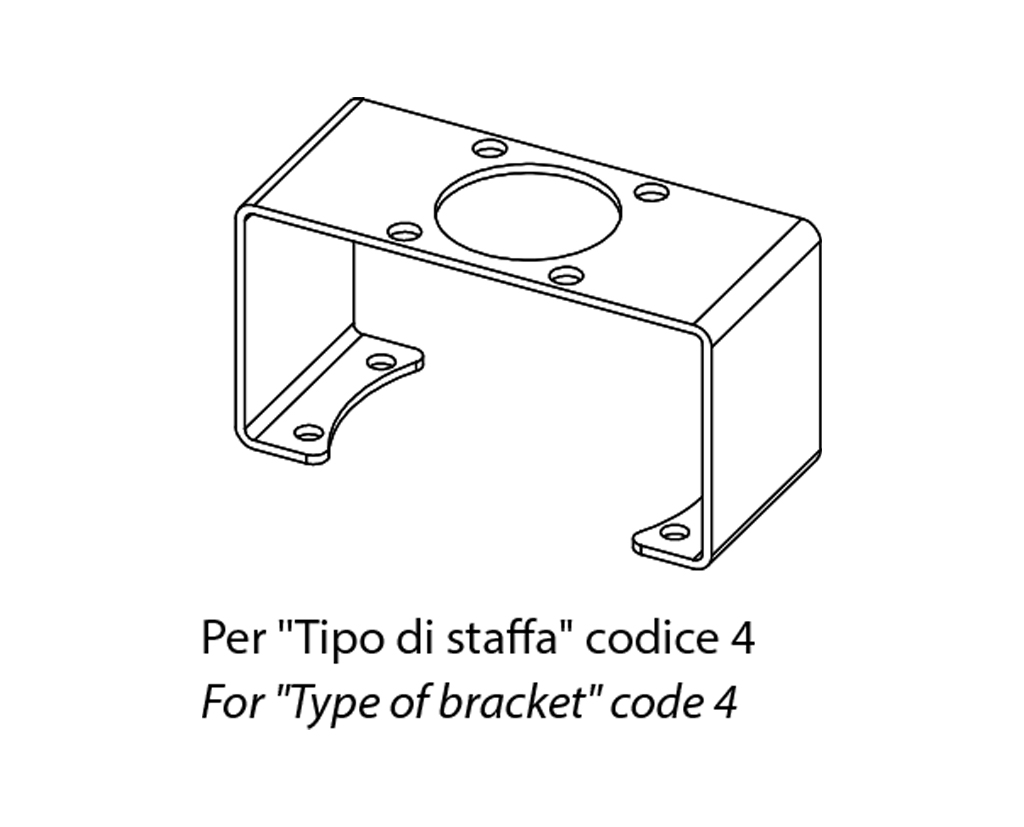

0 | NAMUR connection 25x50x20* (*20= height of the actuator shaft, dimension A as per picture) |
1 | NAMUR connection 30x80x20* (*20=height of the actuator shaft, dimension A as per picture) |
3 | NAMUR connection 30x80x30* (*30=height of the actuator shaft, dimension A as per picture) |
4 | NAMUR connection 30x80x30* (*30=height of the actuator shaft, dimension A as per picture) |
5 | NAMUR connection 30x130x30* (*30=height of the actuator shaft, dimension A as per picture) |
FOR ALUMINIUM ACTUATORS | ||||
---|---|---|---|---|
SIZE | DAN15÷DAN120 SRN15÷SRN60 | DAN180÷DAN960 SRN90÷SRN480 | DAN1440÷DAN1920 SRN720÷SRN960 | DA2880÷DA8000 SR1440÷SR4000 |
Code | KCPN1015 | KCPN1060 | KCPN2060 | KCPN1A04 |
Type of bracket | 1 | 3 | 4 | 5 |
A (mm) | 20 | 30 | 30 | 30 |
B (mm) | 45 | 55 | 55 | 55 |
C (mm) | 30 | 30 | 30 | 30 |
D (mm) | 80 | 80 | 80 | 130 |
FOR STAINLESS STEEL ACTUATORS | ||||
---|---|---|---|---|
SIZE | DA15**÷DA30** SR15** | DA60 SR30 | DA120÷DA960 SR60÷SR480 | DA1440÷DA1920 SR720÷SR960 |
Code | KCPN0015 | KCPN1060 | KCPN2060 | |
Type of bracket | 0 | 0 | 3 | 4 |
A (mm) | 20 | 20 | 30 | 30 |
B (mm) | 45 | 45 | 55 | 55 |
C (mm) | 25 | 25 | 30 | 30 |
D (mm) | 50 | 50 | 80 | 80 |
BOX CABLE ENTRIES THREAD | ||
---|---|---|
Type of cable gland thread*** | Description | Notes |
1 | 1/2” NPT | ON REQUEST |
2 | M 20x1,5 | STANDARD |
