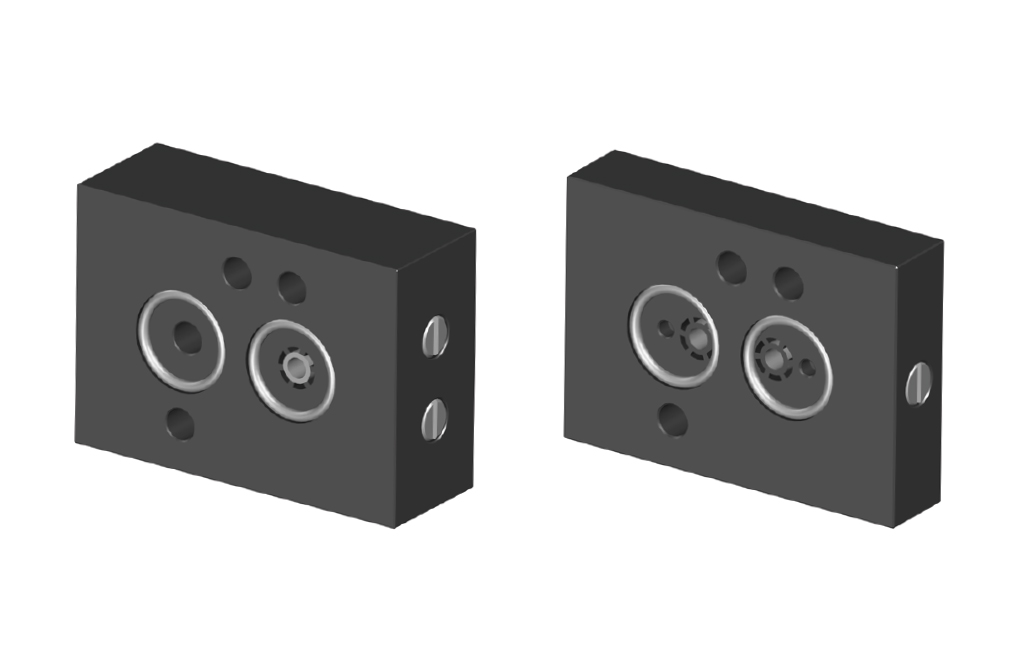

TECHNICAL FEATURES - Model 1: for 5/2 way solenoid valves. To regulate the forward and backward stroke of a double acting pneumatic actuator. - Model 2: for 3/2 way solenoid valves. To regulate the forward and backward stroke of a spring return pneumatic actuator. - Standard: NAMUR 1/4 - Operating pressure: 1-10 bar (14,5-145 PSI) - Weight: Model 1 = 140 gr (0,308 Lb) - Model 2 = 220 gr (0,485 Lb)
Use following screws to mount with solenoids ER8188 and ER8581/ER8681: - Version 1 = M5 x 55 - Version 2 = M5 x 65

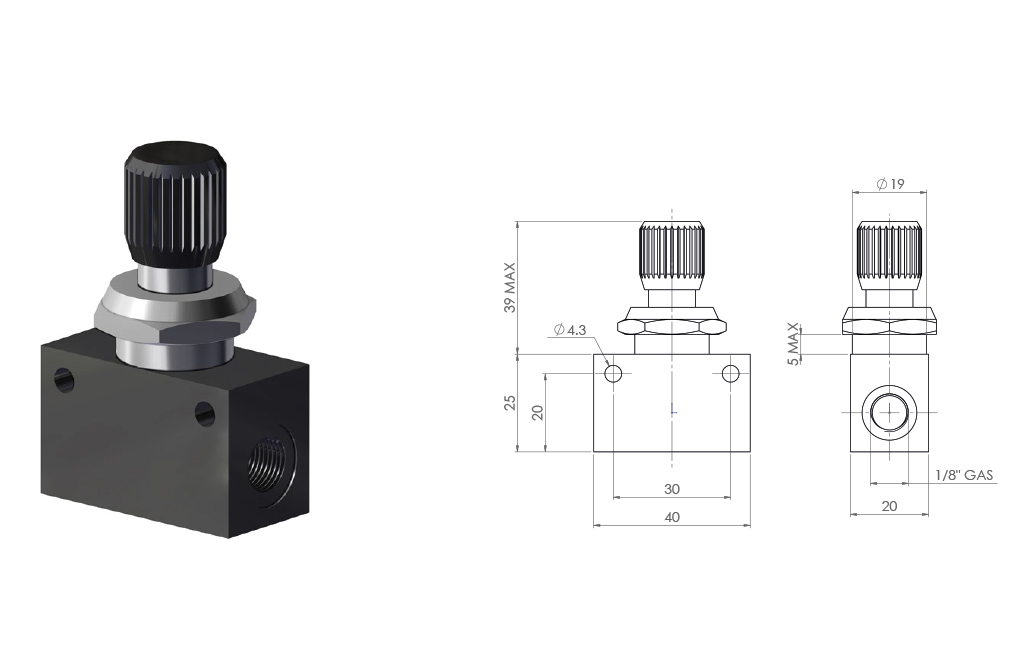

FLOW CONTROL G1/8"
TECHNICAL FEATURES - Pneumax monodirectional model 6.01.18/4 - Pneumax bidirectional model 6.01.18/5 - Connections 1/8” - Max working pressure 10 bar - Working temperature -5 ÷ +70°C - Media: Filtered air - Bore diameter 3mm - Weight 0,1kg

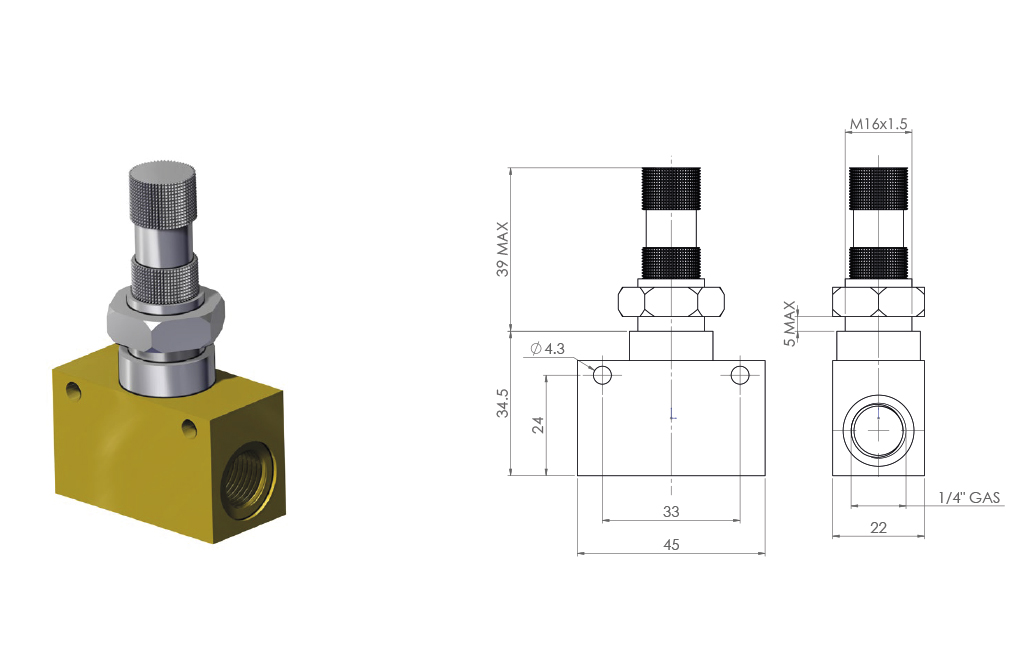

FLOW CONTROL G 1/4”
TECHNICAL FEATURES • Pneumax monodirectional model 6.01.14 N • Pneumax bidirectional model 6.01.14/1 N • Connections 1/4" • Max working pressure 10 bar • Working temperature -5 ÷ +70°C • Media: aria filtrata • Bore diameter 7mm • Weight 0,105 kg
