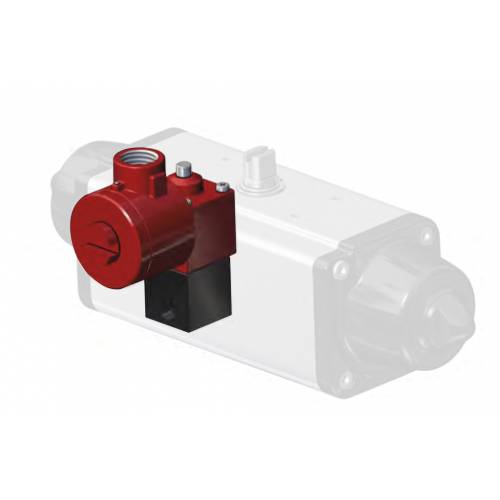

NC 3/2 solenoid valve 1/8” with ATEX II2GD Exd IIC T4-T6 coil

FOR SRN15÷SRN60 ACTUATORS

TECHNICAL FEATURES
- 3/2 NC Solenoid valve direct function
- Protection with connector: IP65
- Capacity: 62 l / min at 6 bar Ap 1 bar
- Pneumatic connections: 1/8 "ISO 228 (for SRN15-SRN60)
- Electrical connection M20x1,5
- Manual control
- Solenoid valve pressure: 10 bar MAX
- Ambient temperature: from -20°C to 60°C

MATERIALS
- Body and caps: DURAL aluminum; 316 stainless steel on request
- Seals: NBR
- Spring: stainless steel
- Spire: copper clad class H

CERTIFICATES
- ATEX II2GD Exd IIC T4-T6
- IECEX, NEPSI, EAC CU-TR on request
