WHEN THE POSITIONER IS PURCHASED MOUNTED ON OMAL S.P.A. PNEUMATIC ACTUATOR, YOU WILL RECEIVE IT ALREADY CALIBRATED; OTHERWISE THE SETTING IS UP TO THE CUSTOMER. OMAL S.P.A. WILL NOT BE RESPONSIBLE FOR IT.
TECHNICAL FEATURES - Intelligent Positioner SRD991, designed to control pneumatic actuators. Simple to configure thanks to Autostart function. HART communication. As option PROFIBUS-PA / FOUNDATION Fieldbus H1 according to FISCO / FoxCom. The version with feedback signal, includes a position transmitter for the continuous valve monitoring (4-20 mA). - Epoxy painted aluminium case. - Working temperature: from -40°C to 80°C - VERSION: Single / Double acting - INPUT / COMUNICATION: Signal 4-20 Ma, and HART protocol ADDITIONAL INPUTS/OUTPUTS: Not included - INTERNAL LIMIT SWITCHES : Not included - CABLE ENTRY: M20x1.5, complete of Cable Gland - ELECTRICAL CLASSIFICATION: II 2 G EEx ia/ib IIB/IIC T4/T6 according to ATEX - Protection: IP65 (IP66 on request)
INCLUDED ACCESSORIES - “Spool valve” pneumatic amplifier - Manifold complete with manometers, with connection 1/4-18 NPT - Mounting kit for rotary actuator, according to VDI/VDE 3845 - LCD Display with 3 languages menu: English, German, Italian (other on request)
CERTIFICATIONS - Declaration of conformity ATEX II 2 G EEx ia/ib IIB/IIC T4/T6 + others on request.

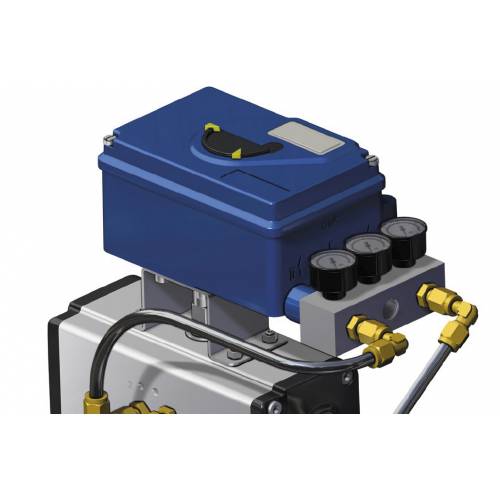

FOXBORO ECKART-SRD991
NOTES Pneumatic and electro-pneumatic positioners are supplied up on request adjusted and are mounted using covered aluminium pipes and rapid connectors.
For any other information, see the use and maintenance manual.

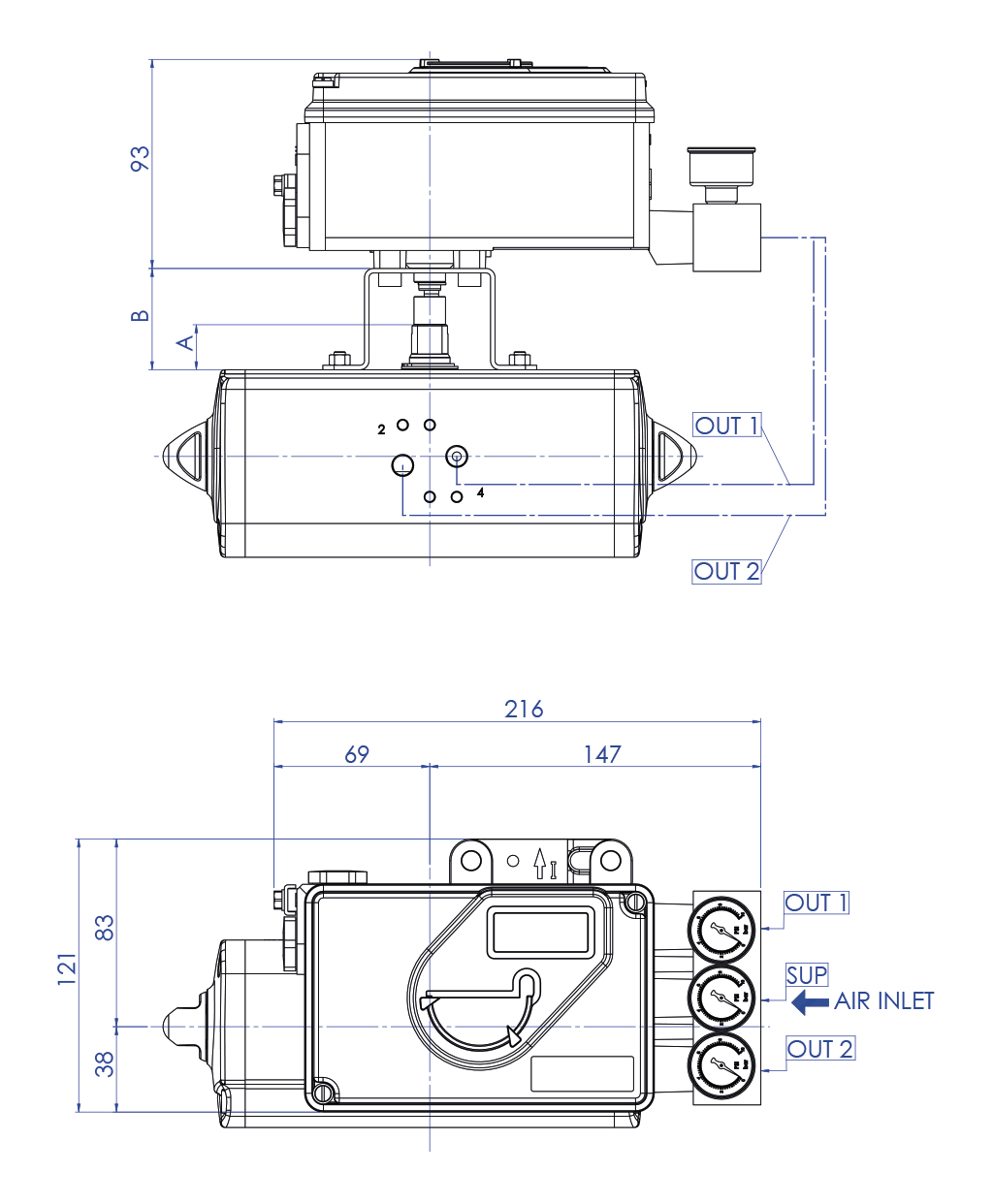

Positioner with Double Acting actuator

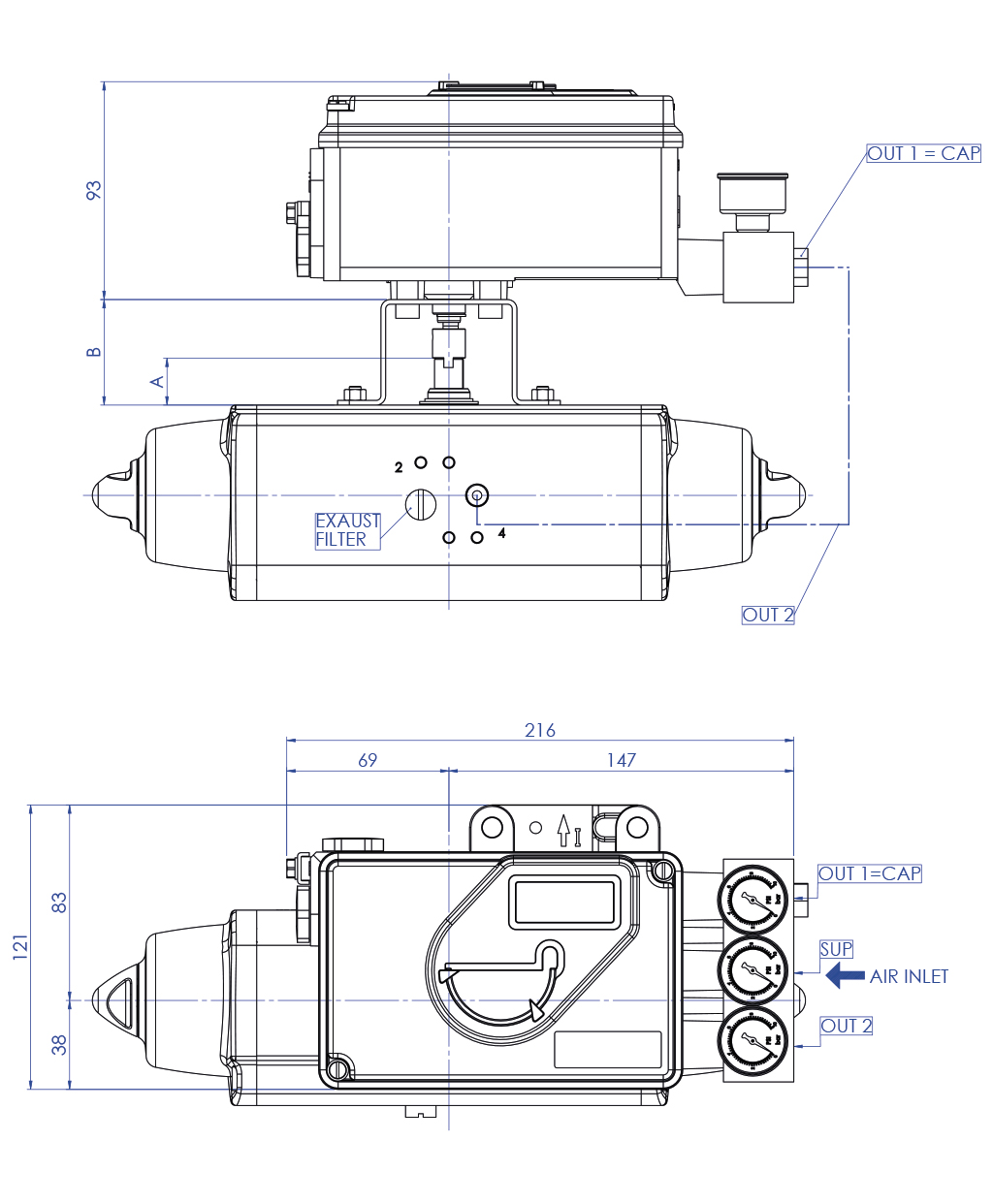

Positioner with Spring Return actuator
For dimentions A and B see page 75 of the accessories catalogue.
